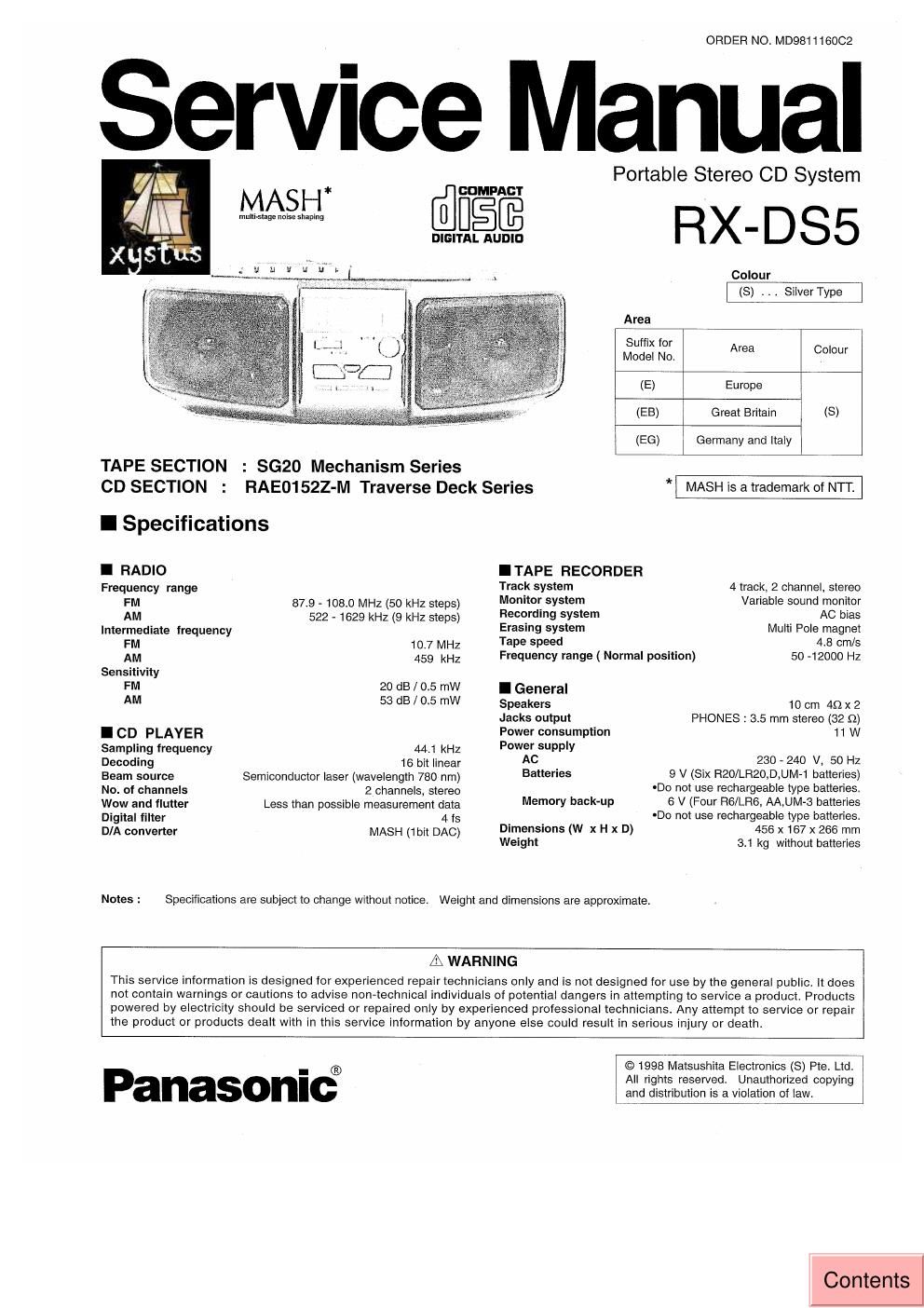

Page 1

ORDER NO. MD981116OC2

ervice Manual

Portable Stereo CD System

MASH mined RX-DSS

powwow. .

Colour
(3) -

ver Type

Area

Suffix for

Model No. Area Colour
(E) Europe
(EB) Great Britain (3)
(EG) Germany and Italy

TAPE SECTION : SG20 Mechanism Series
CD SECTION : RAE01522-M Traverse Deck Series * MASH isatrademark of NW.

I Specifications

I RADIO I TAPE RECORDER
Frequency range Track system 4 track, 2 channel. stereo
FM 87.9 - 108.0 MHz (50 kHz Steps) Monitor system Variable sound monitor
AM 522 - 1629 kHz (9 kHz steps) Nerd-n9 system . AC bias
Intermediate frequency Erasing SVStem Multi Pole magnet
FM 107 MHZ Tape speed 4.8 cm/s
AM 459 kHz Frequency range (Normal position) 50 -12000 Hz
Sensitivity
FM 20 dB / 0.5 mW I General
AM 53 dB / 0-5 mW Speakers 10 cm 49 x 2
Jacks output PHONES : 3.5 mm stereo (32 Q)
I CD PLAYER Power consumption 11 w
Sampling lrequency 44_1 kHz Power supply
Decoding 16 bit linear AC . . 230 - 240 V. 50 Hz
Beam source Semiconductor laser (wavelength 780 nm) Batteries 9 V (S'X R201LFt20.D,UM-1 bae"'_esi
No. of channels 2 channels, stereo -Do not use rechargeable type batteries.
Wow and flutter Less than possible measurement data Memory baCK'UP 6 V [Four R6/LR6, AA-UM'3 batteries
Digital finer 4 15 -Do not use rechargeable type batteries.
DIA converter MASH (1 bit DAC) Dimensions (W x H x D) 456 x 167 x 266 mm
Weight 3.1 kg without batteries
Notes : Specifications are subject to change without notice. Weight and dimensions are approximate.
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public, it does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 1998 Matsushita Electronics (8) Pte. Ltd.
All rights reserved Unauthorized copy 9
a oia on of law.

Panasonic?

Contents

Page 2

RX-DSS

I Contents

0 ACCESSORIES ..................
- HANDLE PRECAUTIONS FOR TRAVERSE DECK ,
' PRECAUTION OF LASER DIODE.
. CAUTION FOR AC MAINS LEADS
0 LOCATION OF CONTROLS ..........
- PRESETI'ING RADIO BROADCASTS,
0 LISTENING TO RADIO BROADCASTS
LISTENING TO CDS .........................
° LISTENING TO TAPES .........................
' BEFORE RECORDING & RECORDINGS
0 OPERATION CHECKS ......................
. MEASUREMENTS AND AJUSTMENTS
. TERMINAL GUIDE OF ICs TRANSISTORS AND DIODES

I Accessories

AC power cord for
United Kingdom

TERMINAL FUNCTION OF ICs
- SCHEMATIC DIAGRAM ........

° PRINTED CIRCUIT BOARD ....
0 WIRING CONNECTION DIAGRAM.
° TROUBLESHOOTING GUIDE
' MECHANISM PARTS LIST....
' MECHANISM PARTS LOCATION
0 CABINET PARTS LOCATIONS
- REPLACEMENT PARTS LIST
' RESISTORS & CAPACITORS ................
- PACKING MATERIALS & ACCESSORIES ..
- PACKAGING ............................................................................ 36

AC power cord for
Others

I Handling Precautions for Traverse Deck

The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused by static electricity of clothes or human body.
So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).

- Handling 01 traverse deck (optical pickup)
1. Do not subject the traverse deck (optical pickup) to static electricity
as it is extremely sensitive to electrical shock.
2. The short land between the No.4 (LD) and N05 (GND) pins on the
flexible boards (FPC) is shorted with a solder buildup to prevent
damage to the laser diode.

To connect to the PC board, be sure to open by removing the
solder build-up, and finish the work quickly,
3. Take care not to apply excessive stress to the flexible board (FFC
board).
4. Do not turn the variable resistor (laser power adjustment). It has
already been adjusted.

- Grounding tor electrostatic breakdown prevention
1. Human body grounding

Use the anti-static wrist strap to discharge the static electricity
from your body.
2. Work table grounding

Put a conducive material (sheet) or steel sheet on the area where
the traverse deck (optical pickup) is placed, and ground the sheet.

Caution:

The static electricity of your clothes will not be grounded through the
wrist strap. So, take care not to let your clothes touch the traverse deck
(optical pickup).

FFC board Lens (Do not touch)

(Handle it carelully)

Variable resistor
(Do not tum)

Wrist strap
(Anti-staticbracelet) /

conduct electricity

1M0
