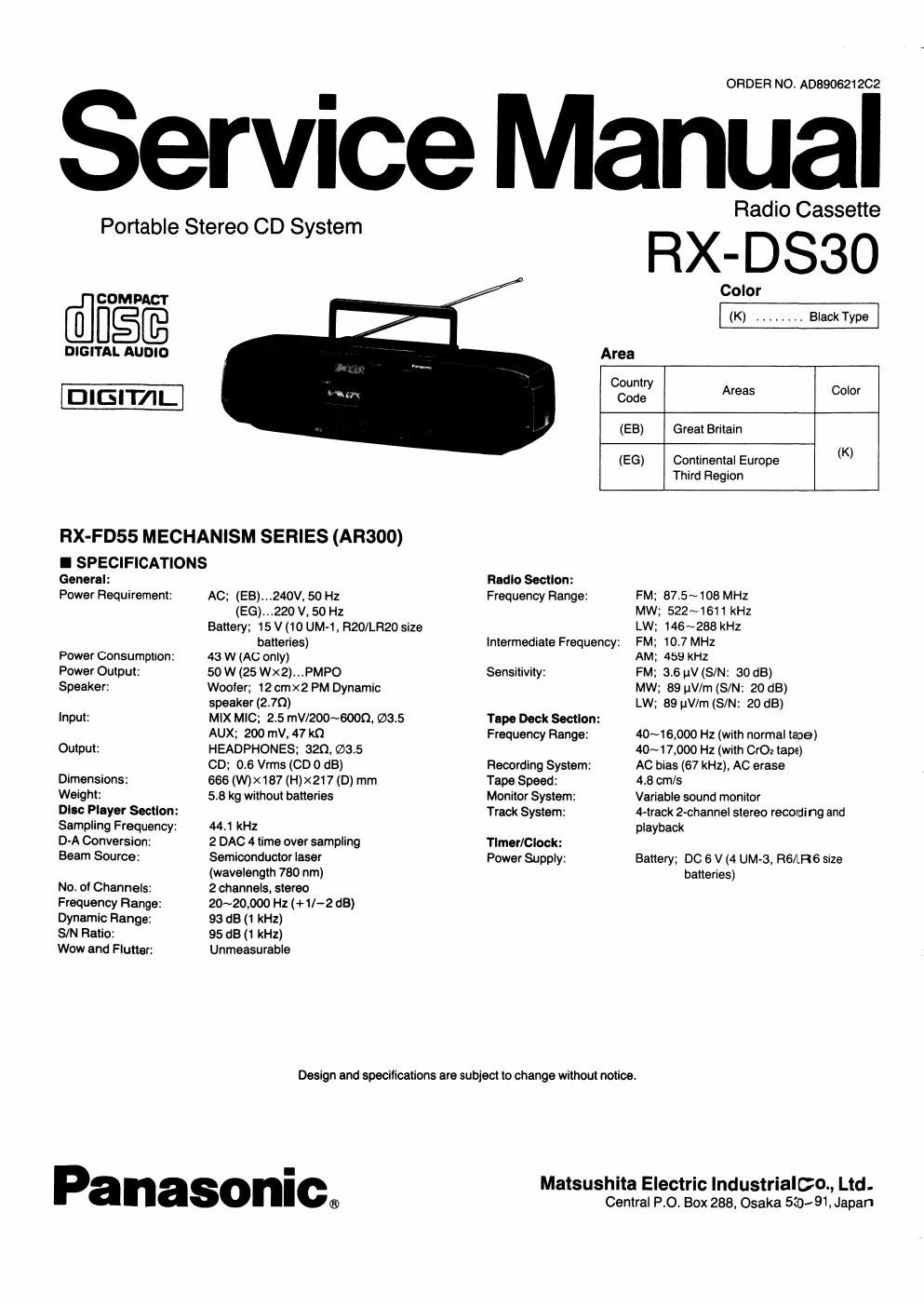

Page 1

ORDER NO. A0890621202

ervice Manual

Radio Cassette

Portable Stereo CD System R X D S 3 O
COMPACT c°'°'
@ n§@ (K) ........ Black Type
DIGITAL AUDIO Area
08:3? Areas Color

(EB) Great Britain

(EG) Continental Europe (K)
Third Region
RX-FDSS MECHANISM SERIES (AR300)
I SPECIFICATIONS
General: Radio Section:
Power Requirement: AC; (EB)...240V, 50 Hz Frequency Range: FM; 87.5~108 MHz
(Ee)...220 v.50 Hz MW; 522~1611 kHz
Battery; 15 V (10 UM-1, R20/LR20 size LW: 146~238 kHZ
batteries) Intermediate Frequency: FM: 10.7 MHz

Power Consumption: 43 W (AC only) AM: 459 kHz
Power Output: 50 W (25 WXZ). . .PMPO Sensitivity: FM; 3.6 uV (SIN: 30 dB)
Speaker: Woofer; 12cmx2 PM Dynamic MW; 89 uV/m (S/N: 20 dB)

speaker (2.70) LW; 89 uV/m (S/N: 20 dB)
Input: MIX MIC; 2.5 mV/200~6000, 03.5 Tape Deck Section:

AUX; 200 mV, 47 k0 Frequency Range: 40~16.000 Hz (with normal tape)
Output: HEADPHONES: 320. (33.5 40~17.000 Hz (with CrOz tape)

CD; 0.6 Vrms (CD 0 dB) Recording System: AC bias (67 kHz), AC erase
Dimensions: 666 (W) X 1 87 (H) x21 7 (D) mm Tape Speed: 4.8 om/s
Weight: 5.8 kg without batteries Monitor System: Variable sound monitor
Disc Player Section: Track System: 4-track 2-channel stereo recording and
Sampling Frequency: 44.1 kHz playback
D-A Conversion: 2 DAC 4 time over sampling Timer/Clock:
Beam Source: Semiconductor laser Power Supply: Battery; DC 6 V (4 UM-S, RGILRG size

(wavelength 780 nm) batteries)
No. of Channels: 2 channels, stereo
Frequency Range: 20~20,000 Hz (+1l-2 (13)
Dynamic Range: 93 dB (1 kHz)
S/N Ratio: 95 dB (1 kHz)
Wow and Flutter: Unmeasurable

Design and specifications are subject to change without notice.

- - - -
Panasomc. Ma"3;.t5L°.3ELEi253:§:£'£&:.';§2a

Page 2

RX-DS30

CAUTION:
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS 0R ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

LOCATION OF CONTROLS

I TUNER/GENERAL CONTROLS

0 Speakers (12 cm, 2.70)

9 Tuning Indicator (TUNING)

9 Multi Display

0 Preset Memory Button (PROGRAM)
9 Preset Tuning Buttons

6 Tuning Buttons (TUNING)

0 Volume Control (VOLUME)

0 AC Connection Indicator

9 Function Selectors and Indicators
(TAPE/TUNERICD/AUX)
TUNER can also be used Ior Band Selector.

0 Headphones Jack (PHONES) ((33.5, 320)
0 Tone Control (TONE)
Q XBS Level Control (XBS LEVEL)

® Operation Switch and Indicator (OPERATION)
The main source can also be turned on by pressing the
Function Selector.

0 FM Mode Selector/Beat Proot Switch
(FM MODE/DP)

I co CONTROLS I

G Numeric Buttons
a Disc Compartment Cover
0 Repeat Button (REPEAT)

® Skip/Search Buttons
(l

0 Pause/Edit Pause Button (U U/EP)
® CD Eject Button (5. CD EJECT)
0 Play/Stop Button (DID)

Q Cancel Button (CANCEL)

® Program Button (PROGRAM)

| DECK CONTROLS J

m Cassette Compartment

O Reverse Playback Button and Indicator (<1)
O Stop Button (El)

@ Forward Playback Button and Indicator (D)
® Fast Buttons (<

@ ATLS Button and Indicator (-)

® Rec Pause Button and Indicator (OH 1])

a) Eject Button (5 EJECT)

9 Reverse Mode Selector (REVERSEMODE)
