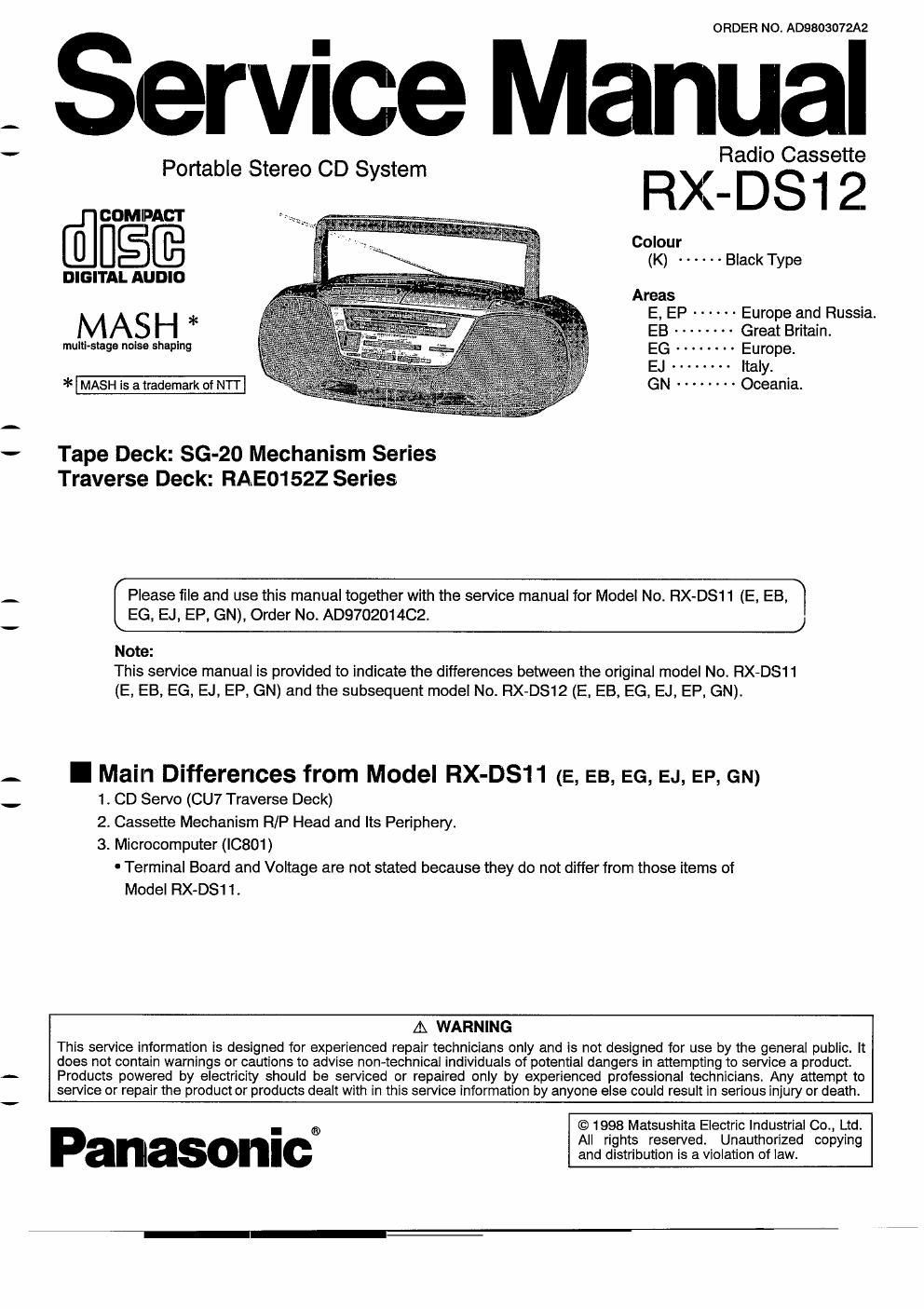

ORDER NO. AD9803072A2

Service Manual

Radio Cassette

coMIMZortable Stereo CD ystem RX- D S 1 2
disc

Colour
(K) ~~~~~~ Black Type
DIGITAL AUDIO
Areas
* E, EP ------ Europe and Russia.
M A S H EB -------- Great Britain.
mum-stage nolso shaping EG ........ Europe.
E J ........ Italy.
*- GN ------- Oceania-
v Tape Deck: SG-20 Mechanism Series
Traverse Deck: RAE01522 Series
- Please ﬁle and use this manual together with the service manual for Model No. RX-DSH (E, EB, 1
EG, EJ, EP, GN), Order No. AD9702014C2. j

Note:
This service manual is provided to indicate the differences between the original model No. RX-DS11
(E, EB, EG, EJ, EP, GN) and the subsequent model No. RX»DS12 (E, EB, EG, EJ, EP, GN).

- I Main Differences from Model RX-DS11 (E, EB, EG, EJ, EP, GN)
' 1. CD Servo (CU7 Traverse Deck)
2. Cassette Mechanism R/P Head and Its Periphery.
3, Microcomputer (I0801)
- Terminal Board and Voltage are not stated because they do not differ from those items of
Model Fix-D81 1.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product,
A Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
