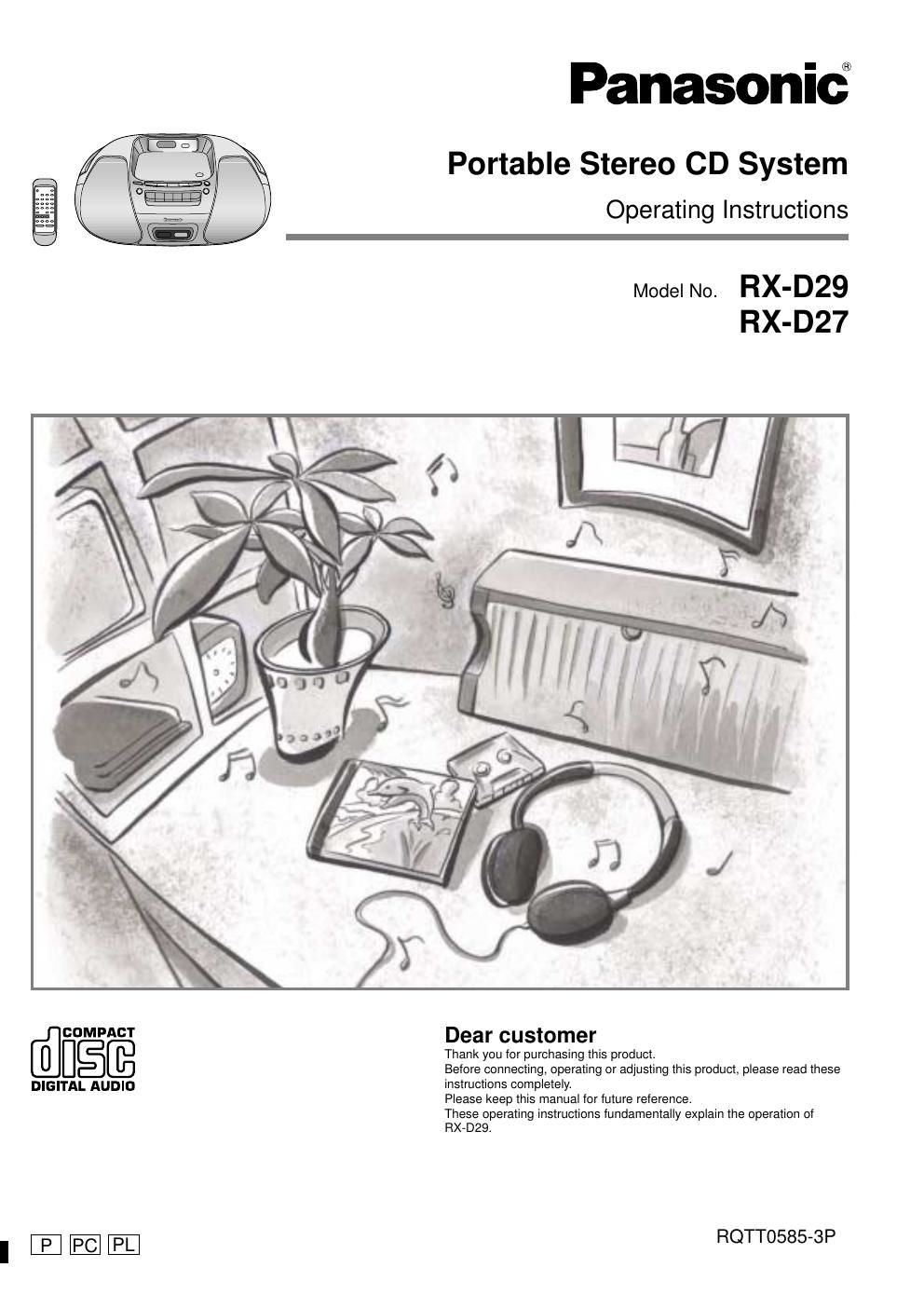

Panasonic rx d 27 owners manual
This is the 12 pages manual for panasonic rx d 27 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic rx d 27 owners manual (Ocr-read)
Page 1
2 RQTT0585 IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Use of batteries - Align the poles (+ and –) properly when inserting the batteries. - Do not mix old and new batteries or different types of batteries. - Do not recharge ordinary dry cell batteries. - Do not heat or disassemble the batteries. Do not allow them to contact flame or water. - If the unit is not going to be used for a long time or if the unit is to be powered exclusively by AC power, remove the batteries and store them in a cool, dark place. - Do not keep together with metallic objects such as necklaces. - Do not use rechargeable type batteries. - Do not use batteries if the covering has been peeled off. Mishandling of batteries can damage other items, cause damage to the unit, and may cause a fire through short-circuiting or electrolyte leakage. If electrolyte leaks from the batteries, consult your dealer. Wash thoroughly with water if electrolyte comes in contact with any part of your body. Listening caution Selecting fine audio equipment such as the unit youve just purchased is only the start of your musical enjoyment. Now its time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Associations Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing. We recommend you to avoid prolonged exposure to excessive noise. Sound can be deceiving. Over time your hearing comfort level adapts to higher volumes of sound. So what sounds normal can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level: - Start your volume control at a low setting. - Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. Once you have established a comfortable sound level: - Set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. CAUTION:TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. WARNING:TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons. CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the ap- pliance. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT- IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA The following mark and symbols are located on bottom of the unit. CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. Inside of product
Page 2
RQTT0585 3 Maintenance Cleaning inside the deck Clean the heads regularly to assure good quality playback and recording.Use a cleaning tape (not included). Care of the CD lens Clean the lens regularly to prevent malfunctions. Use a blower to remove dust and a cotton swab if it is extremely dirty. Recommended product: Lens cleaner kit (part no. SZZP1038C). Lens Please check and identify the supplied accessories. Use numbers indicated when ordering replacements or optional accessories from your Panasonic dealer. In the U.S.A. to order accessories, refer to Accessory Purchases on page 11. AC power supply cord (polarized) (RJA0065-1D)....................... 1pc. Remote control transmitter .......................................................... 1pc. For RX-D29:(EUR648280) For RX-D27:(EUR648278) Supplied accessories Table of contents IMPORTANT SAFETY INSTRUCTIONS ............................................ 2 Supplied accessories ....................................................................... 3 Maintenance ...................................................................................... 3 Power sources .................................................................................. 4 Concerning the remote control ....................................................... 4 Controls ............................................................................................. 5 Listening to radio broadcasts ................................... 6 Listening to CDs ......................................................... 7 Playing MP3 RX-D29 only.......................................................... 8 Listening to tapes ...................................................... 8 Recording ................................................................... 9 Setting the time .......................................................... 9 Using the timers ....................................................... 10 3D sound with the Sound Virtualizer ............................................. 10 Sound quality .................................................................................. 10 Using headphones .......................................................................... 11 Audio software ................................................................................ 11 Limited Warranty (ONLY FOR U.S.A.) ............................................ 11 Troubleshooting guide ................................................... Back cover Specifications .................................................................. Back cover THE FOLLOWING APPLIES ONLY IN THE U.S.A. CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any unauthorized changes or modifications to this equipment would void the users authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Service 1. Damage requiring service -The unit should be serviced by qualified service personnel if: (a) The AC power supply cord or AC adaptor has been damaged; or (b) Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or (d) The unit does not operate normally or exhibits a marked change in performance; or (e) The unit has been dropped or the cabinet damaged. 2. Servicing-Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel. 3. Replacement parts-When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards. 4. Safety check-After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition. Product information For product information or assistance with product operation: In the U.S.A., refer to Customer Services Directory on page 11. For assistance in the continental U.S.A. in obtaining repairs please ship the product to: Panasonic Services Company - Customer Servicenter Suite B 4900 George McVay Drive McAllen, TX 78503 In Puerto Rico contact the Panasonic Sales Company. Tel.(787) 750-4300 Fax.(787) 768-2910 When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached. IF REP AIR IS NEEDED DURING THE W ARRANTY PERIOD THE PURCHASER WILL BE REQUIRED T O FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICA TING DA TE OF PURCHASE, AMOUNT P AID AND PLACE OF PURCHASE. CUST OMER WILL BE CHARGED FOR THE REP AIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE. Also, the purchaser will be responsible for shipping the unit to the above address. In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you. The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference. MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE DEALER NAME DEALER ADDRESS TELEPHONE NUMBER User memo:
