Panasonic rx d 12 owners manual
This is the 8 pages manual for panasonic rx d 12 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic rx d 12 owners manual (Ocr-read)
Page 1

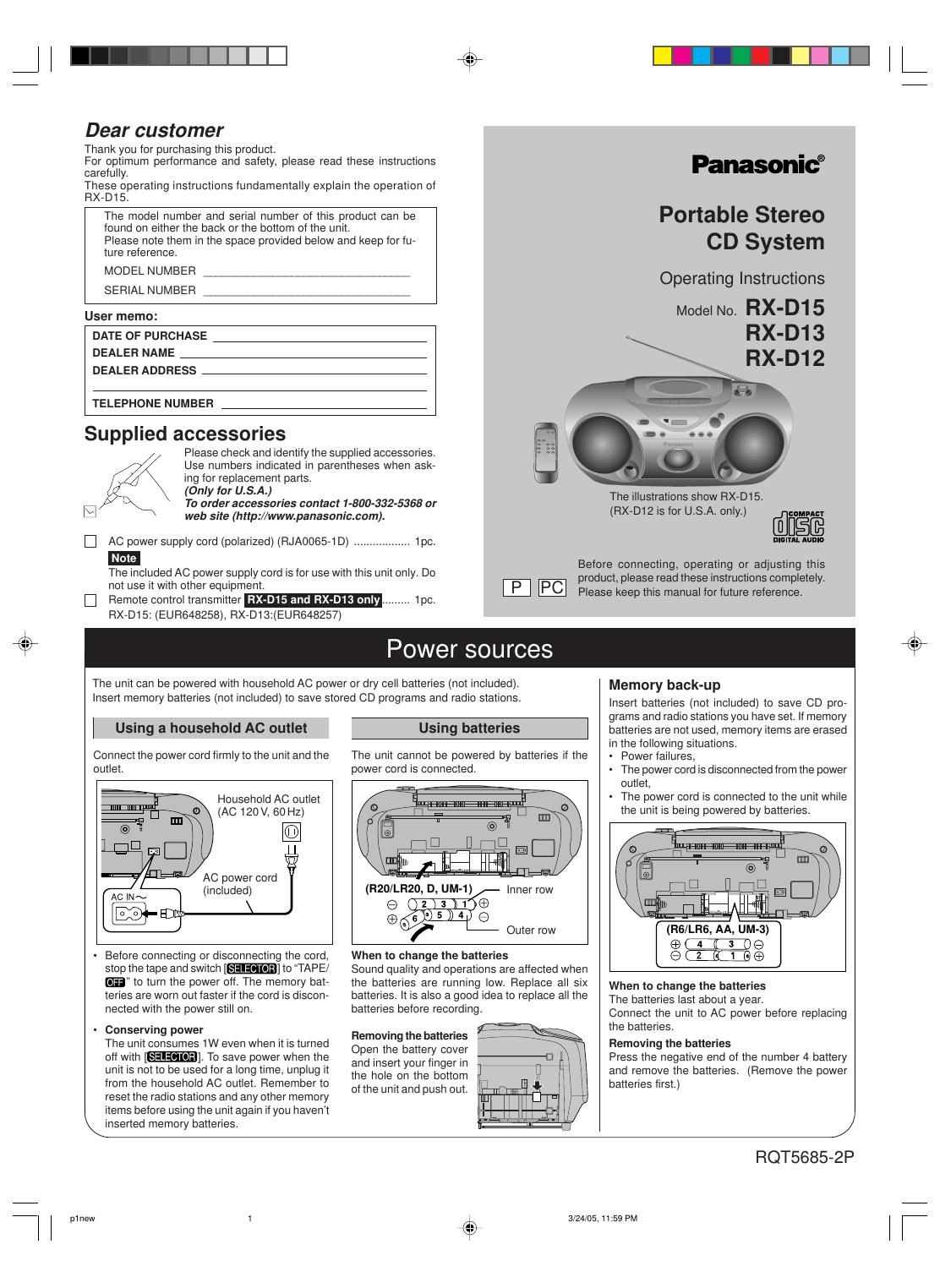

RQT56852 TUNER H.E.S. XBS CD Controls Main unit: (For RX-D15 and RX-D13 only) Remote control signal sensor (SENSOR) Tape play button ( PLAY) Rewind/review button ( REW/REV) Fast-forward/cue button ( FF/CUE) Stop/eject button ( / STOP/EJECT) Tune mode, CD play mode select button (TUNE MODE, CD PLAY MODE) Speaker (For RX-D15) Harmonic Enhancer Sound button (H.E.S. ) Press to give a clear vocal sound. Press again to turn off. (For RX-D13 and RX-D12) XBS button Press to boost the bass sound. Press again to turn off. Display Pause button ( PAUSE) CD lid open/close ( CD OPEN/CLOSE) Record button ( ) Function select switch ( ) CD lid Note These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily influenced by magnetism.Tape lidAuto scan button (AUTO SCAN)(For RX-D15 only) Center speaker Volume control ( ) CD play/pause, band select button ( , BAND)FM mode select/CD stop/ program clear button ( FM MODE/CLEAR)Band select button (BAND) CD play mode select button (CD PLAY MODE)FM mode select button (FM MODE) Preset channel select/ preset scan buttons ( PRESET TUNE ) Normal tuning/CD skip, search buttons ( , )CD play/pause button ( ) (The function is the same as on the main unit for RX-D13.) (For RX-D15 only) CD stop/program clear button ( ) XBS button ( XBS ) Press to boost the bass sound. Press again to turn off. Tuning/CD skip, search buttons ( , TUNE/CD) Memory button (MEMORY) Remote control: (The remote control is available only for RX-D15 and RX-D13.) The functions of the buttons without descriptions are the same as on the main unit. Battery installation Insert the batteries (not included) observing the correct polarities (e,d). Operation notes ¥ Do not place obstacles between the remote control signal sensor and the remote control unit. ¥ Do not expose the remote control signal sensor to direct sunlight or to the bright light of fluorescent light. ¥ Take care to keep the remote control signal sensor and end of the remote control unit free from dust. To prevent damage ¥ Never place heavy items on it. ¥ Do not disassemble or reconstruct it. ¥ Do not spill water or other liquids into it. Correct method of use Concerning the remote control Transmission window About 7 meters in front of the signal sensor Remote control signal sensor 1 2 R6, AA, UM-3 (For RX-D15 and RX-D13 only) p1-23/25/05, 4:08 AM 2
Page 2
RQT56853 1 Switch [ ] to ÒTUNERÓ. (Power comes on.) aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 2 Press [BAND] to select ÒFMÓ or ÒAMÓ. aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 3 (Omit this step if using the remote control) If Ò Ó is on the display, press [TUNE MODE] to clear it off . aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 4 Press [Ð/g] or [f/+] to tune to the desired station. The frequency changes one step each time a button is pressed. Automatic tuning Keep [Ð/ g] or [f/+] depressed and release when the frequency display starts to change. A station with good reception is automati- cally selected and the process stops. To stop automatic tuning, press [Ð/ g] or [f/+] again. Note Automatic tuning may stop on a frequency where there is no station if there is interference. Press [Ð/ g] and [f/+] to tune if this occurs. aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 5 Adjust the volume. To use auto scan You can search for a station by listening to all tuned-in stations for 8 seconds each. Preparation: Switch [ ] to ÒTUNERÓ. 1. Press [BAND] to select ÒFMÓ or ÒAMÓ. 2. Press [AUTO SCAN]. Auto scan starts. 3. Press [AUTO SCAN] when you find the desired station. Auto scan ends when it reaches the original frequency again. To stop during the process, press [AUTO SCAN]. To improve receptionFM: Extend the whip antenna and adjust its direction. AM: Adjust facing of the unit. If noise is excessive in the FM stereo mode Press [FM MODE]. (Ò Ó lights up.) Sound will be produced in monaural, but this also reduces noise. Press the button again to cancel. (Ò Ó goes out.) To receive FM broadcasts allocated in 0.1 MHz (Only from the main unit) First press [BAND] to select ÒAMÓ. Now, press and hold [BAND]. The dis- play changes in a few seconds to show the current lowest FM frequency. Continue to hold down the button. The minimum frequency changes and the step is changed at the same time. Changing the step erases all preset stations. Repeat the above to change the step back.Preset the stations (twelve FM and twelve AM) to make tuning simpler. 1 Tune to the desired station.Do steps 1Ð4 on the left. aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 2 Press [MEMORY]. aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 3 While Ò Ó and the frequency are flashing Press [MEMORY]. aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 4 While Ò Ó and the preset channel are flashing Press [Ð/g] or [f/+] to select the desired channel. (Remote control: [ 4 44 4 4] or [ 3 33 3 3]) aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 5 Press [MEMORY]. (This completes presetting.) aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 6 Repeat steps 1Ð5 to preset other stations. Note If Ò Ó goes off during presetting, return to step 2. 1 11 1 1 Press [BAND] to select ÒFMÓ or ÒAMÓ. aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 2 (Omit this step if using the remote control)Press [TUNE MODE] to display Ò Ó. aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa 3 Press [Ð/ g] or [f/+] to select the desired channel (1Ð12). (Remote control: [ 4 44 4 4] or [ 3 33 3 3]) To use preset scan You can search for a station by listening to all preset channels for 8 seconds each. 1. Do steps 1 to 2 above. For remote control, replace [Ð/ g] or [f/+] described below with [ 4 44 4 4] or [ 3 33 3 3]. 2. Press and hold [Ð/ g] or [f/+] until ÒPSÓ appears on the display. 3. Press [Ð/ g] or [f/+] when you find the desired channel. Preset scan ends after searching through each preset channel once. To stop during the process, press [Ð/ g] or [f/+]. Normal tuning Preset tuning Listening to radio broadcasts To listen to preset channels How to preset Indicates auto scan Indicates preset scan Ò Ó lights when an FM stereo broadcast is being received. Preset channel Preset channel 3 2 15 4 1 2 3 235 4 p3-43/25/05, 4:10 AM 3
