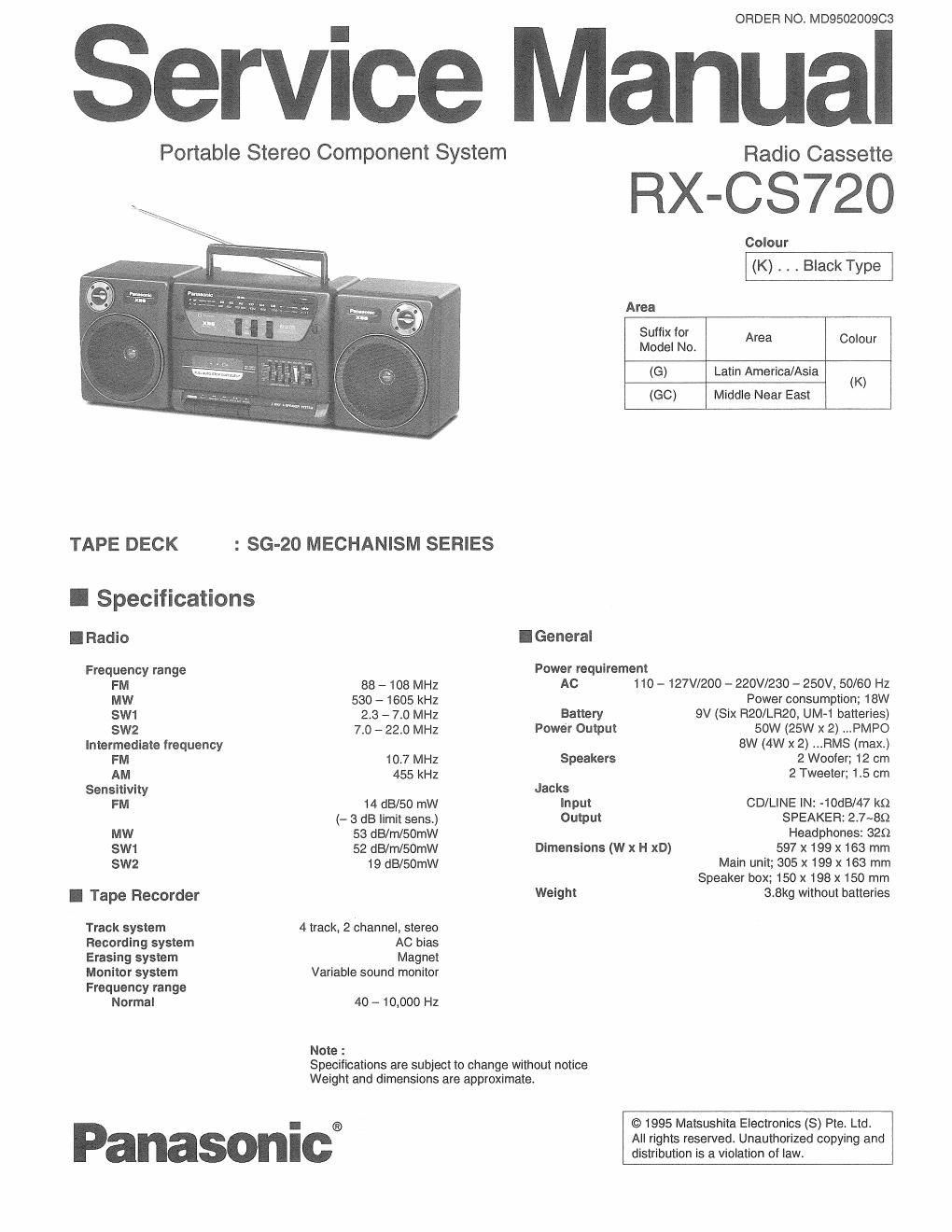

Panasonic rx cs 720 service manual

Page 2

RX-CS720

/! WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public, It does not contain
warnings orcautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electrictty should
be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this service
information by anyone else could result in serious injury or death.

I Contents

PAGE PAGE
0 BEFORE USE .................... ...2 - WIRE CONNECTION DIAGRAM. .16
' LOCATION OF CONTROL 2 8r 3 - MECHANISM PARTS LOCATION . 17
' DISASSEMBLY INSTRUCTIONS ......................................... 4 ~ 7 ' MECHANISM PARTS LIST ....................................................... 18
' TERMINAL GUIDE OF ICS, TRANSISTORS & DIODES .a7 0 CABINET PARTS LOCATION. .,..,19
' SCHEMATIC DIAGRAM ..... ' REPLACEMENT PARTS LIST. 20 8: 21
' MEASUREMENTS AND ADJUSTMENTS ........................ 11 - 13 ' RESISTORS & CAPACITORS .......................................... 21 ~ 23
- PRINTED CIRCUIT BOARD ............................................. 14 &15 ' PACKING MATERIALS AND ACCESSORIES..........................23

I Before Use

Be sure to disconnect the mains cord before adjusting the voltage selector.

Use a minus (-) screwdriver to set the voltage selector (on the rear panel) to the voltage setting for the area in which unit will be used. (If the power
supply in your area is 117 V or 120 V, set to the "127 V position.)

Note that this unit will be seriously damaged it this setting is not made correctly. (There is no voltage selector for some countries; the correct voltage
is already set.)

I Location of Controls
