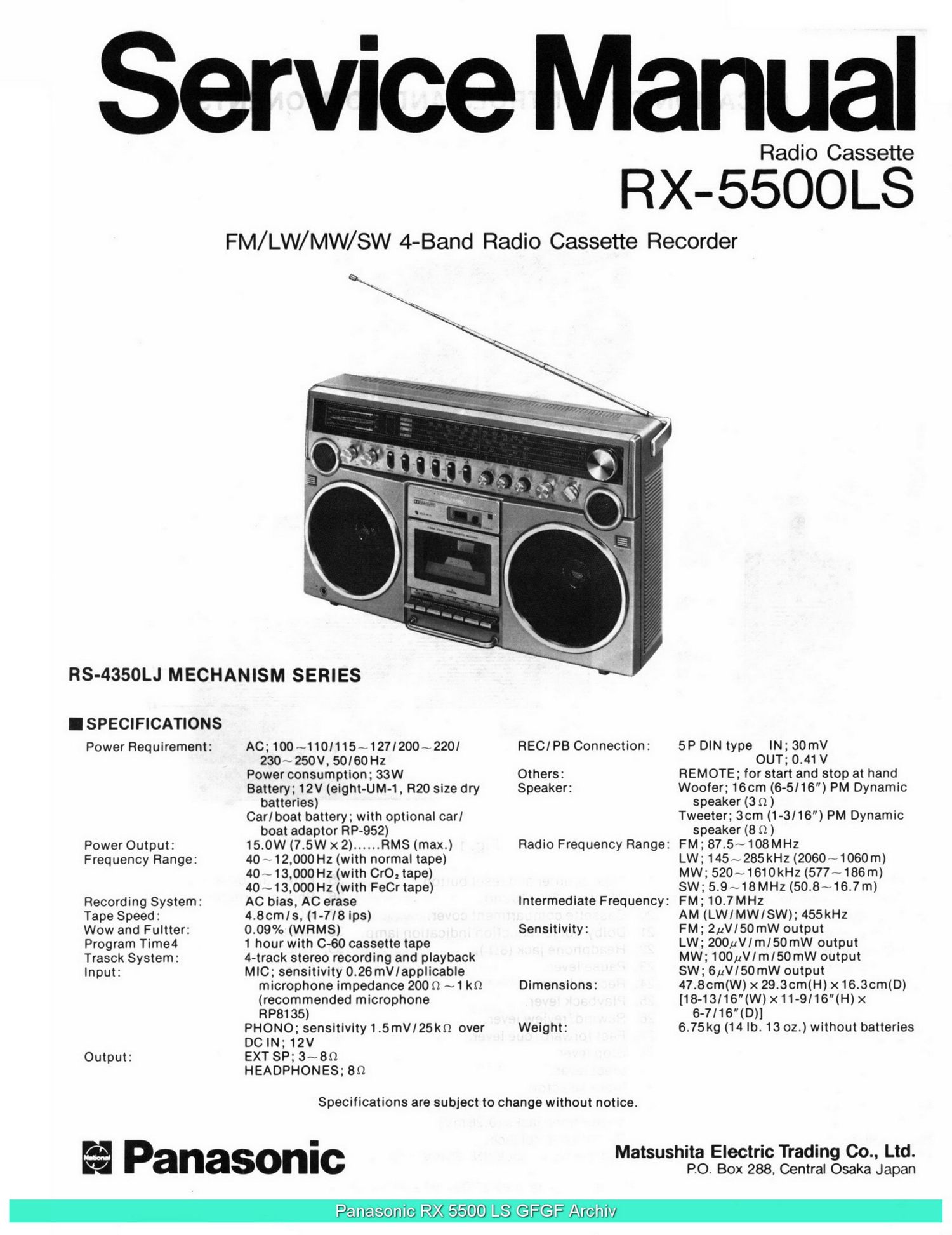

Page 1

Service Manual

Radio Cassette

RX- 5500LS

FM/LW/MW/SW 4-Band Radio Cassette Recorder

RS-4350LJ MECHANISM SERIES

I SPECIFICATIONS
Power Requirement: AC;100~110l115~127l200~220l REC/PB Connection: 5P DIN type IN; 30mV
230~250V, 50/60Hz OUT; 0.41 V
Power consumption; 33W Others: REMOTE; for start and stop at hand
Battery; 12V (eight-UM-1, R20 size dry Speaker: Woofer; 16cm (6-5/16") PM Dynamic
batteries) speaker (3 Q )
Car/boat battery; with optional car/ Tweeter; 3cm (1-3/16") PM Dynamic
boat adaptor RP-952) speaker (8 (2 )
Power Output: 15.0W(7.5Wx2) ...... RMS(max.) Radio Frequency Range: FM; 87.5~108MH2
Frequency Range: 40 ~12,000Hz (with normal tape) LW; 145~285 kHz (2060~1060 m)
40 ~13,000Hz (with CrO, tape) MW; 520~1610kHz (577~ 186m)
40~13,000Hz (with FeCrtape) SW; 5.9~18MHz (50.8~ 16.7 m)
Recording System: AC bias, AC erase Intermediate Frequency: FM; 10.7 MHz
Tape Speed: 4.8cmls, (1-7/8 ips) AM (LW/MW/SW); 455kHz
Wow and Fultter: 0.09% (WRMS) Sensitivity: FM; 2/1V/50 mW output
Program Time4 1 hour with C-60 cassette tape LW; 200uVlm/50 mW output
Trasck System: 4-track stereo recording and playback MW; 100/1V/ m/50 mW output
Input: MIC; sensitivity 0.26 mV/applicable SW; 6,11V/50 mW output
microphone impedance 2000 ~1kQ Dimensions: 47.80m(W)x29.3cm(H)x16.30m(D)
(recommended microphone [18-13/16" (W) x 11-9/16(H) x
RP8135) 6-7/16"(D)]
PHONO; sensitivity 1.5 mV/25kn over Weight: 6.75 kg (14 lb. 13 oz.) without batteries
DC IN; 12V
Output: EXT SP; 3~80

HEADPHONES; 80

Specifications are subject to change without notice.

(.22.. ' Matsushita Electric Trading Co., Ltd.
Panasonlc PO. Box 288, Central Osaka Japan
