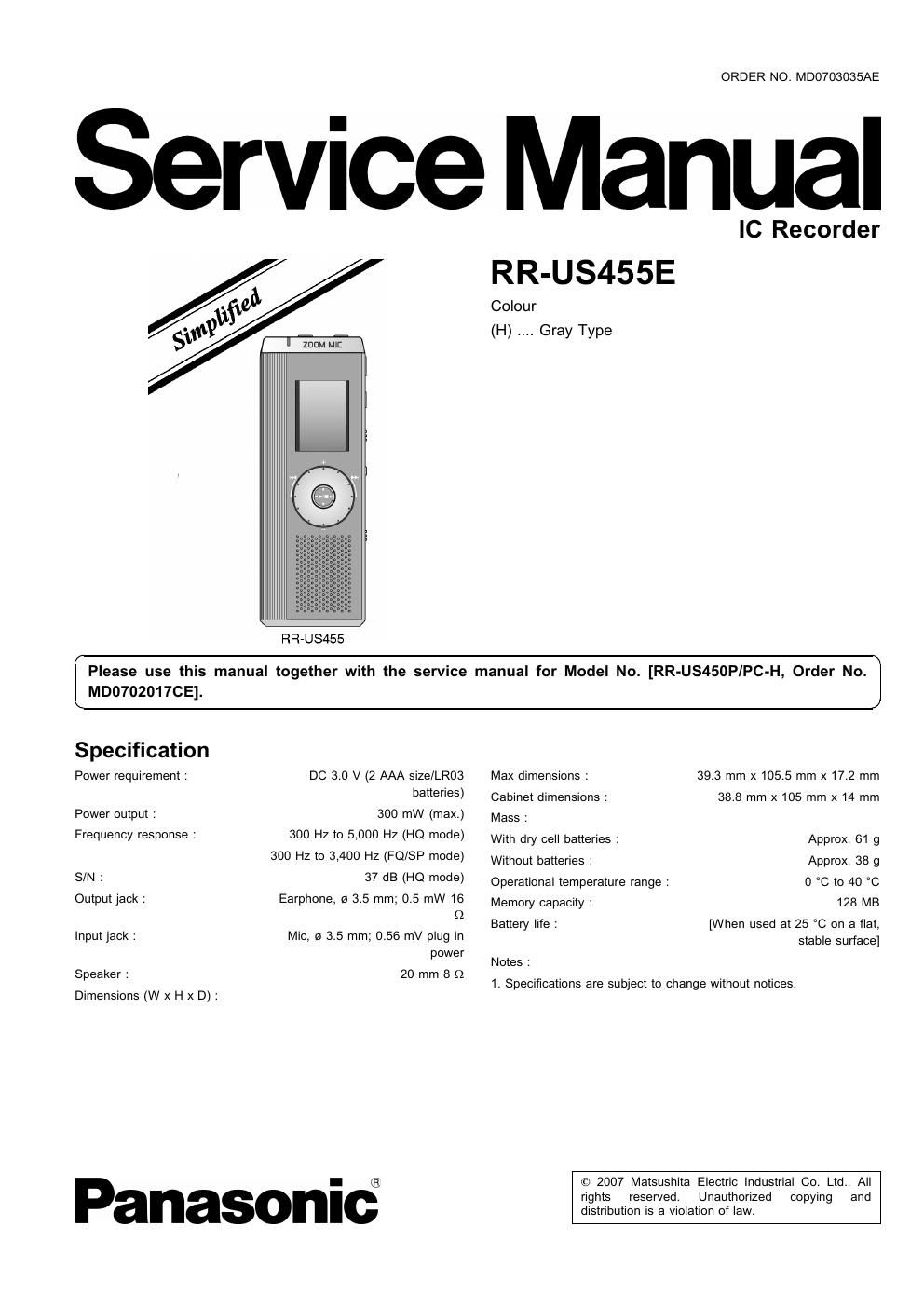

Panasonic rr us 455 e service manual
This is the 21 pages manual for panasonic rr us 455 e service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic rr us 455 e service manual (Ocr-read)
Page 1
1 Safety Precautions 3 1.1. GENERAL GUIDELINES 3 1.2. Protection Circuitry 3 1.3. Safety Part Information 3 2 Accessories 4 3 Operating Procedures 5 3.1. Components of IC Recorder 5 3.2. Test Mode 6 4 Assembling and Disassembling 12 4.1. Notes 12 4.2. Disassembly flow chart 12 4.3. Main Parts Location Diagram 13 4.4. Disassembly of Rear Cabinet Assembly 14 4.5. Disassembly of the Main P.C.B 15 4.6. Disassembly of the LCD Spacer 15 4.7. Disassembly of the Speaker 16 5 Exploded Views 17 5.1. Cabinet Parts Location 17 5.2. Packaging 18 6 Replacement Parts List 19 CONTENTS Page Page 2 RR-US455E
Page 2
1 Safety Precautions 1.1. GENERAL GUIDELINES 1. Whenservicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installe d. 3. After servicing, make the following leakage current checks to prevent the customer from being expose d to shock hazards. 1.2. Protection Circuitry The protection circuitry may have operated if either of the following conditions are noticed: · No sound is heard when the power is turned on. · Stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are shorted, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used. If this occurs, follow the procedure outline s below: 1. Turn off the power. 2. Determine the cause of the problem and correct it. 3. Turn on the power once again after one minute. Note: When theprotection circuitry functions, the unit will not operate unless the power is first turned off and then on again. 1.3. Safety Part Information Safety Parts List: There are special components used in this equipment which are important for safety.These parts are marked by in the Schematic Diagrams & Replac ement Parts List. It is essential that these critical parts should be replaced with manufacturers specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of manufacturer. Table 1 Reference No. Part No. Part Name & Description Remarks ICP2 D4FBR7500008 RESETTAB LE FUSES [M] ICP101 ERBSE1R50U FUSE [M] 3 RR-US455E
