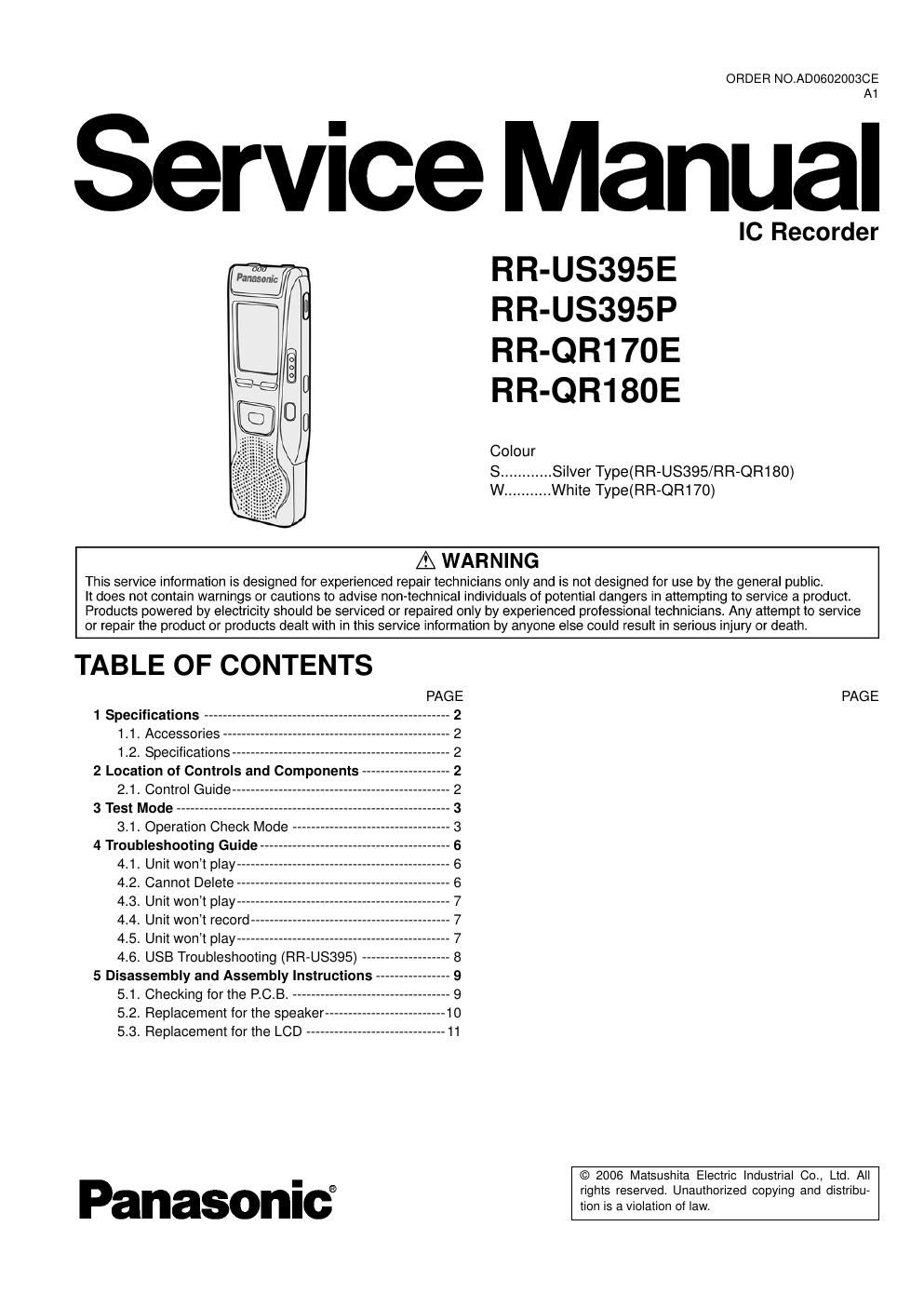

ORDER NO.AD0602003CE
A1

Service Manual

Panasamc

IC Recorder

RR-US395E
RR-US395P
RR-QR170E
RR-QR180E

Colour
8... ...Silver Type(RR-U8395/RR-QR180)
W.. ...White Type(RR-QR170)

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

TABLE OF CONTENTS

1 Specifications
1.1. Accessories --
1.2. Specifications

2 Location of Controls and Components
2.1. Control Guide ----------------------------

3 Test Mode --------------------------
3.1. Operation Check Mode -

4 Troubleshooting Guide--
4.1. Unit won't play -------
4.2. Cannot Delete --
4.3. Unit won't play--
4.4. Unit won't record-
4.5. Unit won't play----
4.6. USB Troubleshooting (RR-US$395)

5 Disassembly and Assembly Instructions --
5.1. Checking forthe P.C.B. --------------------
5.2. Replacement for the speaker--

5.3. Replacement for the LCD ------

Panasonic

PAGE

© 2006 Matsushita Electric Industrial (30., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a Violation of law.

Page 2

1 Specifications

1.1. Accessories
. RR-U8395
- USB cable (K2KZ4CBOOO10) ................................... 1pc.
- CD-ROM (Voice Editing Ver.1.0 Premium Edition)...1pc.
1.2. Specifications
Specification

Power output:
Frequency response:

300mW(max.)
240Hz-5,100HZ(HQ mode)
230Hz-3,400HZ(FQ/SP mode)

S/N: 36dB(HQ mode)
Jack:
Output jack; Earphone, 3.5mm, 0.5mW 160
Input jack; Mic, 3.5mm, 0.56MV plug in power
Speaker: 28mm 80
Power requirement: DC 3V

2 AAA size (LR03, AM-4) batteries

Dimensions (WxHxD):

Max dimensions; 35.0x100.2x24.0mm (RR-US395)

35.0x99.6><24.0mm (FlFl-QRISO/

QR170)

Cabinet dimensions; 32.8x99.3x22.5mm
Mass:

with batteries; About 629 (RR-US$95)

About Gig (RR-QR180/QR170)

without batteries; About 399 (RR-US395)
About 389 (RR-QR180/QR170)
Operational temperature range: 0°C-40°C
Battery life:
[When used at 25°C on a flat, stable surface]
Panasonic alkaline batteries;
Playback; About 9 hours 30 minutes(HQ
mode) (HR-US395)
About 10 hours(HQ mode)
(RR-QH180/QR170)
About 11 hours 30 minutes(FQ/SP
mode) (RR-US395)
About 12 hours(FQ/SP mode)
(RR-QR180/QR170)
About 14 hours 30 minutes(HQ
mode) (RR-u3395)
About 15 hours(HQ mode)
(RR-QH180/QR170)
About 19 hours 30 minutes(FQ/SP
mode) (RR-US395)
About 20 hours(FQ/SP mode)
(RR-QR180/QR170)
The battery life may be less depending on the operating conditions.
Note:
Specifications are subject to change without notice.
Mass and dimensions are approximate.

Recording;

2 Location of Controls and Components

2.1. Control Guide

Display

Recording level R d'

(When recording)! inzfizgggllg

Remaining memory Battery
indicator

Recording L
mode

Play indicator -
Folder

File

Recording

(Play) .
elapsed time

Handstrap hole

Play/enter[ ],stop[ ], -

=xternal microphone jack
Earphone jack

Built-in microphone

Recording indicator
la-<
Plumm-

-Recordinglstop

Battery cover

Display

Folder/Menu Meeting/Dictation

J-Volume (+.-)

Erase -

O -
rec f-M OWWAW

fast fomard, rewind/select Recording
[ ] mode
Speaker
Current time
(In standby mode)
USB connector [~3~ ]
