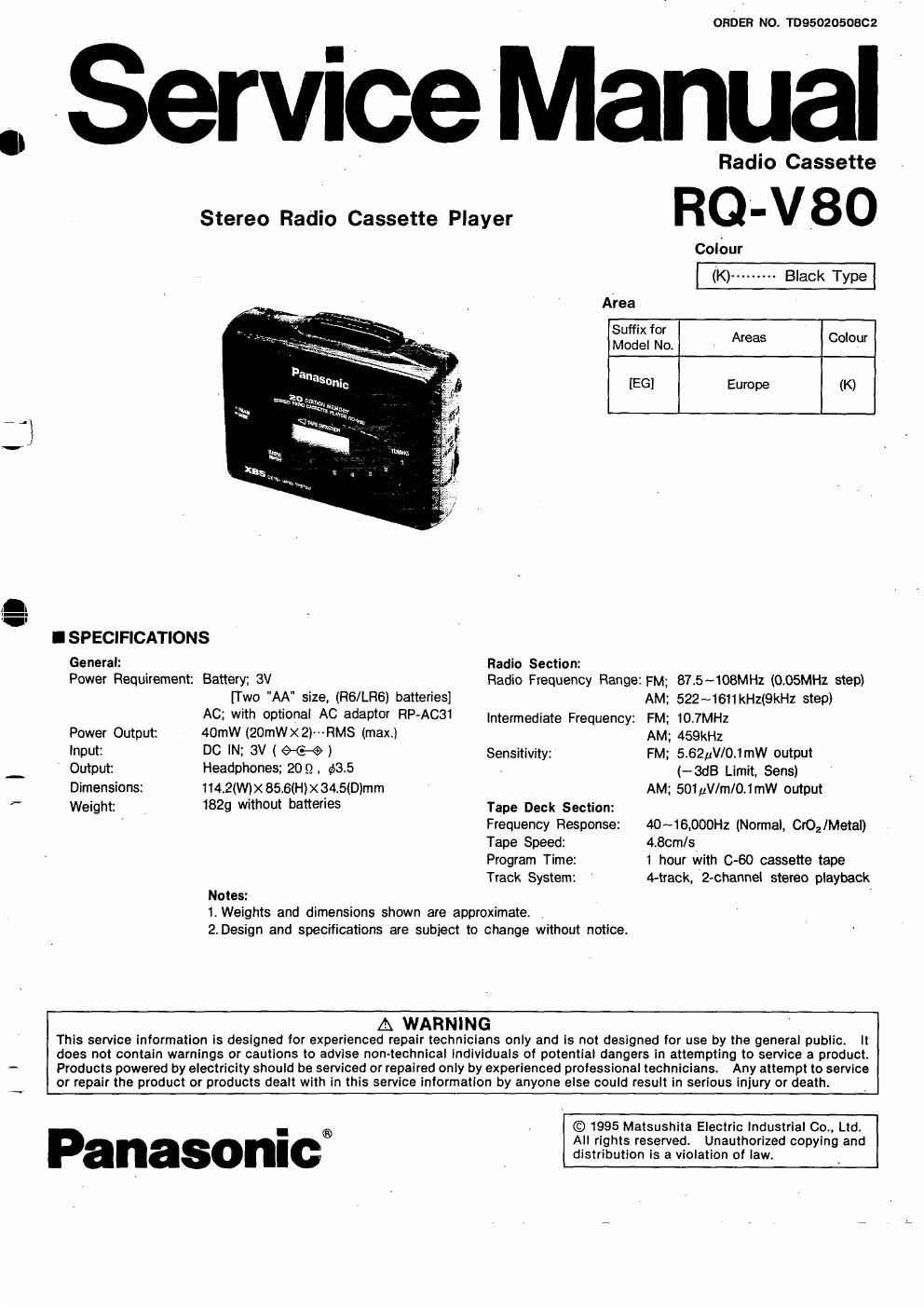

Page 1

ORbER NO. TDSSOZOSOSCZ

.. Service Manual

Stereo Radio Cassette Player

Radio Cassette

RQ-VBO

Colour
(K) ------- Black Type
Area
Suffix for
Model No. Areas Colour
[EG] Europe (K)
" i
l
I SPECIFICATIONS
General: Radio Section:
Power Requirement: Battery; 3V Radio Frequency Range: FM; 87.5~108MH2 (0.05MHZ step)

[Two "AA size. (RS/LBS) batteries]
AC; with optional AC adaptor PIP/331 Intermediate Frequency: FM; 10.7MHz

AM; 522~1611kHz(9kHz step)

Power Output: 40mW (20mWX2lmRMS (max.) AM; 459kHz
Input: DO IN: 3V ( 96-6) Sensitivity: FM; 5.62uVIOJmW output
_ Output: Headphones; 209. ¢3.5 (-3.33 Limit, Sens)
Dimensions: 114.2(W)X 85.6(H)X34.5(D)mm AM; 501 uVlm/OJmW output
* Weight; 182g without batteries Tape Deck Section:
Frequency Response: 4D~16.000Hz (Normal, Grog/Metal)
Tape Speed: 4.8cm/s
Program Time: 1 hour with 0-60 cassette tape
Track System: ' 4-track, 2vchannel stereo playback
Notes:

1. Weights and dimensions shown are approximate. ,

2. Design and specifications are subiect to change without notice.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
- Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 1995 Matsushita Electric Industrial Co., Ltd.

All rights reserved. Unauthorized copying and
distribution is a violation of law.

Panasonici

Page 2

:1!

. o
I LOCATION OF CONTROLS

'V

0 Hold switch (HOLD)
9 Fast toward button (FF D»)
e Rewind button (new <4)
' 0 Stop button (STOP I)
6 Play button (PLAY P)
6 XBS switch (X85)
0 Headphones iack ( Q )20 Q , 4153.5
6 Operation/battery check indicator

0 DC input jack (DC in 3 v 9-C.-Q>)

(OPE/BAIT)

9 FM mode Itape selector (FM MODE/TAPE)
® Volume control (VOLUME)

G Tuning indicator (TUNING)

@ Memory buttons (1 ,2.3,4.5)

® Tuning buttons (+ TUNING -_)

Q Radio on, otf button (RADIO ON/OFF)
G Band. mode select button

(OFM/AMV - MODE)

I DISASSEMBLY INSTRUCTIONS

ORemoval of the battery cover and Rear Cabinet

1. Open the battery cover in the direction of arrow®A

2. Remove the battery cover in the direction of
arrow ® and (3).

3. Remove the screws (A) (2x10)mmx4_.

4. Remove the rear cabint in the direction of arrow@&©.

Cassette
Foot ®

Cassette
Foot ®

0

.How to Removal of the Cassette Lid

Note: Be careful not to break cassette toots ®
and (E when removing the cassette lid.
1. Strongly press two sides of the cassette lid, then it
was bent a little. V
2. With a (-) screwdriver as shown in Fig 3, and pull
out the right-side of the cassette lid.
3. Remove the torque spring ® in the direction of arrow.
4. By the direction of®, remove the cassette foot.
