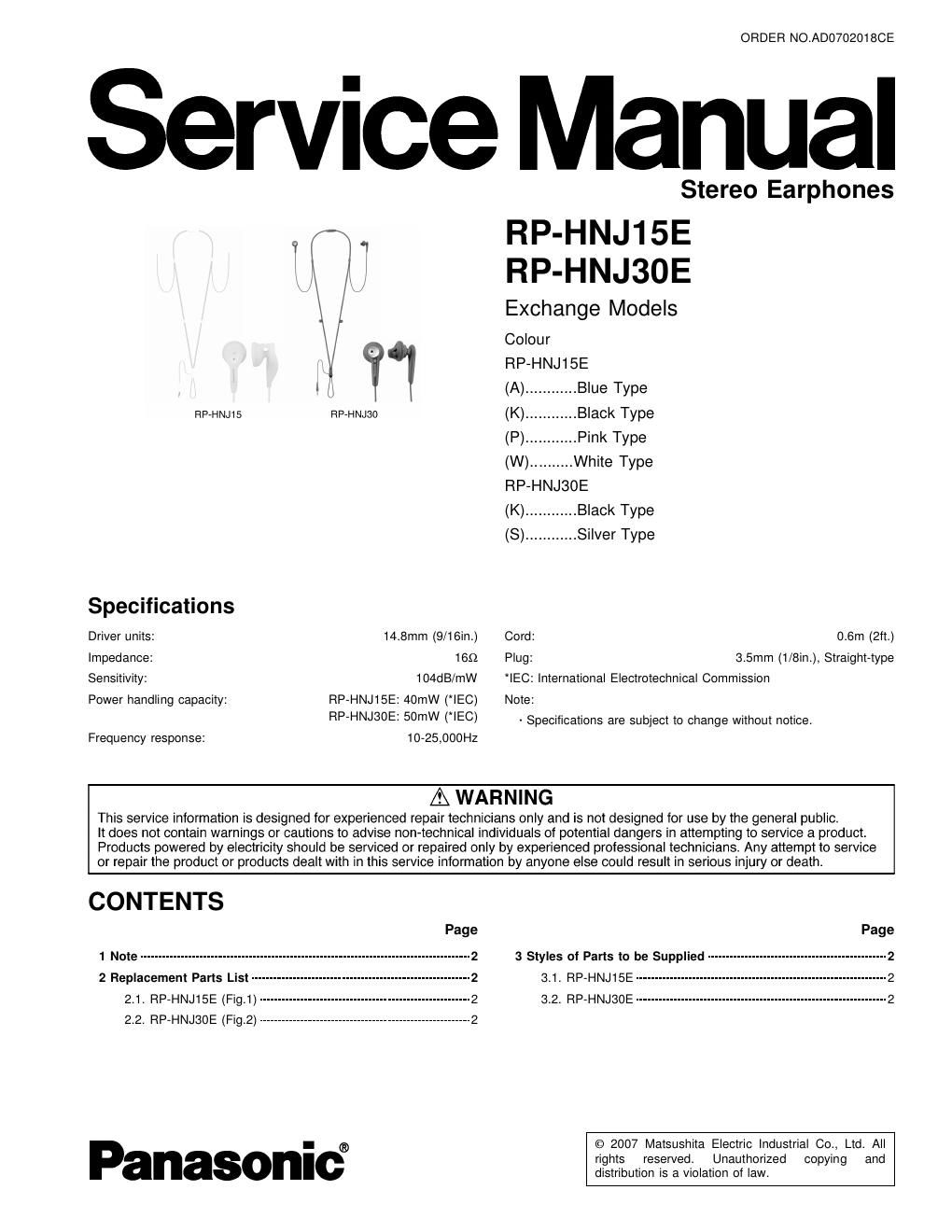

Panasonic rp hnj 15 e service manual
This is the 2 pages manual for panasonic rp hnj 15 e service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic rp hnj 15 e service manual (Ocr-read)
Page 1
1 Note · For these models, ear pieces and joint piece are supplied as the replacement parts. (please refer to the 2 Replacement Parts List for details) 2 Replacement Parts List Note: · The following parts are supplied bySPG. 2.1. RP-HNJ15E (Fig.1) Ref. No. Part No. Part Name & Description Pcs Remarks 1 RFX5530-W JOINT PIECE (WHITE) 2 (A) (P) (W) 1 RFX5530-K JOINT PIECE (BLACK) 2 (K) 2.2. RP-HNJ30E (Fig.2) Ref. No. Part No. Part Name & Description Pcs Remarks 1 RFX5453 EAR PIECE 1 2 RFX5530-K JOINT PIECE (BLACK) 1 3 Styles of Parts to be Supplied 3.1. RP-HNJ15E (Fig.1) 3.2. RP-HNJ30E (Fig.2) 2 RP-HNJ15E / RP-HNJ30E K0705HH/YH
