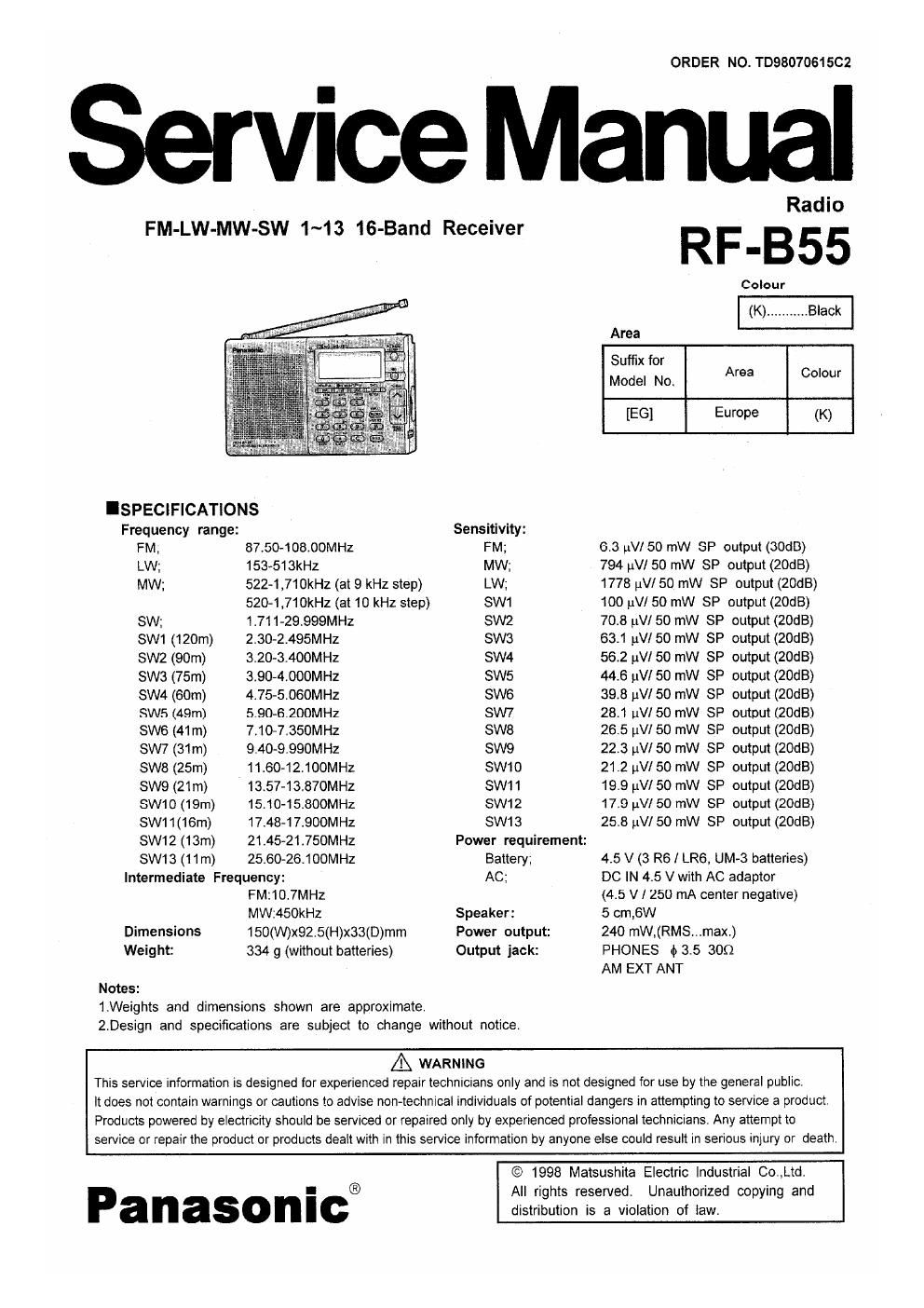

Panasonic rf b 55 service manual

Page 2

ILOCATION OF CONTROLS

0 Power onlotl and sleep button
(POWERI - SLEEP)

8 Fine tuning button (FINE)

0 Manual/auto scan tuning buttons
(TUNING, MANUAL/AUTO)

o Display/Enter command button for fre-
quency and time (DISPLAY, ENTER)

6 Time set/Memory entry button
(- TIME SET, M)

6 Frequency select button (FREQ)

o cancel button (0)

0 Dot/memory scan/zero second set
button ( - , M.SCAN, USED

9 Digit button for lrequency, time, SW me-
ter band/memory page 1 or 2 (0, Plle)

GD Tuning LED indicator (TUNING)

G) Multi lunctions for FM band knob/FM
ATS/dual and real time
(FM, - ATS, REAL/DUAL)

® Multi functions for LW band knob/LW
ATS/Standby by radio
(LW, - ATS, «ID-STANDBY)

@0 ®®®i5 -

® Multi functions for MW band knob/MW
ATS/Standby by st buzzer

(MW, - ATS, STANDBY-(3M6)
6!) Multi functions for SW band knob/SW

meter band/counting down timer
(SW, METER, TIMER)
@ LCD display
® Light button
0 AM external antenna jack (AM EXT ANT)

a9 FM stereomono/AM sens-DX. local-
mode selector (FM STEREO/MONO, AM
SENS DXILOCAL)

Q Earphones jackm)

a) DCIN iack(DC IN 4.5V m)
@ Telescopic Antenna

@ Folding stand

® Volume control (VOLUME)

@ Hold switch (> . 01!)

(a 9 Kim K MW step switch (9 K, 10 K)
® Reset button (RESET)

@ Battery compartment

- DISASSEMBLY INSTRUCTIONS

Fig.2

ITO REMOVE BACK COVER (See Fig.1)

a. Unscrew 1 PTF screw A.(2.6x24)
& release back cover from
hooks 2-9.

b. Separate front and back cabinet,

21. Remove screw B & C.
b. Release Main PCB from hooks 10~13
to remove it.

a. Release Control PCB from hooks 14-18
to remove it.

ITO REMOVE MAIN PCB (See Fig.2)

ITO REMOVE CONTROL PCB (See Fig.3)
