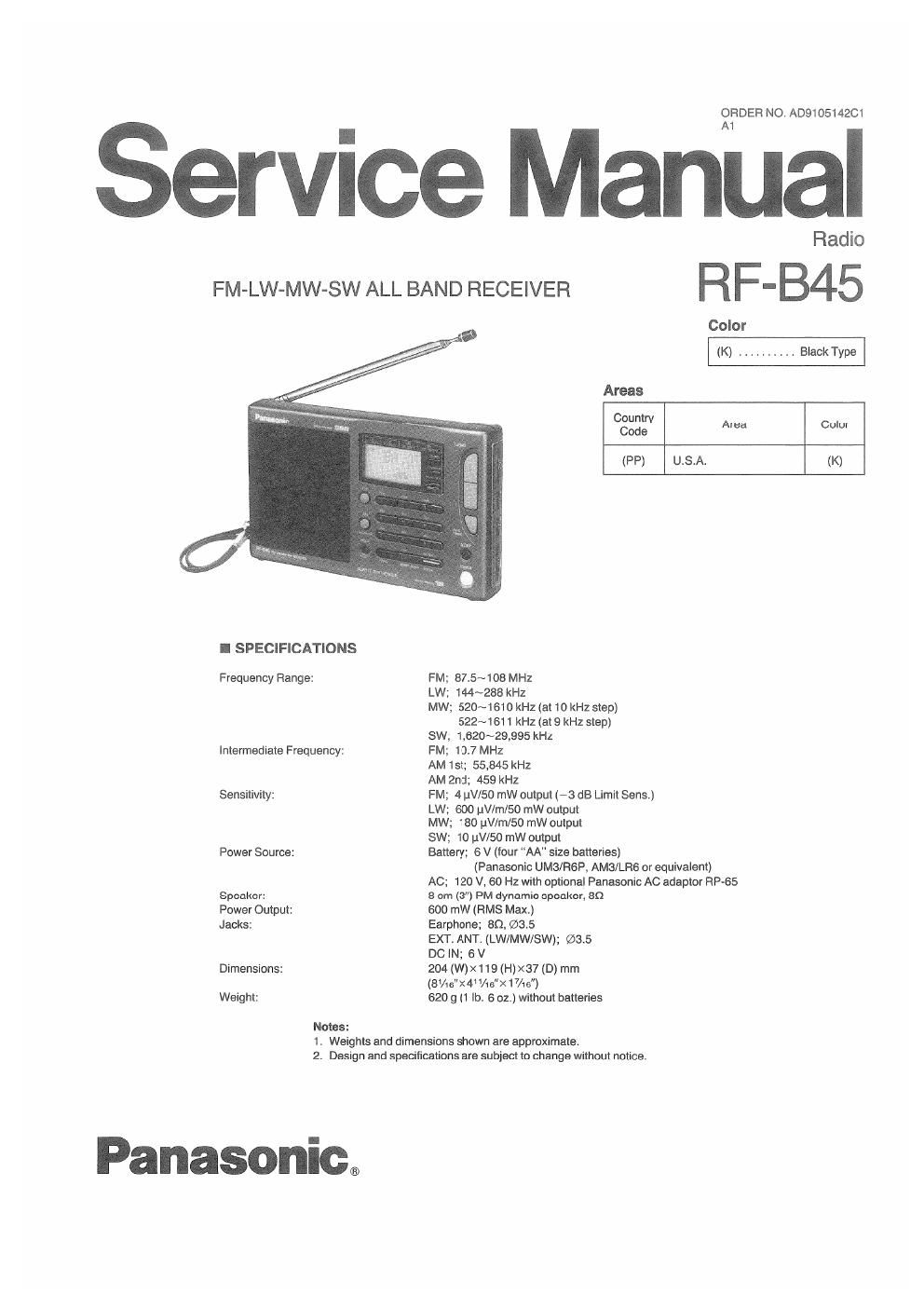

Panasonic rf b 45 service manual

Page 2

RF-B45

I LOCATION OF CONTROLS
0 4 5 6

0 Speaker 0 {B 13 0 a?
(8 Cm,80)

9 Band select keys (FM, AM/LW-MW-SW)
o Standby key (STANDBY)

0 Standby set key (STANDBY SET)
Press the key to set the time you want to turn
on the radio automatically.

9 Memory/time set key
(MEMORY/TIME SET)
Press the key when setting the clock time. In
memory tuning, press to preset the stations.

0 Tuning keys (TUNING +, -)
Press the + key or 7 key to make the
frequency change up or down.

0 Fine tuning control (FINE TUNING)
When receiving the MW, LW. SW and 888,
use this control for more preCISe tuning.

0 AM mode selector (MODE)
0 Auto tuning key (AUTO TUNING)
® Tone selector (TONE)

a) Sleep key (SLEEP)
Press the key to turn off the radio automati-
cally in 90, 60 or 30 minutes.

Q Volume control (VOLUME)

0 Power key (POWER)
Press to turn on or off the radio.

m Hold key (HOLD)
Press to hold the present condition.

Q Frequency direct access key (FREQ)
When you know the trequency of your
desired station, press the key before enter-
ing the frequency number.

(9 Number 0"/13 meter band/memory
search key (MEMORY SEARCH)

0 Meter band direct access/enter key

(METER/ENTER)

Press the key betore calling the lowest
frequency of the SW meter band that you
desire to listen to.

After entering the frequency number oi your
desrred station or a clock time, press the key
to begin receiving the broadcast of the
station Or to complete the time setting.

@ Number/memory channel/meter band
keys

By using the stand. it is easy
to operate.

® Telescopic antenna

0 SW external antenna iack (EXT ANT) ($3.5)

@ Sensitivity selector (SENS)
Normally set to DX. When the signal is too
strong and the sound is distorted, set to
LOCAL.

a; DC input jack (DC IN 6 veee)

at Earphone jack ((2))(80, $3.5)
Connect the included earphone to the jack.
When using the earphone, avoid listening to
sound at excessive volume levels to prevent
hearing disorder.
Speakers are automatically cut off when the
earphone are connected.

w Carrying strap

Q Battery compartment
