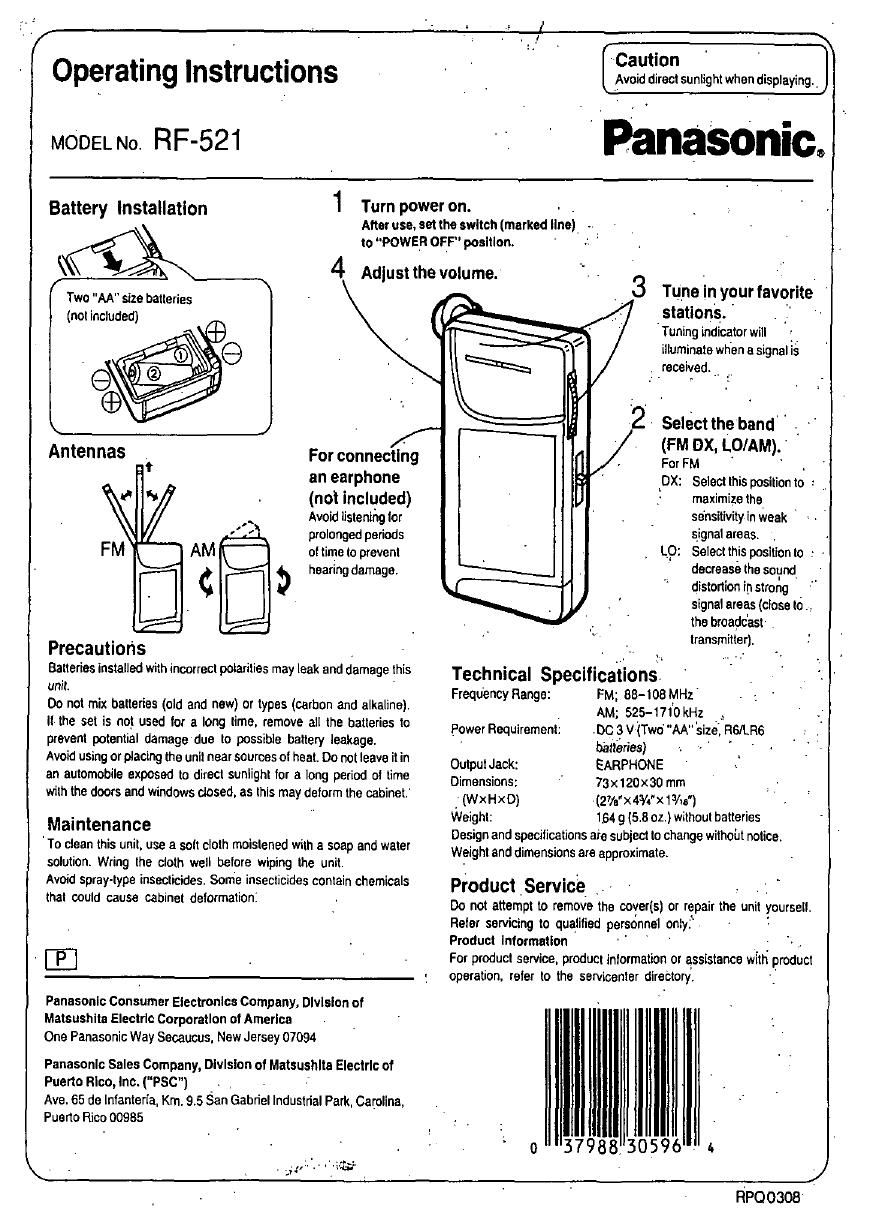

Page 1

Operating Instructions

MODEL No. RF-521

- Caution
Avoid direct sunlight when displaying. .

' PanaSOnic.

Battery Installation

Two "'AA size batteries
(not included)

D c DD hearingdamage.

Precautions

Batteries installed with incorrect polarities may leak and damage this
unit

Do not mix batteries (old and new) or types (carbon and alkaline).
It the set is not used for a long time, remove all the batteries to
prevent potential damage due to possible battery leakage,
Avoid using or placing the unit near sources at heat. Do not leave it in
an automobile exposed to direct sunlight tor a long period at time
with the doors and windows closed, as lhis may delorm the cabinet.

Maintenance

'To clean this unit. use a salt cloth moistened with a soap and water
solution Wring the cloth well belore wiping the unit.

Avoid spray-type insecticides. Some insecticides contain chemicals
that could cause cabinet deiOImationZ

' IE

1 Turn power on.
Alter useV set the switch (marked line).
to POWER OFF position.

4 Adlust the volume.

Antennas For connectan
an earphone
a A - (not included)
Avoid listening tor
" " prolonged periods
FM AM of time to prevent

Panasonic Consumer Electronics Company, Division of
Matsushlta Electric Corporation at America
One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company, Division of Matsushlta Electric of
Puerto Rico, inc. (PSC)

Ave 65 de lnlanterla. Km 9. 5 san Gabriel industrial Park Carolina,
Pueno Rico 00985

3 Tune In yourtavorite '
statIons
Tuning IndIcator wnl ..
illuminate when a signal is

, received.__

2 , Select the band
(FM DX. LOIAM).
For FM
)DX: Select this position to
maximize the
sensitivity in weak ,
signal areas. .
LO: Select this position to : .
decrease the sound
distortion In strong
signal areas (close to ..
the broadcast-
transmitter).

Technical Specifications.-

Frequency Range: FM; 88-108 MHz'
V AM; 525-171'0 kHz ._
Power Requirement: .DC 3 V (Two "AA size, FlG/LRG
batteries)
Output Jack: EARPHONE
Dimensions: 73x 120x30 mm
' (Wx H x D) (27/.x43/4"x13/m")
Weight: 154 g {5.8 oz.) without batteries

Design and specifications aie subject to change without notice,
Weight and dimensions are approximate.

Product Service . v

Do not attempt to remove the cover(s) or repair the unit yoursell.
Reler servicing to qualified personnel only. -
Product lntormatlon

For product service. product lnlormation or assistance with product
operation, reler to the servicenler direbtory. '

llllll

;/

nPooaoa
