Page 1

f , PIP-310mg

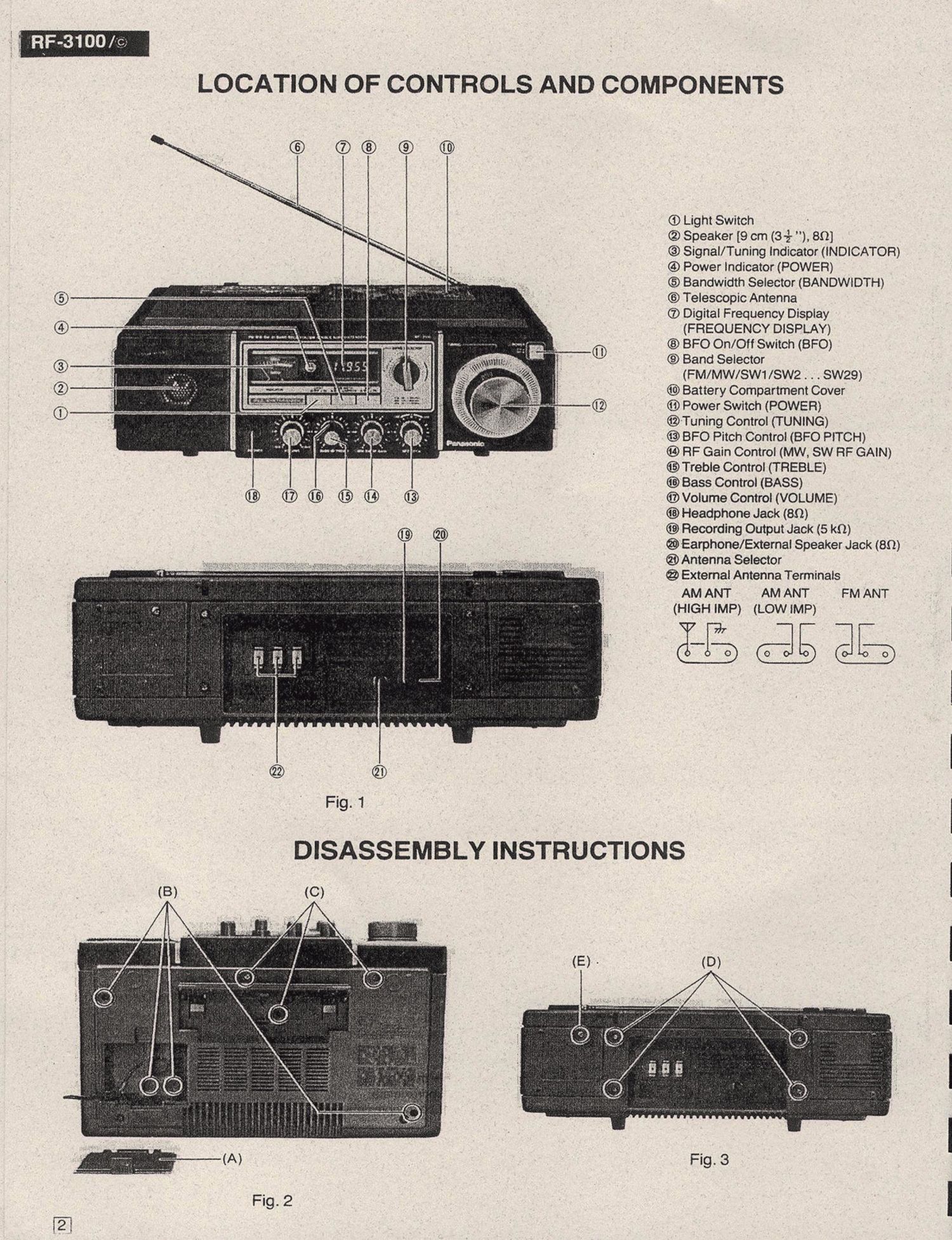

LOCATION OF CONTROLS AND COMPONENTS

©®OO®

6) Light Switch
® Speaker [9 cm (3 a} "), 80]
@ Signal/Tuning Indicator (INDICATOR)
@ Power Indicator (POWER)
(5 Bandwidth Selector (BANDWIDTH)
Telescopic Antenna
® Digital Frequency Display
(FREQUENCY DISPLAY)
® BFO On/Off Switch (BFO)
Band Selector
(FM/MW/SW1 /SW2 . . . SW29)
Battery Compartment Cover
@ Power Switch (POWER)
@Tuning Control (TUNING)
® BFO Pitch Control (BFO PITCH)
@ FIF Gain Control (MW, SW RF GAIN)
® Treble Control (T REBLE)
@ Bass Control (BASS)
CD Volume Control (VOLUME)
Headphone Jack (80)
® @ Recording Output Jack (5 kn)
® Earphone/External Speaker Jack (80)
® Antenna Selector
® External Antenna Terminals
AM ANT AM ANT FM ANT
(HIGH IMP) (LOW IMP)

217-139 6-15 Eli-a

® ®
Fig. 1

DISASSEMBLY INSTRUCTIONS

(B) (C)

(E) - (D)

Fig. 3

Fig. 2

Page 2

ORDER NO. HD81071 89501

Service Manual

Radio

RF-31 OO/©

FM/MW/SW1~29 31 -Band Portable Radio
with PLL Quartz-Synthesized Tuning

Power Source: AC 120 V. 60 Hz or
DC 12 V (Eight "D" size
Flashlight Batteries)
(Panasonic UM-i or equivalent)
Power Consumption: 15 W
Power Output: 2.0 mW . . . RMS (Max)
Speaker: 9 cm (3 1; ") PM Dynamic Speaker
Dimensions: 371 (W) x 1 22 (H) x 24'1 (0) mm
(141,9gx4-5t x9'lr )" _
Weight: 3.2 kg (7 lb 1 02.) without batteries
Sensitivity: FM 2.5 V (-3 dB. Limit. Sens) Impedance: Speaker ......................... 89
MW 40 pV/m (Max. Sens) Recording Output Jack ........... 5 k0

SW1 2.5 uV/(S/N 10dB) Earphone/External Speaker Jack ...80

swz 2.2 av, (S/N 10 dB)
SW29 3.2 w (S/N 10 :18)

Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
(Les poids et dimensions mentionnes sont approximatifs.)

I SPECIFICATIONS

Frequency Range: FM 88~108 MHz
MW 525~1610 kH2(571~186 m)
8W1 1.6~2.0 MHz (186~150 m)
SW2 2.0~3.0 MHz (150~100 m)
SW29 29.0~30.0 MHz (10.6~10 m)

Intermediate Frequency: FM 10.7 MHz

. MW 455 kHz
SW1~SW29 ist 10.695 MHz
2nd 455 kHz
