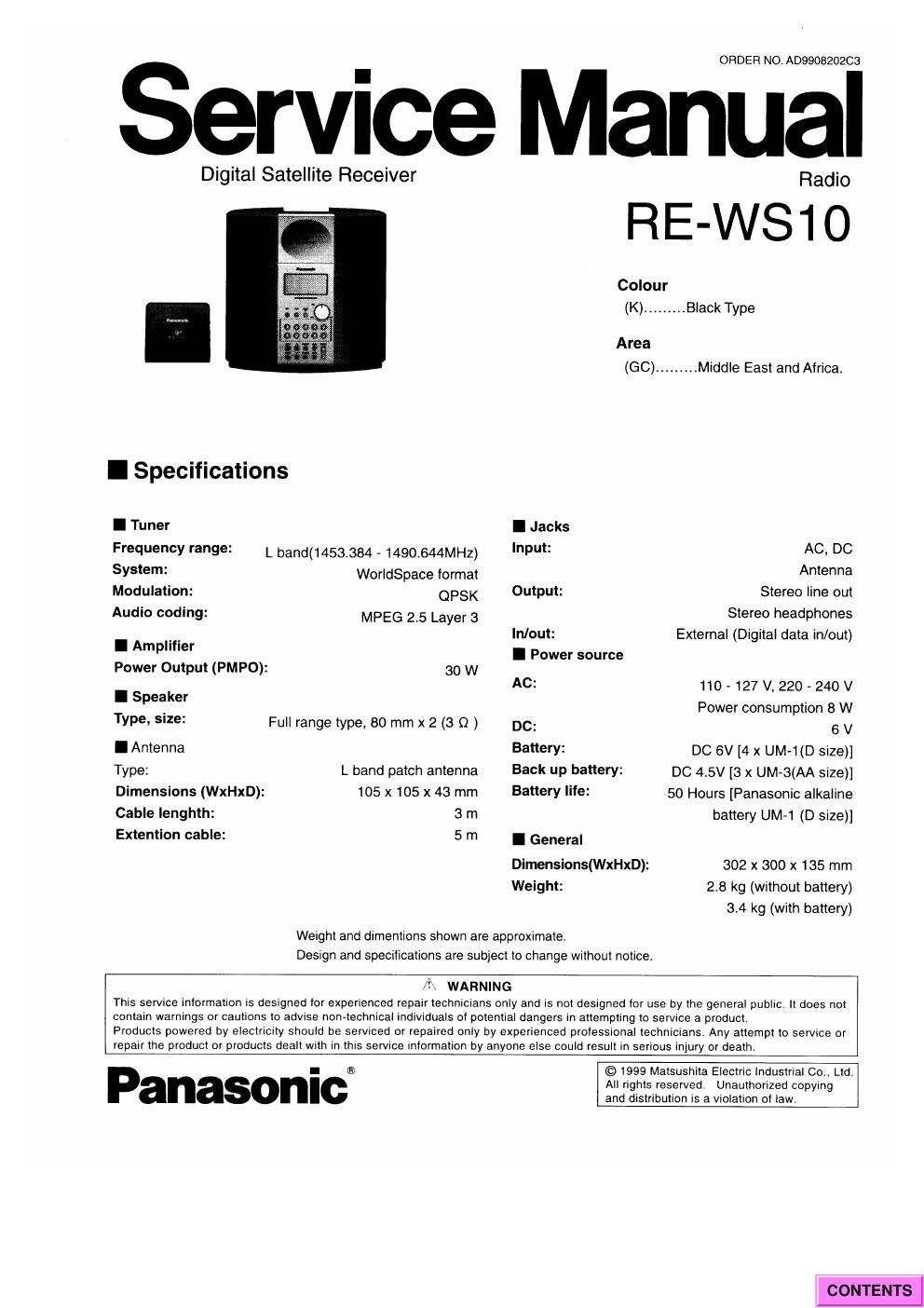

Page 1

ORDER NO. ADQQOBZOZCS

Service Manual

Digital Satellite Receiver Radio
R E -WS 1 0
Colour
(K) ......... Black Type
Area
(GC) ......... Middle East and Africa.
I Specifications
I Tuner I Jacks
1me range L band(1453.384 - 1490.644MHZ) '"PW AC, 00
System: WorldSpace format Antenna
Modulation: QPSK Output: Stereo line out
Audio coding: MPEG 2'5 Layer 3 Stereo headphones
_ . lnlout: External (Digital data in/out)
I Amplifier I Power source
Power Output (PMPO): so w
I k AC: 110-127V,220-240V
Spea er Power consumption 8 W
Type, Size: Full range type, 80 mm x 2 (3 Q ) DC: 6 V
I Antenna Battery: DC 6V [4 x UM-i (D size)]
Type: L band patch antenna 530k up battery: DC 4.5V [3 x UM-3(AA size)]
Dimensions (WxHxD): 105 x 105 x 43 mm Battery life: 50 Hours [Panasonic alkaline
Cable lenghth: 3 m battery UM-1 (D size)]
Extention cable: 5 m I General

Dimensions(WxHxD):
Weight:

Weight and dimentions shown are approximate.
Design and specifications are subject to change without notice.

302 x 300 x 135 mm
2.8 kg (without battery)
3.4 kg (with battery)

This service information is designed lor experienced repair technicians only and is not desrgned for use by the general public. It does not
contain warnings or cautions to advrse nonetechnical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians, Any attempt to service or
repair the product or products dealt with in this service inlormation by anyone else could result in serious injury or death.

A WARNING

Panasonic®
