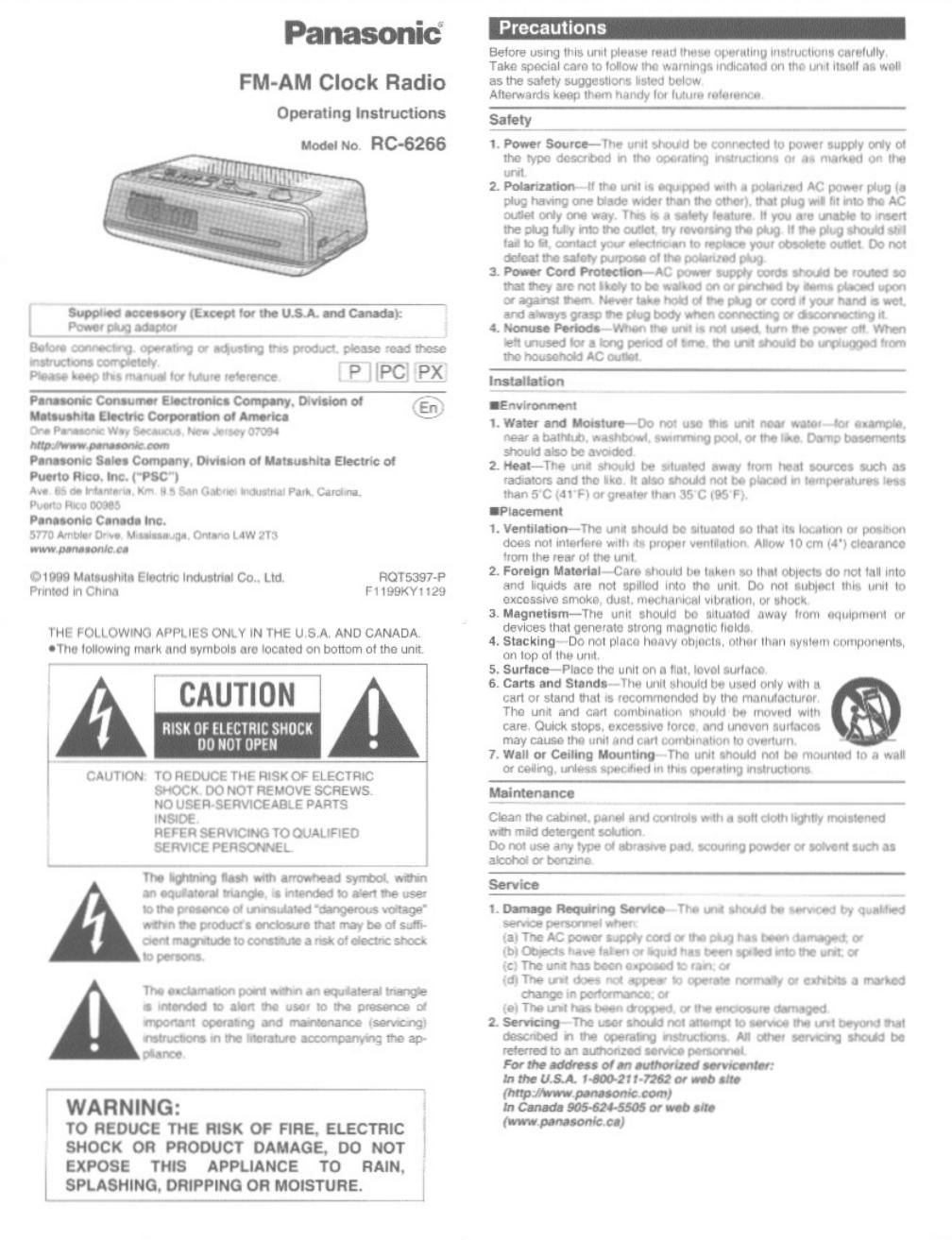

Panasonic rc 6266 owners manual

Page 2

t» en

Press and hold.

@ 22o24ov,
VOLTAGE
"M27" setecroa 6
1 10-1 27v '

220-240v .

VOLTAGE
zzomv SELECTOR 8

1to-iz7v'

50Hz 60HZ

9| Bottom of the unit (No battery cover is used.)

Back of the unit

PM indicator AM indicator ALARM

SLEEP

CIZHIZD

. -
RADIO 0N OFF

SELECTOR
r-ALARM-i
(mm

Radio dial

4&3

MIN 0 0 MAX

IE

0 0
FM AM BAND
[4-H

Voltage selector n -. (Except for the USA. and Canada)
Use a screwdriver to set the voltage for your area.

Frequency selector fl - ® (Except for the USA and Canada)
Select the frequency for the power supply in your area.

Dry cell memory back-up battery (not included) I]
This battery saves the clock and alarm settings it there is a power
interruption.

Using AC power cord E
©lt the power plug will not lit your socket, use the power plug adaptor
(included).(Except for the USA. and Canada)

lithe power is Interrupted
OThe time display clears until the unit is turned on again The clock can
gain or lose up to six minutes an hour while the power is interrupted.

Replacing the battery

OThe service life ol this battery is approximately 1 year.

elf, after a power interruption, the display flashes after turning the unit on
again. the battery needs to be replaced.

IAlign the poles (e and (9) properly when inserting the battery.

000 not heat or disassemble the batteries. Do not allow them to contact
flame or watert

ORemove the battery it the unit is not to be used lor a long time.

000 not peel off the covering on batteries and do not use if the covering
has been peeled ofl. '

Mishandling of battery can cause electrolyte leakage which can damage
items the fluid contacts and may cause a fire.

It electrolyte leaks lrom the batteries, consult your dealer.

Wash thoroughly with water if electrolyte comes in contact with any pan of
your body.

Setting the time .

While pressing [TIME SET], press [HOUR] or [MIN] to set the time,
[HOUR]: Increases the time by one-hour units.
[MIN] : Increases the time by one-minute units.
IMake sure the AM or PM setting is correct,
AM : The AM indicator lights.
PM : The PM indicator lights.
IThe seconds are reset to zero when [TIME SET] and [MIN] are pressed,

lTo check the second display

While pressing [DISP/CANCEL, ALARM], press [SLEEP].

The time display changes to show the last digit of the minutes and the
seconds.

Listening to the radio [a

ITo adjust antenna

AM -

FM (tor others)

FM (for the USA. and Canada) 1

@

xtend and change the direction of
he FM antenna cord.

@

Extend and change the direction 0
the AC power cord.

flTo turn 0" :
Set [SELECTOR] to OFF.

These speakers do not have magnetic shielding. Do not place them near
televisions, personal computers or other devices easily inlluenced by
magnetism.
