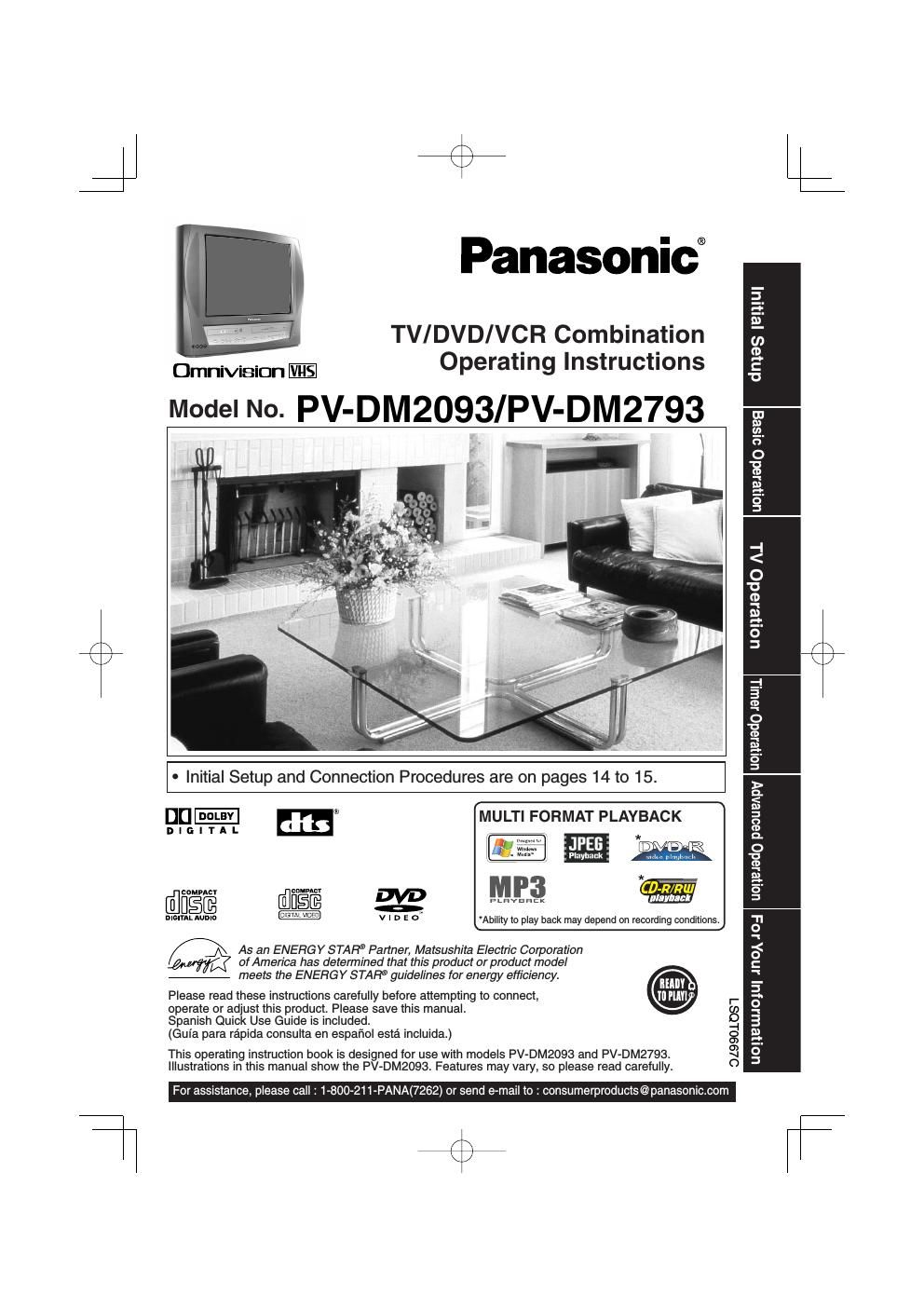

Panasonic pv dm 2093 owners manual

This is the 76 pages manual for panasonic pv dm 2093 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 76

Extracted text from panasonic pv dm 2093 owners manual (Ocr-read)

Page 1

2 Important Safeguards and Pre cau tions OUTDOOR ANTENNA INSTALLATION USING THE UNIT INSTALLATION 1 POWER SOURCE CAUTION Operate only from power source indicated on unit or in this manual. If uncertain, have your Electric Utility Service Company or Video Products Dealer verify your home power source. 2 POWER CORD PLUG For safety, this unit has a polarized type plug (one wide blade), or a three-wire grounding type plug. Always hold the plug rmly and make sure your hands are dry when plugging in or unplugging the AC power cord. Regularly remove dust, dirt, etc. on the plug. POLARIZED PLUG CAUTION: The plug ts into outlet only one way. If it cannot be fully inserted, try reversing it. If it still will not t, have an electrician install the proper wall outlet. Do not tamper with the plug. GROUNDING PLUG CAUTION: The plug requires a three-hole grounding outlet. If necessary, have an electrician install the proper outlet. Do not tamper with the plug. 3 POWER CORD To avoid unit malfunction, and to protect against electrical shock, re or personal injury: - Keep power cord away from heating appliances and walking traf c. Do not rest heavy objects on, or roll such objects over the power cord. - Do not tamper with the cord in any way. - An extension cord should have the same type plug (polarized or grounding) and must be securely connected. - Overloaded wall outlets or extension cords are re hazards. - Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a quali ed electrician. 4 DO NOT BLOCK VENTILATION HOLES Ventilation openings in the cabinet release heat generated during operation. If blocked, heat build-up may result in a re hazard or heat damage to cassettes or discs. For your protection: a.Never cover ventilation slots while unit is ON, or operate unit while placed on a bed, sofa, rug, or other soft surface. b.Avoid built-in installation, such as a book case or rack, unless properly ventilated. 5 AVOID EXTREMELY HOT LOCATIONS OR SUDDEN TEMPERATURE CHANGES Do not place unit over or near a heater or radiator, in direct sunlight, inside closed ve hi cles, in high temperature [over 95 °F (35 °C)], or in over 75% humidity. If unit is suddenly moved from a cold place to a warm one, moisture may con dense in unit and on the tape causing dam age. Never sub ject unit to vibration, im pact, or place it so that the sur face is tilted as in ter nal parts may be se ri ous ly dam aged. 6 TO AVOID PERSONAL INJURY Never place unit on support or stand that is not rm, level, and adequately strong. The unit could fall causing serious injury to a child or adult and damage to the unit. Move any appliance and cart combination with care. Quick stops, excessive force, and uneven surfaces may cause objects to overturn. Carefully follow all operating instructions. Before unit is brought out of storage or moved to a new location, refer again to the INSTALLATION section of these safe guards. 1 KEEP UNIT WELL AWAY FROM WATER OR MOISTURE, such as vases, sinks, tubs, etc. 2 IF EXPOSED TO RAIN, MOISTURE, OR STRONG IMPACT, unplug unit and have it inspected by a quali ed service technician before use. 3 ELECTRICAL STORMS During a lightning storm, or before leaving unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system. 4 WHEN UNIT IS PLUGGED IN DO NOT OPERATE IF: - liquid has spilled into unit. - unit was dropped or otherwise damaged. - unit emits smoke, odours, or noises. Immediately unplug unit, and have it inspected by a service technician to avoid potential re and shock hazards. Never drop or push any object through openings in unit. Touching internal parts may cause electric shock or re hazard. Do not put any foreign object on the tray. Keep magnetic objects, such as speakers, away from unit to avoid electrical interference. 5 USING ACCESSORIES Use only accessories recommended by the manufacturer to avoid risk of re, shock, or other hazards. 6 CLEANING UNIT Unplug unit. Use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning uids, aerosols, or forced air that could over-spray, or seep into unit and cause electrical shock. Any substance, such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts. READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THE MANUAL AND ON UNIT SERVICE 1 DO NOT SERVICE PRODUCT YOURSELF If, after carefully following detailed operating in struc tions, the unit does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual. Unplug unit and contact a quali ed service tech ni cian. 2 REPLACEMENT OF PARTS Make sure the service technician uses only parts speci ed by the manufacturer, or have equal safety char ac ter is tics as original parts. The use of unauthorized substitutes may result in re, electric shock, or other hazards. 3 SAFETY CHECK AFTER SERVICING After unit is serviced or repaired, request that a thorough safety check be done as described in the manufacturers service literature to ensure video unit is in safe operating condition. 1 SAFE ANTENNA AND CABLE CONNECTION An outside antenna or cable system must be properly grounded to provide some protection against built up static charges and voltage. Section 810 of the National Electrical Code, ANSI/NFPA 70 (in Canada, part 1 of the Canadian Electrical Code) provides information regarding proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, con nec tion to grounding electrodes, and requirements for the grounding electrode. 2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR CIRCUITS Locate an outside antenna system well away from power lines and electric light or power circuits so it will never touch these power sources should it ever fall. When installing antenna, absolutely never touch power lines, circuits or other power sources as this could be fatal. GROUND CLAMP ELECTRIC SERVICE EQUIPMENTANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC- NATIONAL ELECTRICAL CODE

Page 2

3 CAUTION: LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM. This product utilizes both a Cathode Ray Tube (CRT) and other components that contain lead. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance: CAUTION: UNIT IS A CLASS I LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR THE UNIT YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. Safety Precautions/Mesures de sécurité This symbol warns the user that uninsulated voltage within the unit may have suf cient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit. This symbol alerts the user that important literature concerning the operation and main te nance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL RISK OF ELECTRIC SHOCK DO NOT OPENCAUTION ATTENTION: RAYONNEMENT LASER EN CAS DOUVERTURE. NE PAS REGARDER DANS LE FAISCEAU. (Inside of product) FCC NOTICE: This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver. If necessary, consult the dealer or an experienced radio/TV technician for help. You may nd the booklet, Something About Interference available from FCC local regional of ces helpful. This video recorder, equipped with the HQ (High Quality) System, is compatible with existing VHS equipment. Only use those tapes with the mark. It is recommended that only cassette tapes that have been tested and inspected for use in 2, 4, 6, and 8 hour VCR machines be used. This television receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules. Warning : To prevent re or shock hazard, do not expose this equipment to rain or mois ture. Caution : To prevent electric shock, match wide blade of plug to wide slot, fully insert. Avertissement : A n de prévenir tout risque dincendie ou de chocs électriques, ne pas exposer cet appareil à la pluie ou à une humidité excessive. Attention : Pour éviter les chocs électriques, introduire la lame la plus large de la che dans la borne correspondante de la prise et pousser jusquau fond. FCC WARNING : Any unauthorized changes or modi cations to this equipment would void the users authority to operate. Region Management Information This unit is designed and man u fac tured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not cor re spond to the Region number of this unit, this unit cannot play this disc. The region number of this player is 1. The player will play DVD-Video marked with labels containing 1 or ALL. 1 Example:
