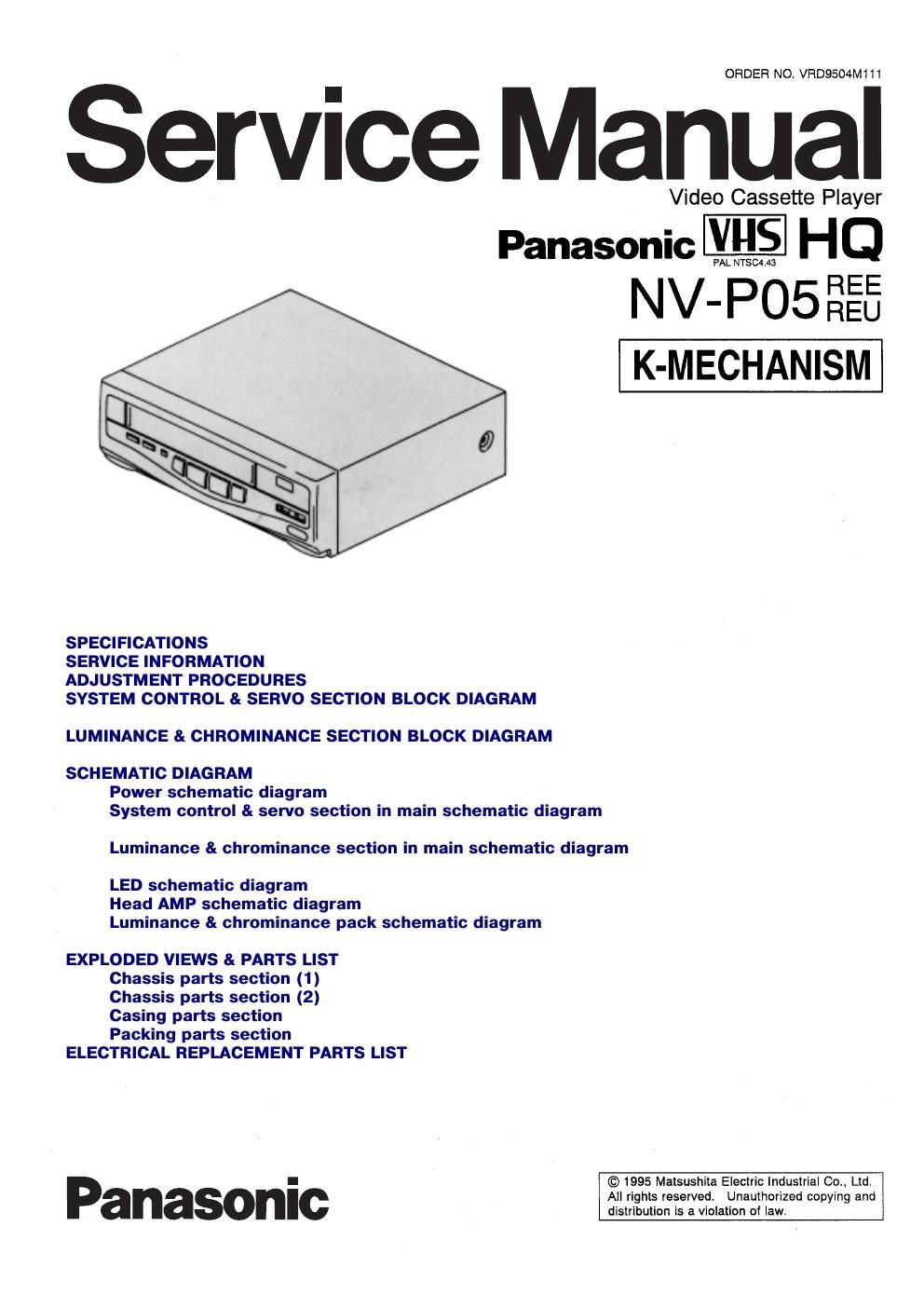

ORDER NO. VFID9504M111
Service Manual
Video Cassette Player
Panasonic VHS HQ
NV- P05 355
K-MECHANISM
SPECIFICATIONS
SERVICE INFORMATION
ADJUSTMENT PROCEDURES
SYSTEM CONTROL & SERVO SECTION BLOCK DIAGRAM
LUMINANCE & CHROMINANCE SECTION BLOCK DIAGRAM
SCHEMATIC DIAGRAM
Power schematic diagram
System control & servo section in main schematic diagram
Luminance & chrominance section in main schematic diagram
LED schematic diagram
Head AMP schematic diagram
Luminance & chrominance pack schematic diagram
EXPLODED VIEWS & PARTS LIST
Chassis parts section (1)
Chassis parts section (2)
Casing parts section
Packing parts section
ELECTRICAL REPLACEMENT PARTS LIST
© 1995 Matsushita Electric Industrial (20., Ltd.
I
All rights reserved. Unauthorized copying and
distribution is a violation of law.
Page 2
SPECIFICATIONS
ITEM SPECIFICATION ITEM SPECIFICATION
POWER SOURCE: 110/127/220/230-240V 50/60 Hz TAPE FORMAT VHS Cassette tape (Tape width 127 mm)
CONSUMPTION: 30 watts 23.39 mm/s
RECORDING 2 rotary heads, helical seaming system Record/Playback Time:
SYSTEM PAL NTSC4.43 TAPE SPEED 4 hours with 240 min. type tape (NV-E240)
RF OUT SYSTEM UHF: (II-[38 FF/REW Time:
73 1 3 dBu, 759 terminated Less than 3.0 min. with 180 min. type tape
HEADS: 2 mtary heads (NV-E180)
INPUT: VIDEO IN Connector (Phono type) DIMENSIONS 320 (W) X 91 (H) X 293 (D) mm
VIDEO 1.0 Vpep, 75S} terminated WEIGHT 4.1 kg
OUTPUT: VIDEO OUT Connector (Phono type) STANDARD 1 pa DIN-RF Cable
1,0 Vp-p, 759 terminated ACCESSORIES 1 pc. Remote Controller
HEAD: I Stationary head (Normal Audio) 1 pc, AC Plug Adaptor
INPUT: AUDIO 1N Connector (Phono type)
AUDIO <8 dBV (400 mV), 47 k9
OUTPUT: AUDIO OUT Connector (Phono type)
-8 dBV (400 mV), Less than 1 k9
Weight and dimensions shown are approximate
Specifications are subject to change without notice.
