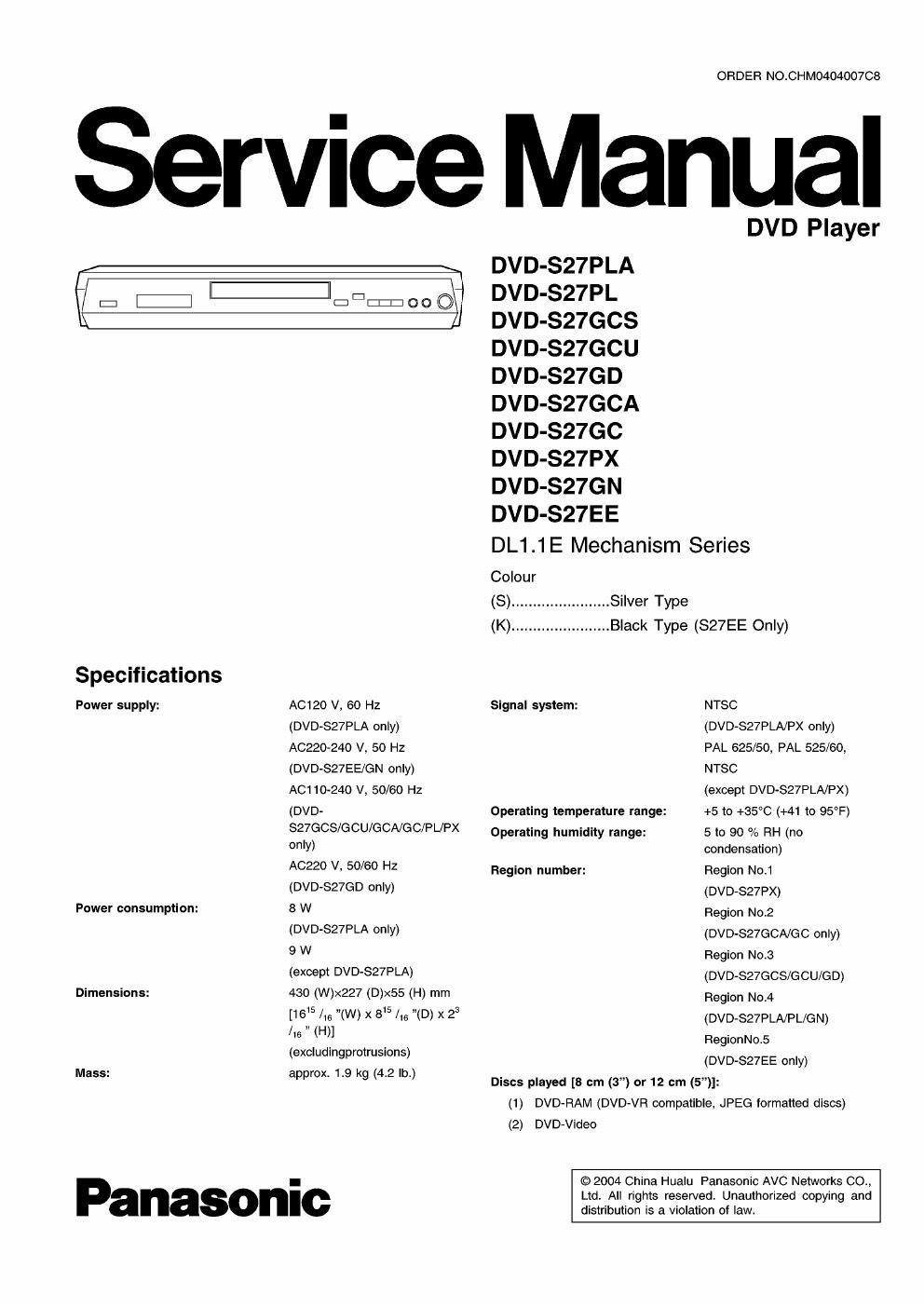

Panasonic dvd s 27 service manual

Page 2

IDVD-SZ7PLA I DVD-S27PL I DVD-SNGCS I DVD-SWGCU I DVD-S27GD IDVD-SZ7GCA I DVD-$27GC I DVD-$27PX I DVDS27GN I DVD-527EEI

(3) DVD-R (DVD-Video compatible)
(4) CD-Audio (CD-DA)

(5) Video CD

(6) SVCD (Conforming to IE062107)

(7) CD-R/CD-RW (CD-DA, Video-CD, MP3, WMA, JPEG
formatted discs)

(8) MP3/WMA

OThe total combined maximum number of recognizable audio
and picture contents and groups:

4000 audio and picture contents and 400 groups.
OCompatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
(9) JPEG
OExif Ver 2.1 JPEG Baseline files

.The total combined maximum number of recognizable audio
and picture contents and groups:

4000 audio and picture contents and 400 groups.
.Picture resolution:

between 320x240 and
6144x4096 pixels

(sub sampling is 4:22 or 4:2:0)
(1o) HighMAT Level 2 (Audio and Image)
Video output:

Output level: 1 Vp-p (75 0)
Output terminal: Pin jack
Number of terminal: 1 system

5 video output:
Y output level: 1 Vp-p (759)

C output level: NTSC: 0.286Vp-p (759)
(DVD-827PLA/PX only)
PAL; 0.300Vp-p (759)
(except DVD-$27PLA/PX)
Output terminal: 8 terminal (1 system)

Component video output (480PI480I):
(DVD-527PLAIPXonIy)
(NTSC:480PI480I, PAL:576I):
(exceptDVD-827PLAIPX)

1 Vp-p (75:2)

0.7 Vp-p (75 Q)

0.7 Vp-p (75 :2)

Pin jack

(Y:green, PB :blue, PR :red)

Y output level:

PB output level:

PR output level

Output terminal:

Number of terminal: 1 system

Audio output:
Output level: 2 Vrms (1 kHz, 0 dB)

Output terminal: Pin jack

Number of terminal
2 channel: 1 system

Audio performance:
(1) Frequency response:
ODVD (linear audio): 4 Hz-22 kHz (48 kHz sampling)

4 Hz-44 kHz (96 kHz sampling)

OCD audio: 4 Hz-20 kHz
(2) S/N ratio:
OCD audio: 115 dB
(3) Dynamic range:
ODVD (linear audio): 100 dB
OCD audio: 98 dB
(4) Total harmonic distortion:
OCD audio: 0.0025 %
Digital audio output:
Coaxial digital output: Pin jack
Pickup
Wave length: 662 nm/785 nm

Laser power: CLASS 2/ CLASS 3A
Power consumption in standby mode:

1 W
Solder:

This model uses lead free solder (PbF).

Note:
Specifications are subject to change without notice.
Mass and dimensions are approximate.

MPEG Layoroa 3:268) decoding technology licensed trom Fraunhofer
llS and Morrison mottimodia.

Modems Media, and the Whom logo are

83mm. or registered trademarks oi .
Microsolt Corporation in the United Scam and! .
or other countries: . ...
WMA ls a compression format developed by W,
Mason Corporaficn. I! achieves the same W
unalfiyss MPG mm medmthatés m
smaller than that of MP3.
H ! C5 H nghMAT and the HSQWAT togo are either
m~mff trademarks or registered trademarks c?
Microsctt Corporation in the United States and!
or other countries.
I Built-in decoders u . c x r A t
You can play discs with mesa symbols) an
O i 6 l 'l' A t.
S U l i CI U N b

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced protessional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
