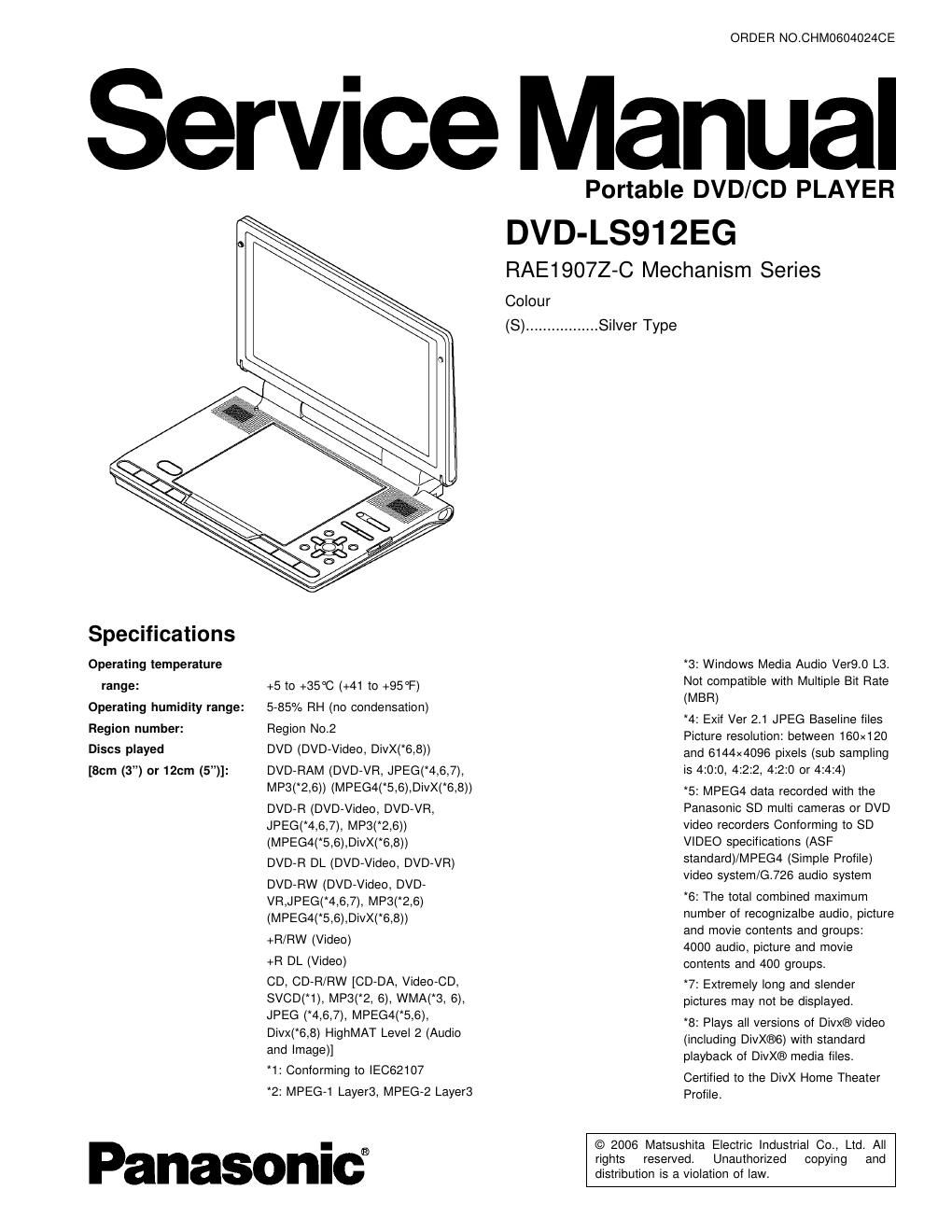

Page 1

ORDER NO.CHM0604024CE

Service Manual

Portable DVD/CD PLAYER
DVD-L8912EG

RAE1907Z-C Mechanism Series

Colour
(8) ................. Silver Type

Specifications
Operating temperature

range: +5 to +35°C (+41 to +95°F)
Operating humidity range: 5-85% RH (no condensation)
Region number: Region No.2
Discs played DVD (DVD-Video, DivX(6,8))
[80m (3") or 12cm (5")]: DVD-RAM (DVD-VR, JPEG("4,6,7),

MP3(2,6)) (MPEG4(5,6),DivX(6,8))
DVD-Fl (DVD-Video, DVD-VFl,
JPEG(4,6,7), MP3(2,6))
(MPEG4(5,6),DivX(6,8))

DVD-Fl DL (DVD-Video, DVD-VR)
DVD-RW (DVD-Video, DVD-
VR,JPEG(*4,6,7), MP3(2,6)
(MPEG4(5,6),DivX(6,8))

+Fl/FlW (Video)

+Ft DL (Video)

CD, CD-R/RW [CD-DA, Video-CD,
SVCD(1), MP3("2, 6), WMA(3, 6),
JPEG (4,6,7), MPEG4(5,6),
Divx(6,8) HighMAT Level 2 (Audio
and Image)]

1: Conforming to IE062107

2: MPEG-1 Layers, MPEG-2 Layer3

Panasonici

3: Windows Media Audio Ver9.0 L3.
Not compatible with Multiple Bit Rate
(MBR)

*4: Exit Ver 2.1 JPEG Baseline liles
Picture resolution: between 160x120
and 6144x4096 pixels (sub sampling
is 420:0, 4:2:2, 4:2:0 or 4:4:4)

*5: MPEGA data recorded with the
Panasonic SD multi cameras or DVD
video recorders Conforming to SD
VIDEO specifications (ASF
standard)/MPEG4 (Simple Profile)
video system/(5.726 audio system

6: The total combined maximum
number of recognizalbe audio, picture
and movie contents and groups:
4000 audio, picture and movie
contents and 400 groups.

*7: Extremely long and slender
pictures may not be displayed.

8: Plays all versions of Divx® video
(including DivX®6) with standard
playback of DivX® media files.

Certilied to the DivX Home Theater
Prolile.
