Extracted text from panasonic dvd ls 87 eg service manual (Ocr-read)

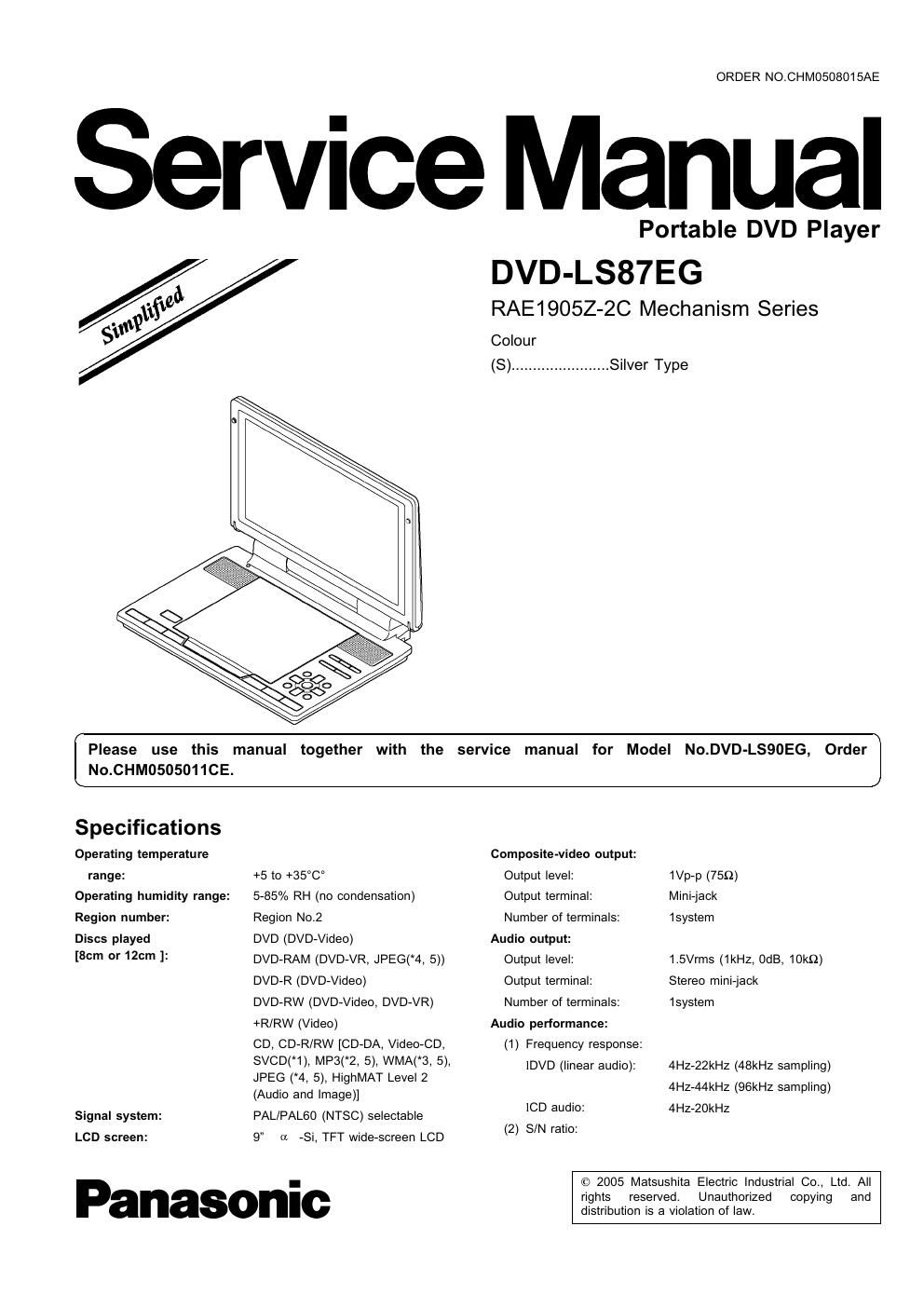

Page 1
lCD audio: 115dB (3) Dynamic range: lDVD (linear audio): 98dB lCD audio: 97dB (4) Total harmonic distortion: lCD audio: 0.008% Digital audio output: Optical digital output: Mini optical terminal Number of terminals: 1system (also used for audio output) Pickup: Wavelength: 662nm/ 785nm (DVD/CD) Laser power: CLASS 3B/ CLASS 3B (DVD/CD) Powersupply: DC 12V (DC IN terminal) / DC 7.2V (Exclusive battery terminal) Power consumption (Using included AC adaptor): 13W (Unit only:10W) Power consumption in Standby mode (Using included AC adaptor): approx.0.5W Power consumption in Recharge mode (Using included AC adaptor): 13W AC adaptor: Power source: AC 100-240V, 50/60Hz Power consumption: 28W DC output: 12V, 1.5A Car DC adaptor: DC input: 12V, 20W DC output: 12V, 1.5A Battery pack CGR-H701 (lithium ion) : Voltage: 7.2V Capacity: 2150mAh Dimensions (excluding protrusions and battery): 235.4(W ) x 178.6(D) x 39.0*(H) mm *29.9mm at lowest point [D=179.3mm including battery] [H=46.7mm including battery] 1 Changes of -eplacement Parts List 3 Mass (including battery): 999g solder: This model uses lead free solder (PbF). Note Specifications are subject to change without notice. Mass and dimensions are approximate. *1: Conforming to IEC62107 *2: Compatible compression rate: between 32 kbps and 320 kbps *3: Compatible compression rate: between 48 kbps and 320 kbps *4: Exif Ver 2.1 JPEG Baseline files Picture resolution: between 320×240 and 6144×4096 pixels (sub sampling is 4:2:2 or 4:2:0) *5: The total combined maximum number of recognizalbe audio and picture contents and groups: 4000 audio and picture contents and 400 groups. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DTS and DTS 2.0+ Digital Out are trademarks of Digital Theater Systems, Inc. Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3. MPEG Layer-3 audio decoding technology licensed from Fraunhofer llS and Thomson multimedia. HighMAT™ and the HighMAT logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. CONTENTS Page 2 DVD-LS87EG
Page 2
1 Changes of Replacement Parts List Please refer to Replacemen t Parts List of original Service Manua l. Notes: *Important safety notice: Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc. are used. Whenreplacing any of components, be sure to use onlymanufactures specified parts shown in the parts list. *Warning: This product uses a laser diode. Refer to caution statements. *Capacity values are in microfarads (µF) unless specified otherwise, P=Pico -farads (pF), F=Farads (F). *Resistance values are in ohms, unless specified otherwise, 1K=1,000 (OHM), 1M=1,000k (OHM). *(IA), (IB), marks in Remarks indicate languages of instruction manuals. [(IA): German/French, (IB):English .] *All parts are supplie d by S.P.C.. Ref. No. Change of Parts No. Part Name & Description Pcs. Remarks DVD-LS90EG-S DVD-LS87EG-S 21 RML0700 RML0700-1 LOCK LEVER 1 25 XQN17+BG4FN XQN17+BG4FNJ SCREW 16 34 RKF0732-S RKF0732F-S DISC COVER 1 54 RGN2836E-S RGN2836H-S NAME PLATE 1 A5 RFEA213W-W RFEA213W -2W AC ADAPTOR 1 A7 RQT8069-D RQT8277-D OPERATING INSTRUCTIONS 1 (IA) A7 RQT8071-B RQT8276-B OPERATING INSTRUCTIONS 1 (IB) C6005 F1J0J1060010 ECJ2FB1E105K 25V 1U 1 PC1 RPK2308 RPK2350 PACKING CASE 1 R5211 ERJ3GEYJ 2R2 D0GB2R2JA057 1/10W 2.2 1 R5215 ERJ3GEYJ 2R2 D0GB2R2JA057 1/10W 2.2 1 3 DVD-LS87EG
