Page 1

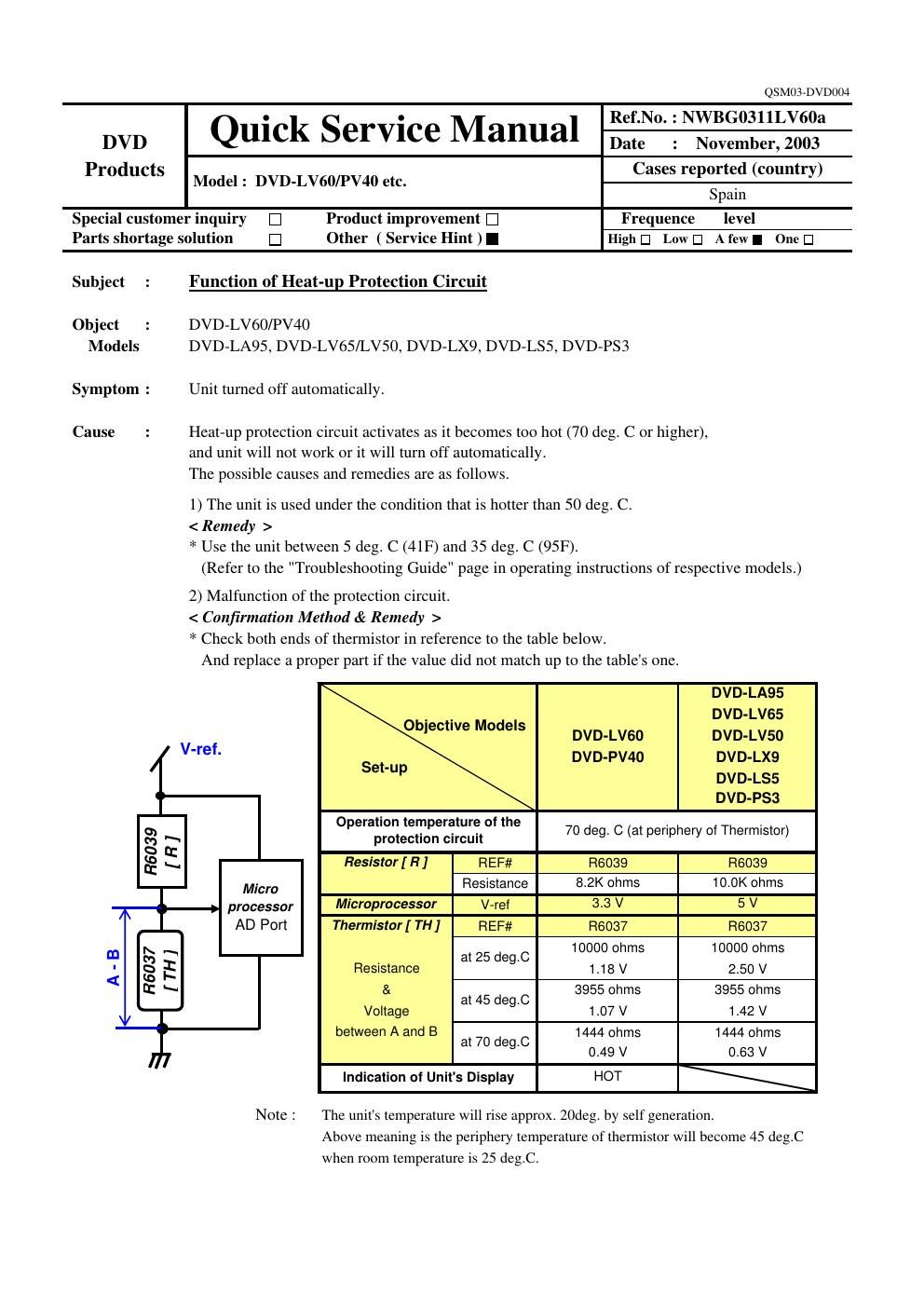

QSM03»DVD004

o 0 Ref.N0. : NWBG0311LV603
DVD QuICk seerce Manual Date : November, 2003
Pr Cases re orted countr
duets Model : DVD-LV60/PV40 etc. p y ( y)
Spain
Special customer inquiry El Product improvement [I Frequence level
Parts shortage solution El Other ( Service Hint). High |:| Low D A few I One |:|
Subject Function of Heat-up Protection Circuit
Object : DVD-LV60/PV40
Models DVD-LA95, DVD~LV65ILV50, DVDuLX9, DVD-LSS, DVD-PS3
Symptom : Unit turned off automatically.
Cause : Heat-up protection circuit activates as it becomes too hot (70 deg. C or higher),
and unit will not work or it will turn off automatically.
The possible causes and remedies are as follows.
1) The unit is used under the condition that is hotter than 50 deg. C.
< Remedy >
* Use the unit between 5 deg. C (41F) and 35 deg. C (95F).
(Refer to the "Troubleshooting Guide" page in operating instructions of respective models.)
2) Malfunction of the protection circuit.
< Confirmation Method & Remedy >
* Check both ends of thermistor in reference to the table below.
And replace a proper part if the value did not match up to the table's one.
V-ref.
§ E
g -..
Micro
+ processor
AD Port . .
m l\ N 2 . 10000 ohms 10000 ohms
- §E at Sdegc 1.18V 2.5ov
< I: '~ 3955 ohms 3955 ohms
at 45 deg.C
1.07 V 1.42 V
1444 ohms 1444 ohms
I; a 70 deg'c 0.49 v 0.63 v
Indication of Unit's Display HOT \
Note : The unit's temperature will rise approx. 20deg. by self generation,

Above meaning is the periphery temperature of thermistor will become 45 deg.C

when room temperature is 25 deg,C.
