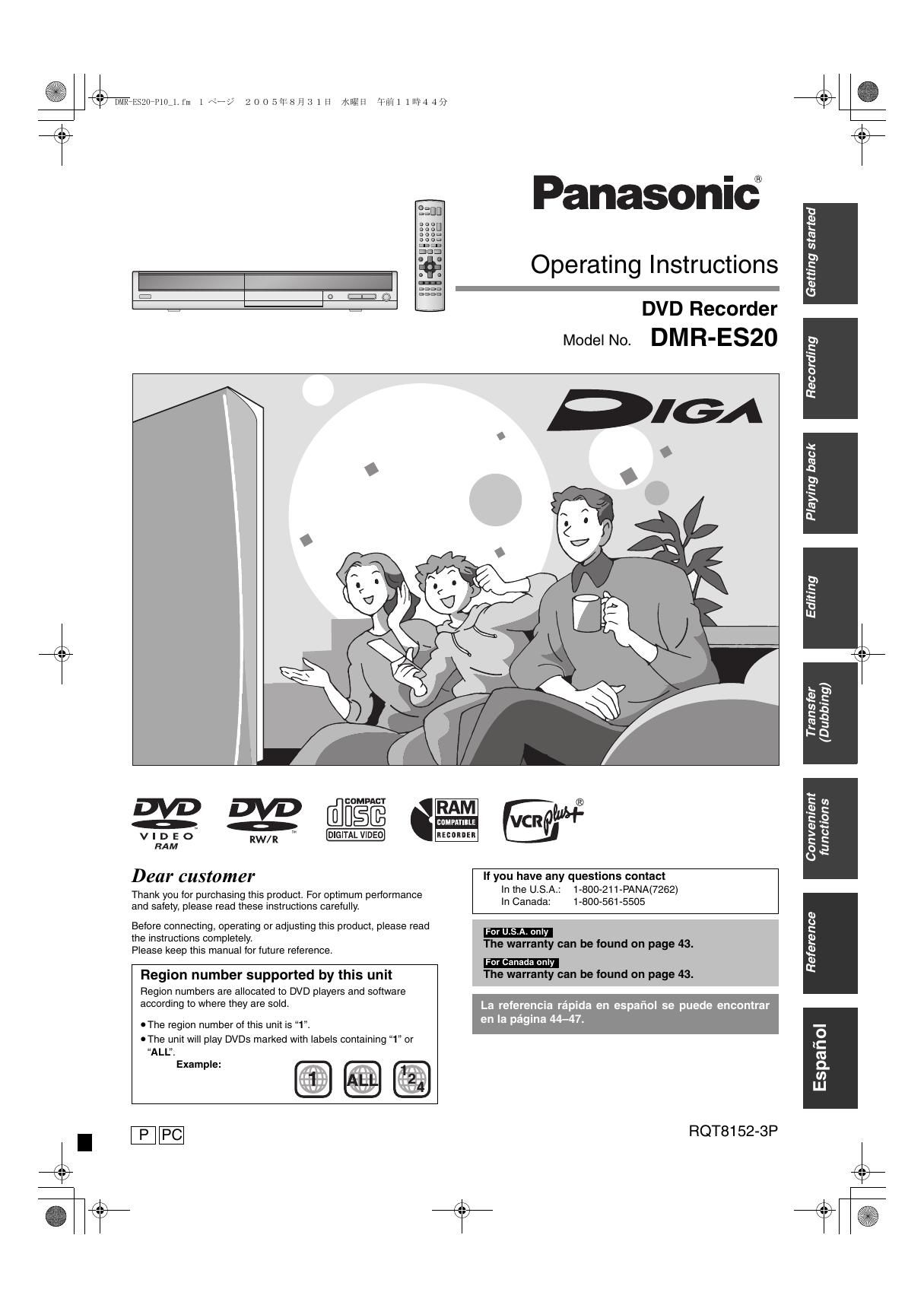

Panasonic dmr es 20 owners manual
This is the 48 pages manual for panasonic dmr es 20 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic dmr es 20 owners manual (Ocr-read)
Page 1
RQT8152 2 Getting started The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. WA R N I N G : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. THE FOLLOWING APPLIES ONLY IN THE U.S.A. Note to CATV system installer: This reminder is provided to call the CATV system installers attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. IMPORTANT SAFETY INSTRUCTIONS This DVD recorder records high quality images to rapid random access capable DVD-RAM media. This has resulted in many new features that outperform older tape formats. The following information summarizes a few of these features. Quick StartAbout 1 Sec. after turning on the unit, you can start recording to DVD-RAM. Instant recordingYou no longer need to search for empty disc space. By pressing the recording button, the unit finds available recording space and begins recording right away. There is no need to worry about overwriting already recorded content. Instant playThere is no need to rewind or search forward. Direct Navigator guides you to the beginning of the recorded video immediately. Chasing playbackThere is no need to wait until recording is complete. Without stopping recording, you can play the video currently being recorded from its beginning. Simultaneous Recording and PlaybackWhile recording, you can play another video program that was recorded previously. Time SlipDuring play and also while recording, you can jump to the scene you wish to view by specifying the skip time. Useful features (Inside of product) DMR-ES20-P10_1.fm 2 ページ ２００５年８月３１日 水曜日 午前１１時４４分
Page 2
RQT8152 3 Getting started Table of contents IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . 2 Useful features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 The remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Disc information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 STEP 1 Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 STEP 2 Plug-in Auto Tuning . . . . . . . . . . . . . . . . . . . . . .10 STEP 3 Channel settings . . . . . . . . . . . . . . . . . . . . . . . . . 12 STEP 4 Set up to match your television and remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Recording television programs . . . . . . . . . . . . . . . . . . . . 15 Selecting audio to be recorded . . . . . . . . . . . . . . . . . . . . . . . . 16 Playing while you are recording . . . . . . . . . . . . . . . . . . . . . . . 17 Flexible Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Scheduled recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Using VCR Plus+ ® system to make scheduled recordings . . . 18 Manually programming scheduled recordings . . . . . . . . . . . . 19 Check, change or delete a program . . . . . . . . . . . . . . . . . . . . 19 Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Changing audio during play . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Operations during play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Editing operations during play . . . . . . . . . . . . . . . . . . . . . . . . 21 Using menus to play MP3 and still pictures (JPEG) . . . . . . . . . . . . . . . . . . . . . . . 22 Playing MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Playing still pictures (JPEG) . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using on-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Disc menu–Setting disc content . . . . . . . . . . . . . . . . . . . . . . . 24 Play menu–Change play sequence . . . . . . . . . . . . . . . . . . . . 24 Video menu–Change picture quality. . . . . . . . . . . . . . . . . . . . 25 Audio menu–Change sound effect . . . . . . . . . . . . . . . . . . . . . 25 Other menu–Change the display position. . . . . . . . . . . . . . . . 25 FUNCTIONS window and Status messages . . . . . . . . . . 25 FUNCTIONS window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Editing titles/chapters . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Editing titles/chapters and playing chapters . . . . . . . . . . . . . . 26 Title operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Playing playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Playing playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 View Chapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Recording from a video cassette recorder . . . . . . . . . . 29 Manual recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 DV automatic recording (DV AUTO RECORDING) . . . . . . . . . 29 Disc management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Setting the protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Providing a disc with a name. . . . . . . . . . . . . . . . . . . . . . . . . . 30 Erasing all titles–Erase All Titles . . . . . . . . . . . . . . . . . . . . . . . 30 Erasing all contents of a disc–Format Disc . . . . . . . . . . . . . . . 30 Enabling DVD-R, DVD-RW (DVD-Video format) or +R to be played on other equipment–Finalize . . . . . . . . . . . . . . . . . . . . 31 Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Changing the units settings . . . . . . . . . . . . . . . . . . . . . 32 Summary of settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Clock settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Frequently asked questions . . . . . . . . . . . . . . . . . . . . . 37 Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Disc handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Unit care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Product Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Limited Warranty (ONLY FOR U.S.A.) . . . . . . . . . . . . . . 43 Limited Warranty (ONLY FOR CANADA) . . . . . . . . . . . . 43 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (Product numbers correct as of June 2005. These may be subject to change.) Only for U.S.A.: To order accessories, refer to Accessory Purchases on page 43. Only for Canada: To order accessories, call the dealer from whom you have made your purchase. (U.S.A. only) Product Registration Card Please complete and return the included product registration card, or register via the Internet at: http://www.prodreg.com/panasonic/ nBatteries - Insert so the poles (+ and –) match those in the remote control. -Do not use rechargeable type batteries. -Do not mix old and new batteries. -Do not use different types at the same time. -Do not heat or expose to flame.-Do not take apart or short circuit. -Do not attempt to recharge alkaline or manganese batteries. -Do not use batteries if the covering has been peeled off.Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire. Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place. Note If you cannot operate the unit or television using the remote control after changing the batteries, please re-enter the codes (Ô page 14). Getting started Recording Playing back Editing Transfer (Dubbing) Convenient functions Reference Referencia rápida en español. . . . . . . . . . . . . . . . . . . . . 44 (Spanish Quick Reference) Accessories 1 Remote control (N2QAKB000055) 1 AC power supply cord (K2CB2CB00018)1 75 Ω coaxial cable (K2KZ2BA00001)2 Batteries for remote control 1 Audio/video cable (K2KA6BA00003) -For use with this unit only. Do not use it with other equipment. Also do not use the cords for other equipment with this unit. The remote control R6/LR6, AA 2020 30 307 m (23 feet) directly in front of the unitRemote control signal sensor nUse 1 DVD-RAM disc DMR-ES20-P10_1.fm 3 ページ ２００５年８月３１日 水曜日 午前１１時４４分
