Panasonic dmr e 65 owners manual
This is the 60 pages manual for panasonic dmr e 65 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic dmr e 65 owners manual (Ocr-read)

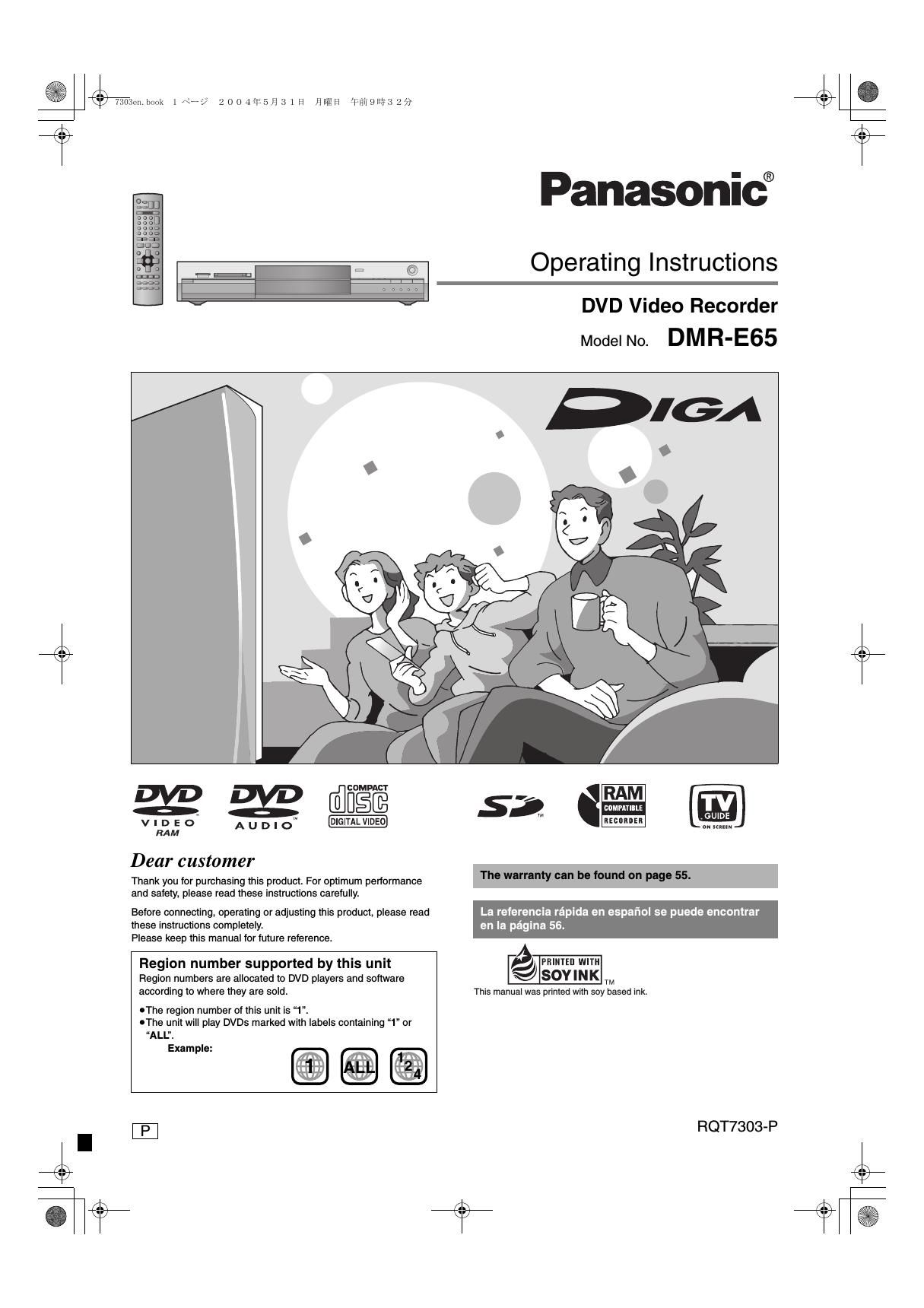

Page 1
2 RQT7303 Getting started Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. CAUTION! THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. Note to CATV system installer: This reminder is provided to call the CATV system installers attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. CAUTION! DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS. Keep the small memory cards such as the SD Memory Card out of reach of children. If swallowed, seek medical advice immediately. The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable. RQLS0233 - - - - - - - - - - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. DANGER (FDA 21 CFR) (IEC60825-1) VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. CAUTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS DOUVERTURE. EXPOSITION DANGEREUSE AU FAISCEAU. ATTENTION SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSÆTTELSE FOR STRÅLING. ADVARSEL AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. VA R O ! SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN. VARNING SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES. UNNGÅ EKSPONERING FOR STRÅLEN. ADVARSEL SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN. VORSICHT (Inside of product) FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ≥Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons. CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the ap- pliance. RISK OF ELECTRIC SHOCK DO NOT OPEN IMPORTANT SAFETY INSTRUCTIONS 7303en.book 2 ページ ２００４年５月３１日 月曜日 午前９時３２分
Page 2
3 RQT7303 Getting started Table of contents IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . 2 Useful features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 The remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 STEP 1 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 STEP 2Setting up the TV Guide On Screen TM system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 STEP 3 Set up to match your television and remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Disc and card information . . . . . . . . . . . . . . . . . . . . . . . .14 Recording television programs . . . . . . . . . . . . . . . . . . . . 16 Recording modes and approximate recording times . . . . . . . . 17 Selecting audio to record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Playing while you are recording . . . . . . . . . . . . . . . . . . . . . . . . 18 Flexible Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Using the TV Guide On Screen TM system to make timer recordings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Manually programming timer recordings . . . . . . . . . . . . . . . . . 20 Using VCR Plusi system to make timer recordings . . . . . . . . 21 Check, change or delete a program. . . . . . . . . . . . . . . . . . . . . 22 Utilizing TV Guide On Screen TM system . . . . . . . . . . . . . 23 Playing recorded video contents/ Playing play-only discs . . . . . . . . . . . . . . . . . . . . . . . . . 24 Operations during play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Editing operations during play . . . . . . . . . . . . . . . . . . . . . . . . . 26 Changing audio during play . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using menus to play MP3 . . . . . . . . . . . . . . . . . . . . . . . .27 Playing still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Useful functions during still picture play. . . . . . . . . . . . . . . . . . 29 Using on-screen menus and Status messages . . . . . . . 30 On-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Editing titles/chapters . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Editing titles/chapters and playing chapters. . . . . . . . . . . . . . . 32 Title operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Creating, editing and playing play lists . . . . . . . . . . . . .34 Creating play lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Editing and playing play lists/chapters . . . . . . . . . . . . . . . . . . . 35 Play list operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Editing still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Picture and folder operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37Transferring (dubbing) still pictures . . . . . . . . . . . . . . . 38 Transferring (dubbing) using the transferring (dubbing) list . . . 38 Transferring (dubbing) all the still pictures of a card onto a DVD-RAM-COPY ALL PICTURES . . . . . . . . . . . . . . . . . . . 39 Recording from a video cassette recorder . . . . . . . . . . 39 FUNCTIONS window . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Disc and card setting . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Setting the protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Providing a disc with a name . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Erasing all titles and play lists-Erase all titles . . . . . . . . . . . . . 41 Erasing all the contents of a disc or card-Format . . . . . . . . . . 41 Enabling DVD-R to be played on other equipment-Finalize . . 41 Changing the units settings . . . . . . . . . . . . . . . . . . . . . 42 Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Summary of settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Channel/Clock settings when TV Guide On Screen TM system is not used . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Auto channel/clock settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Channel captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Frequently asked questions . . . . . . . . . . . . . . . . . . . . . 49 Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Product Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Maintenance/Disc and card handling . . . . . . . . . . . . . . 54 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Backcover This DVD Video recorder records high quality images to rapid random access capable DVD-RAM. This has resulted in many new features that out perform older tape formats. The following information summarizes a few of these features. Instant recordingYou no longer need to search for empty disc space. By pressing the recording button, the unit finds available recording space and begins recording right away. There is no need to worry about overwriting already recorded content. SD/PC card slotsThis unit is equipped with interfaces that allow networking with digital equipment. ≥The SD/PC card slots of this unit let you transfer (dub) digital camera photographs from a card to DVD-RAM for easy storage without using a computer. TV Guide On Screen TM system The TV Guide On Screen TM system provides a handy electronic program guide (EPG) for checking whats on. Setting up to record a broadcast is easy too. Simply select the desired program from the displayed list. You can also search for desired programs alphabetically or by displaying only the programs in a certain category. ≥This service may not be available in some areas. Instant play There is no need to rewind or search forward. Direct Navigator guides you to the beginning of the recorded video immediately. Chasing playback There is no need to wait until recording is complete. Without stopping recording, you can play the video currently being recorded from its beginning. Simultaneous Recording and Playback While recording, you can play another video program that was recorded previously. Time Slip During play and also while recording, you can jump to the scene you wish to view by specifying the skip time. Getting started Recording Playing back Editing Transfer (Dubbing) Convenient functions Reference Guía de referencia rápida en español . . . . . . . . . . . . . 56 (Spanish Quick Reference) Useful features 7303en.book 3 ページ ２００４年５月３１日 月曜日 午前９時３２分
