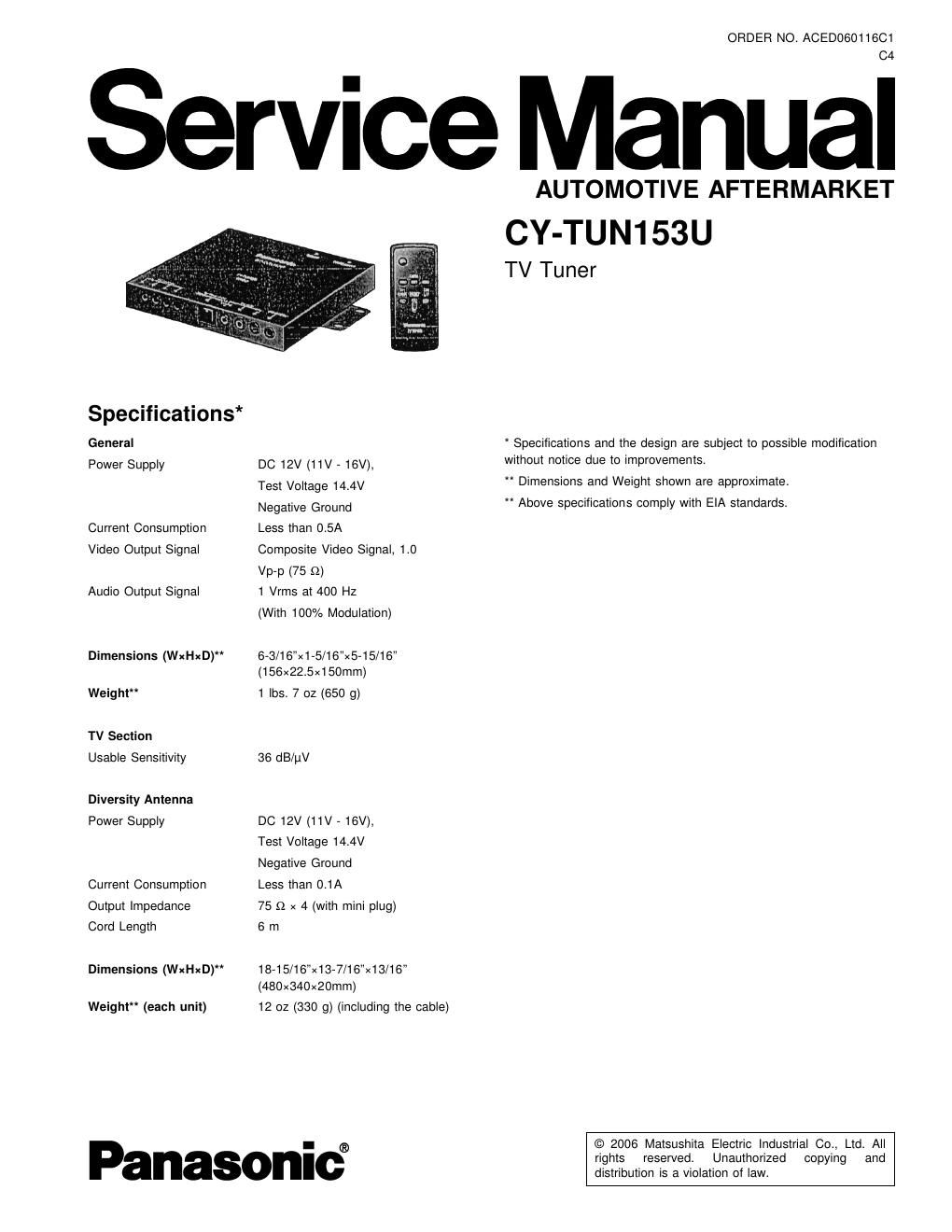

Page 1

ORDER NO. ACED06011601

Service Manual

Specifications*
General
Power Supply

Current Consumption
Video Output Signal

Audio Output Signal

Dimensions (WxHxD)"

Weight"

TV Section
Usable Sensitivity

Diversity Antenna
Power Supply

Current Consumption
Output Impedance
Cord Length

Dimensions (WxHxD)"

Weight" (each unit)

DC12V(11V - 16V),
Test Voltage 14.4V
Negative Ground

Less than 0.5A

Composite Video Signal, 1.0
Vp-p (75 n)

1 Vrms at 400 Hz

(With 100% Modulation)

6-3/16"x1-5/16"x5-15/16"
(156x22.5x150mm)

1 lbs. 7 oz (650 g)

36 dB/pV

DC12V(11V - 16V),
Test Voltage 14.4V
Negative Ground

Less than 0.1A

75 Q x 4 (with mini plug)
6 m

18-15/16"x13-7/16"x13/16"
(480x340x20mm)

12 oz (330 g) (including the cable)

Panasonic

AUTOMOTIVE AFTERMARKET
CY-TUN1 53U

TV Tuner

Specifications and the design are subject to possible modification
without notice due to improvements.

" Dimensions and Weight shown are approximate.
Above specifications comply with EIA standards.

© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

CV-TUN153U

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manufacturers specified pans to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

CONTENTS

Page
1 ABOUT LEAD FREE soLDER (PbF) ....................................... 2
2 FEATUERS .................... __ 2
3 REPLACEING THE FUS
4 DIMENSIONS .................
5 WIRING DIAGRAM .................................................................. 3

6 TERMINALS DESCRIPTION
7 IC BLOCK DIAGRAM --------

1 ABOUT LEAD FREE
SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF
stamp on the PCB.

Caution :

I Pb free solder has a higher melting point than standard
solder; Typically the melting point is 50 » 70°F (30 »
40°C) higher. Please use a soldering iron with
temperature control and adjust it to 700 1 20°F (370 :
10°C). In case of using high temperature soldering iron,
please be careful not to heat too long.

I Pb free solder will tend to splash when heated too high
(about 1100°F/600°C)

I This lead free solder will be used for the products after
serial No. 1,000,001.

2 FEATUERS

I Analog TV only

. Head Unit (The optional Head Unit: CQ»VD7003U, CQ-
VD6503U, etc.)

I Expansion Module (The optional Hub unit: CY-EM100U)

. Receiving NTSC video system only

I 4ch Diversity TV Antenna system

I 12 Preset channels for each bands

Page

8 PACKING PARTS LIST ------------------------------------------------------------ 7
9 REPLACEMENT PARTS LIST
1o EXPLODED VIEW
11 WIRING DIAGRAM
12 SCHEMATIC DIAGRAM --------------------------------------------------------- 17
13 BLOCK DIAGRAM ----------------------------------------------------------------- 19

3 REPLACEING THE FUSE

Use fuses of the same specified rating 3 amps. Using different
substitutes or fuses with higher ratings, or connecting the unit
directly without a fuse, could cause fire or damage to the stereo
unit.

4 DIMENSIONS

6-3/16

1-5/16
(22.5mm)
