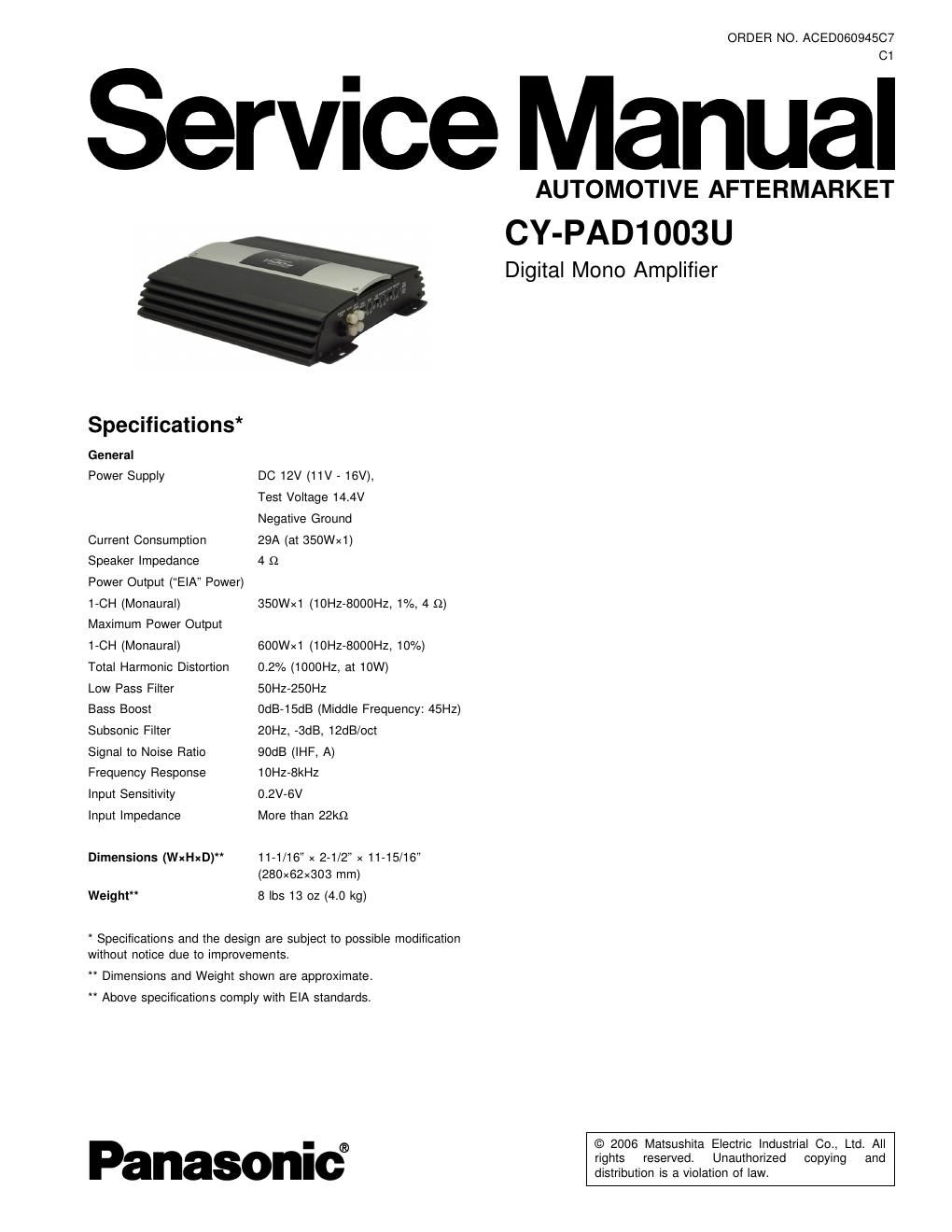

Page 1

ORDER NO. ACED06094SC7

Service Manual

AUTOMOTIVE AFTERMARKET
CY-PAD1003U

Digital Mono Amplifier

Specifications*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Current Consumption 29A (at 350Wx1)
Speaker Impedance 4 9
Power Output (EIA" Power)
1-CH (Monaural) 350W><1 (10HZ-8000HZ, 1%, 4 S2)
Maximum Power Output
1-CH (Monaural) 600Wx1 (10H2-8000HZ, 10%)
Total Harmonic Distortion 0.2% (1000Hz, at 10W)
Low Pass Filter 50Hz-250Hz
Bass Boost 0dB-15dB (Middle Frequency: 45Hz)
Subsonic Filter 20Hz, -3dB, 12dB/oct
Signal to Noise Ratio 90dB (IHF, A)
Frequency Response 10Hz-8kHz
Input Sensitivity 0.2V-6V
Input Impedance More than 22kg

Dimensions (waxor' 11-1/16" x 2-1/2" x 11-15/16"
(280x62x303 mm)

Weight" 8 lbs 13 oz (4.0 kg)

Specifications and the design are subject to possible modification
without notice due to improvements.

* Dimensions and Weight shown are approximate.
" Above specifications comply with EIA standards.

© 2006 Matsushita Electric Industrial Co., Ltd. All

- (3)
rights reserved. Unauthorized copying and
distribution is a violation 01 law.

Page 2

CV-PAD1003U

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manufacturers specified pans to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

CONTENTS

1 ABOUT LEAD FREE SOLDEFt (PbF
2 FEATUERs ------------------------------------
3 REPLACEING THE FUSE -------------------------------------------------------- 2
4 DIMENSIONS --------------------------------------------------------------------------- 2
5 WIRING CONNECTION --
e PACKING PARTS LIST--

1 ABOUT LEAD FREE
SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF
stamp on the PCB.

Caution :

0 Pb free solder has a higher melting point than standard
solder; Typically the melting point is 50 » 70°F (30 »
40°C) higher. Please use a soldering iron with
temperature control and adjust it to 700 t 20°F (370 :
10°C). In case of using high temperature soldering iron,
please be careful not to heat too long.

- Pb free solder will tend to splash when heated too high
(about 1100°F/600°C)

- This lead free solder will be used for the products after
serial No. 1,000,001.

2 FEATUERS

- 1100 W x 1channel maximum power output
- Low-Pass Filter for subwoofer

I Hight Level Speaker Input connection

. Bass boost control system

- Crossover Frequency Control

0 FICA output terminals

~5.1-channel Surround System (Combination with other
Panasonic car audio products)

7 REPLACEMENT PARTS LIST
8 EXPLODED VIEW (Unit) -------

9 WIRING DIAGRAM ................................................................. 11
1o SCHEMATIC DIAGRAM ......................................................... 17
11 BLOCK DIAGRAM ................................................................. 21

3 REPLACEING THE FUSE

Use fuses of the same specified rating 25 amps. Using different
substitutes or fuses with higher ratings, or connecting the unit
directly without a fuse. could cause fire or damage to the stereo
unit.

4 DIMENSIONS
