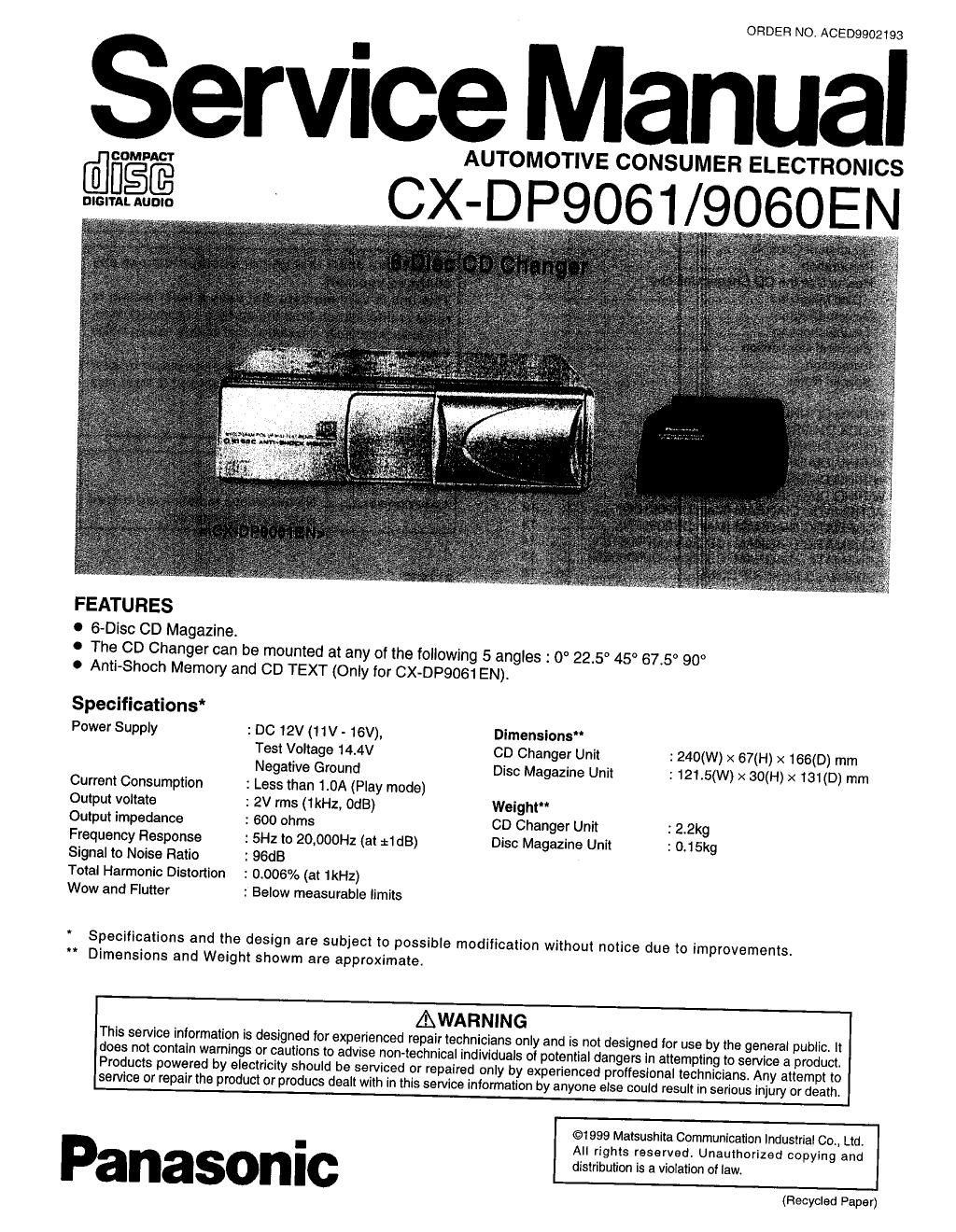

ORDER NO. ACE09902793

Service Manual

@cmmcr AUTOMOTIVE CONSUMER ELECTRONICS

Wise - CX-DP9061/906OEN

.; mmw-thxw
'95 W

.1

FEATURES

0 6-Disc CD Magazine.

0 The CD Changer can be mounted at any of the following 5 angles : 0" 22.5" 45° 67.5° 90°
0 Anti-Shoch Memory and CD TEXT (Only for CX~DP9061 EN).

Specifications"

Power Supply : DC 12V (11V - 16V), Dimensions
Test Voltage 14.4V CD Changer Unit : 240(W) x 67(H) x 166(0) mm
Negative Ground Disc Magazine Unit : 121.5(W) x 30(H) x 131 (D) mm

Current Consumption : Less than 1.0A (Play mode)

Output voltate : 2V rms (1kHz, OdB) Weight"

Output impedance : 600 ohms CD Changer Unit : 2.2kg

Frequency Response : 5Hz to 20,000Hz (at :1 dB) Disc Magazine Unit : 0.15kg

Signal to Noise Ratio : 96dB

Total Harmonic Distortion : 0.006% (at 1kHz)

Wow and Flutter : Below measurable limits

' Specifications and the design are subject to possible modification without notice due to improvements.
Dimensions and Weight showm are approximate.

AWARNING
This service inlormation is designed lor experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals ol potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced proffesional technicians. Any attempt to
service or repair the product or produce dealt with in this service infomation byanyone else could result in serious injury or death.

©1999 Matsushita Communication Industrial Co, Ltd.
All rights reserved. Unauthorized copying and

I
Pa n a son I c distribution is a violation or law.

(Recycled Paper)

Page 2

CX-D P9061 EN
CX-DP9060EN

CONTENTS

LASER PRODUCTS .
FUSE
EXTERI
DIMENSIONS .................
LABEL INDICATIONS AND THEIR LOCATIONS .

< OPERATING INSTRUCTIONS >
Location of Controls .
Preparation ...............
How to Use the CD Chager Unit and
Disc Magazine ..........
System Diagram...
Troubleshooting
Electrical Connection ..
Installation
Special Notes

WIRING CONNECTION.
BLOCK DIAGRAM ......

WIRING DIAGRAM (Main:DP9061 EN)
WIRING DIAGRAM (Main:DP9060EN)
WIRING DIAGRAM (CD Servo:DP9061E ..
WIRING DIAGRAM (CD ServozDP9060EN) .
SCHEMATIC DIAGRAM (MainzDP9061 EN) .
SCHEMATIC DIAGRAM (MainZDPQOGOEN)
SCHEMATIC DIAGRAM (CD ServozDP9061EN)
SCHEMATIC DIAGRAM (CD ServozDPQOBOEN)
TERMINALS DESCRIPTIONS

IC BLOCK DIAGRAM ............ .. 19, 20
REPLACEMENT PARTS LIST . 21, 22, 25 ~ 27
EXPLODED VIEW (Unit) .......... 23

EXPLODED VIEW (CD Deck)

DIMENSIONS

240mm

LASER PRODUCTS

Caution

This product utilizes a laser.

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.

Do not take apart this unit or attempt to make any
changes yourself.

This unit is very intricate that uses a laser pickup to
retrieve information from the surface of compact discs.
The laser is carefully shielded so that its rays remain Inside
the cabinet.

Therefore, never try to disassemble the player or alter
any of its parts since you may be exposed to laser rays
and dangerous voltages.

Laser products:
Wave Length
Laser power

780nm
No hazardous radiation is emitted
with safety protection.

FUSE

Be sure to use a fuse of the specified rating (3.15A) when
replacing a blown fuse. Fuses with higher capacity
ratings. use of any substitute. or connection without a
fuse may result in a fire hazard or damage to the unit.

EXTERIOR CLEANING

To clean the exterior of this unit, use a soft cloth to wipe
the surface. Do not use benzine. thinner, or any other
type of solvents.

Label Indications and Their Locations

DANGER inviscie laser radlltion Winn open.
AVOID DIRECT EXPOSURE TO BEAM.

, mtmemma
mammal...

A. mmsttIWI-mmm DECK
mwwnumvmim. Assv

CLASS 1
LASER PRODUCT

VAROt Avallansu ya
Sucaluknua ohllmteosu
olet amn- nl mam.
mlllelaswsfle ytin, Au
tam smmom

e VARNINGI Olynllg

(Located on the lap met.)

VORSICHT!

UNSICHTBAFIE LASER-

STRAHLUNG. wem 0'!an nit denna
(fol tr Bwrlad wit spévrafl

AeoEcKurte oEmeET A, u no Mum

NIcHr DEM STRAHL 8 mm -

AUSSETZEN

c ADVERsEu Ufiynllg
Iaaeralmlitlg Ml keel
ipnss 03 mkkarhedslfil
brytas. rings
nkepon-rtng for alrblan.
