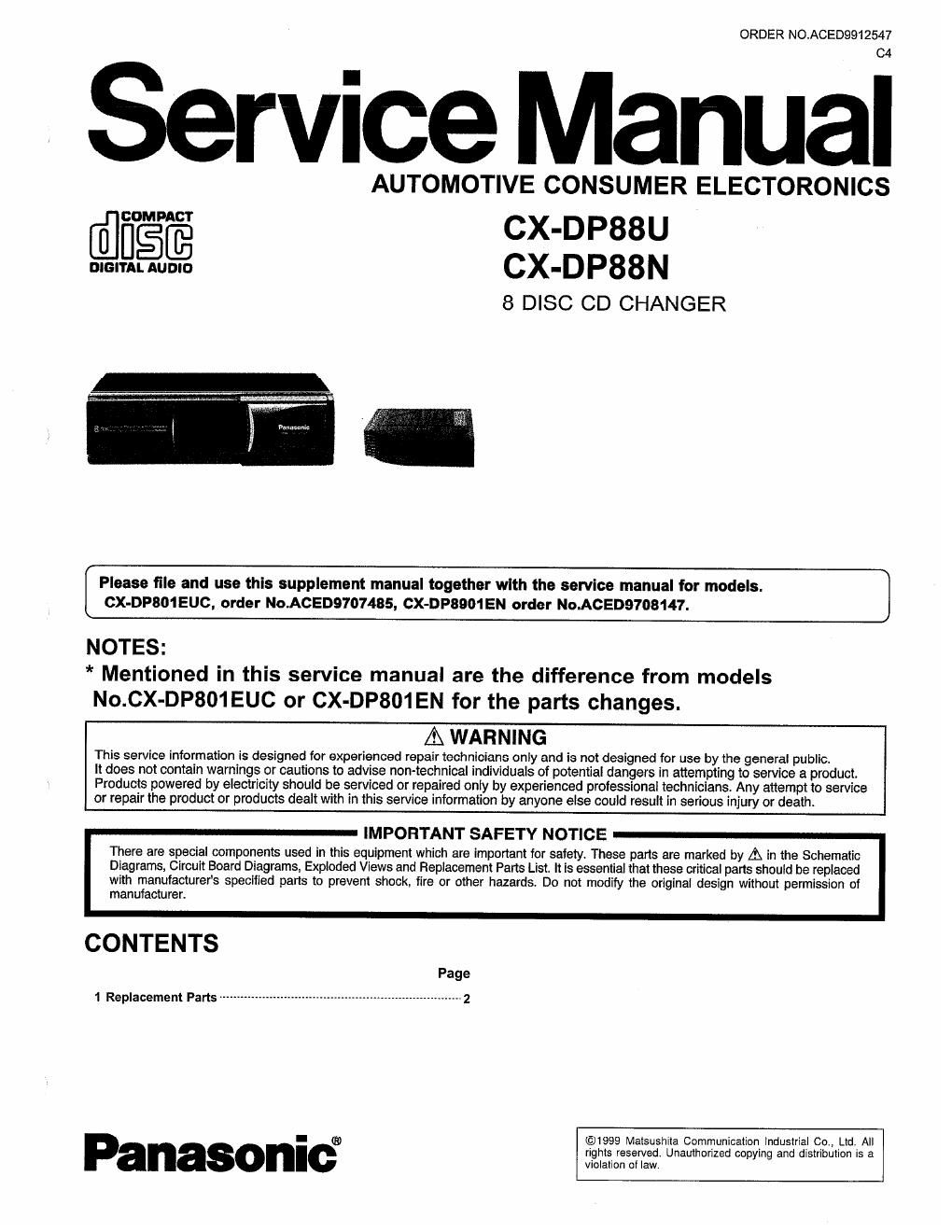

Panasonic cx dp 88 n service manual

Page 2

1 Replacement Parts

Note:

1.Besure to make your orders of replacement parts according to this list.
2. important safty notice: Components, idetified by A Mark have special characteristics important for safty. When replacing any

of these components. use only maunufactures specified parts.
3. Location keys in the remarks column indicates the general location of the parts shown in the exploded drawing, as in a road

map.

4. The marking (RTL) indicates that Retention Time is limited for this item. After the specific period of time. The retention period
of availability is dependent on the type of assembly, and in accordance with the laws governing part and product retention. After
the end of this period, the assembly will no longer be available.

5. "A" or B" marks in remarks column are as follows.

A: CX-DP88U
B: CX-DP88N
1.1. Accessories
PRINTING
Ref. No. Change of Part No. Part Name & Description Remarks
CX-DP801EUC/EN CX-DP88U/N
YEFM282765 YEFM283517 Operating Instructions A
YEFM282766 YEFM283516 Operating Instructions B
Installation Parts
Ref. No. Change of Part No. Part Name & Description Remarks
CX-DP801 EUC/EN CX-DP88U/N
YEAJO71212 YEAJ071373 Power Cord
YEAJ071211
1.2. Mechanical Parts
MISCELLA EOUS
Ref. No. Change of Part No, Part Name & Description Remarks
CX-DP801 EUC/EN CX-DP88U/N
YEFCOZ5482A YEF0026737 Escutcheon Assy
U-270

Printed in Japan (K)
1999.12
