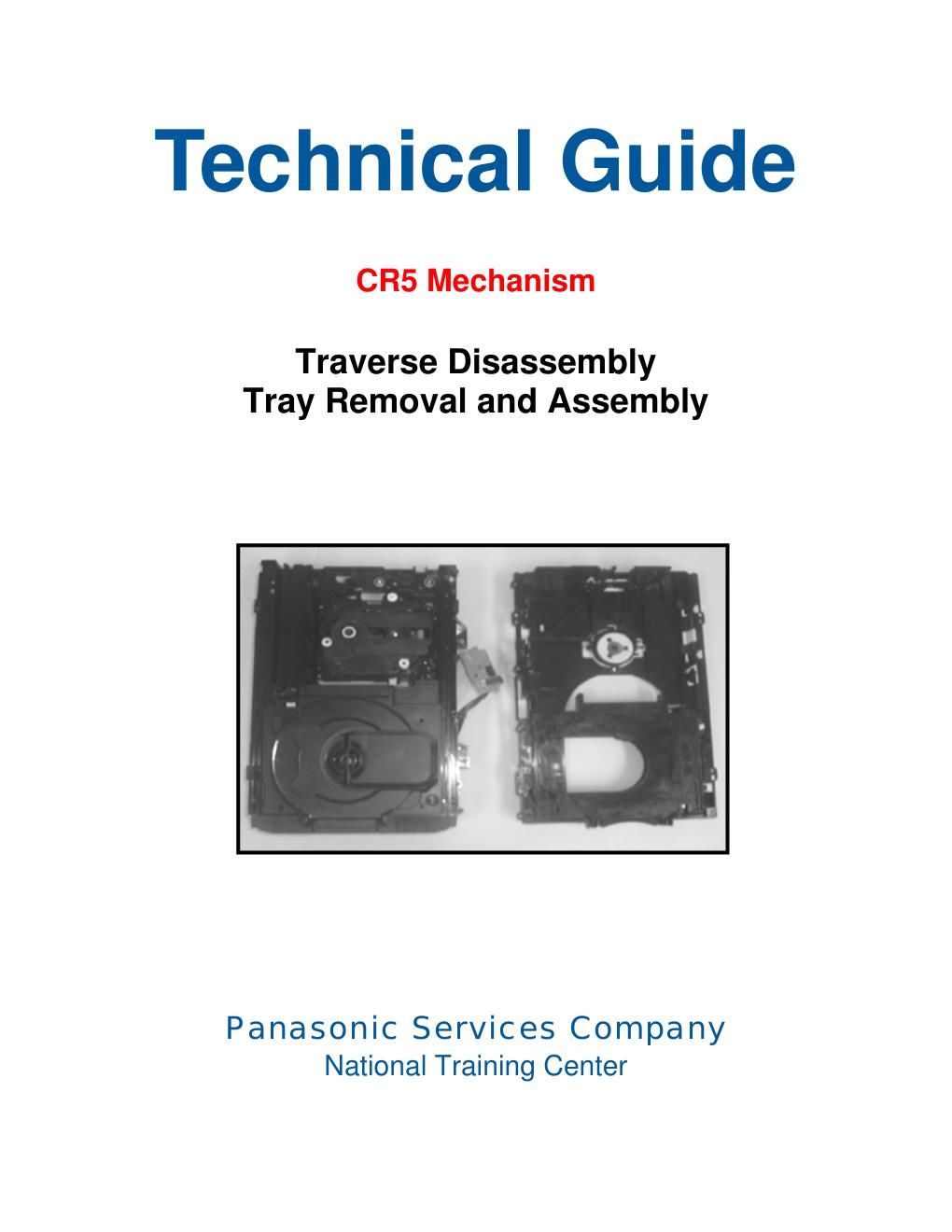

Panasonic cr 5 service manual

Page 2

CR5 Mechanism - The numbers in parenthesis are the Reference Numbers for the parts named. Traverse Unit Disassembly 1. Traverse should be in down position. All trays should be on the tray compartment side of the deck. 2. The deck should be placed upside down. 3. Apply backward and downward force on the front smaller post while pushing and holding the larger back post of the Slide Plate Lever 1 (320) forward in the direction of the arrow. See Figure 1. Figure 1 4. Pull up on the rear tab to release the two slide plate levers. See Figure 2. Figure 2
