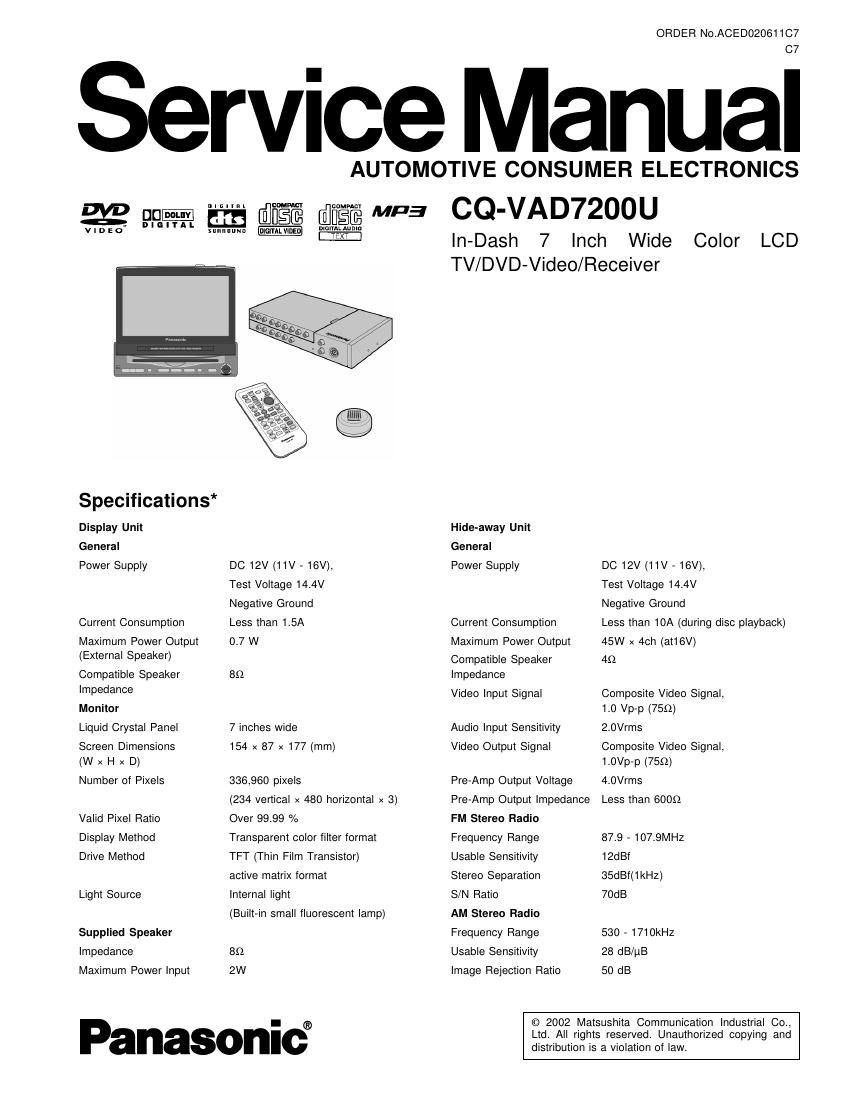

PANASONIC CQ VAD7200U LCD TV DVD SM

Page 1

ORDER No.ACED02061107

Service Manual

AUTOMOTIVE CONSUMER ELECTRONICS

sunnuuno

D-IGWIL mum

Specifications*

Display Unit
General
Power Supply

Current Consumption

Maximum Power Output
(External Speaker)

Compatible Speaker
Impedance

Monitor
Liquid Crystal Panel

Screen Dimensions
(w x H x D)

Number of Pixels

Valid Pixel Ratio
Display Method
Drive Method

Light Source
Supplied Speaker

Impedance
Maximum Power Input

DC 12v (11v - 16V),
Test Voltage 14.4V
Negative Ground
Less than 1.5A

0.7 W

89

7 inches wide
154 x 87 x 177 (mm)

336,960 pixels

(234 vertical x 480 horizontal x 3)
Over 99.99 "/o

Transparent color filter format
TFT (Thin Film Transistor)

active matrix format

Internal light

(Built-in small fluorescent lamp)

8S1
2W

Panasonic?

In- Dash 7

[awn-fl [are Mp3 CQ- vAD7200U

Inch Wide Color

LCD

TV/DVD-Video/Receiver

Hide-away Unit
General
Power Supply

Current Consumption
Maximum Power Output

Compatible Speaker
Impedance

Video Input Signal

Audio Input Sensitivity
Video Output Signal

Pre-Amp Output Voltage
Pre-Amp Output Impedance
FM Stereo Radio
Frequency Range
Usable Sensitivity
Stereo Separation

S/N Ratio

AM Stereo Radio
Frequency Range
Usable Sensitivity

Image Rejection Ratio

DC 12V (11V -16V),

Test Voltage 14.4V

Negative Ground

Less than 10A (during disc playback)
45w x 40h (at16V)

4!)

Composite Video Signal,
1.0 Vp-p (75o)

2.0Vrms

Composite Video Signal,
1.0Vp-p (75m

4.0Vrms
Less than 600!)

87.9 - 107.9MHz
12am

35dBf(1 kHz)
70dB

530 - 1710kHZ
28 dB/uB
50 dB

© 2002 Matsushita Communication Industrial Co,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
