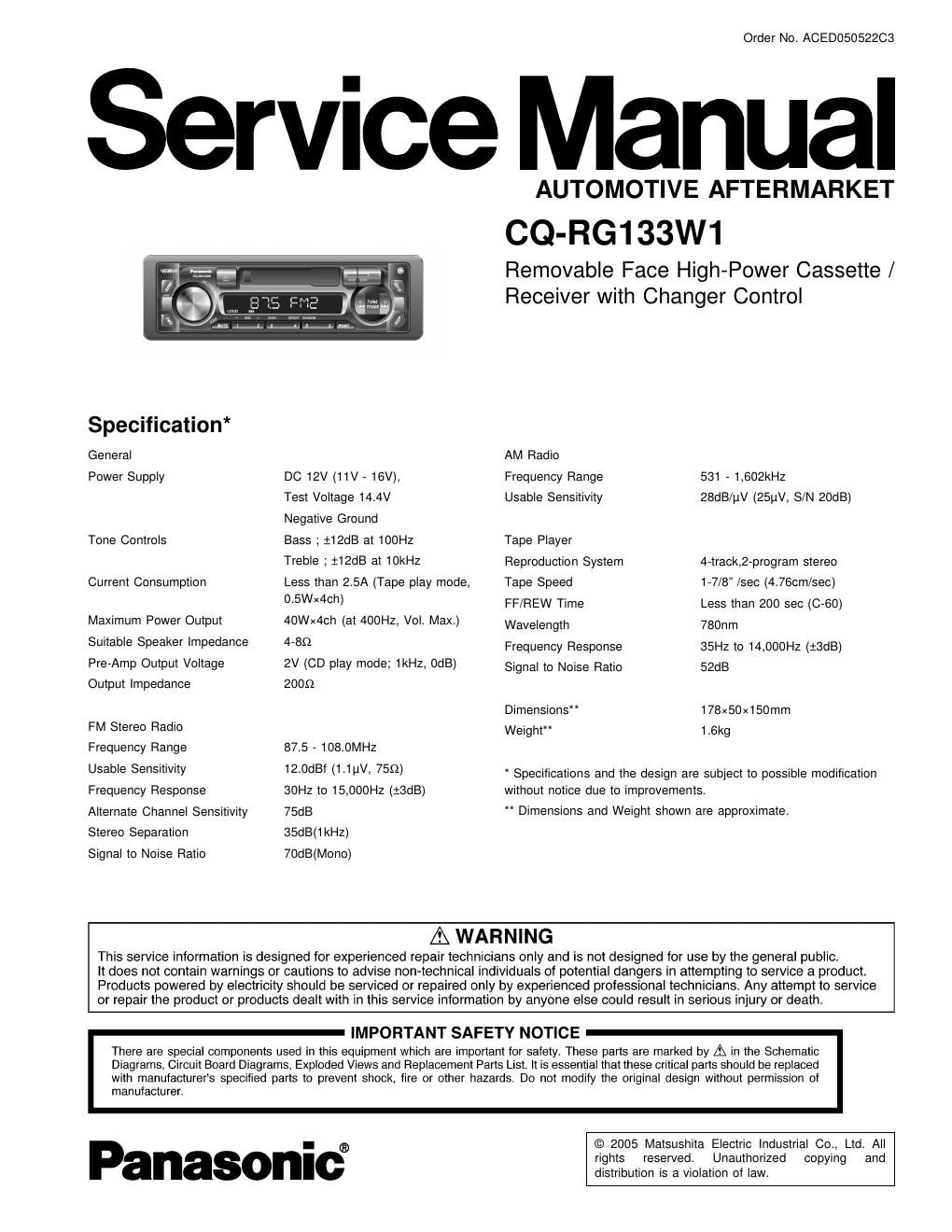

Page 1

Order No. ACED05052203

Service Manual

Specification*
General
Power Supply

Tone Controls

Current Consumption

Maximum Power Output
Suitable Speaker Impedance
Pre-Amp Output Voltage
Output Impedance

FM Stereo Radio

Frequency Range

Usable Sensitivity
Frequency Response
Alternate Channel Sensitivity
Stereo Separation

Signal to Noise Ratio

DC 12V (11V -16V),
Test Voltage 14.4V
Negative Ground

Bass ; :12dB at 100Hz
Treble ; :12dB at 10kHz

Less than 2.5A (Tape play mode,
0.5Wx4Ch)

40Wx4ch (at 400Hz, Vol. Max.)
4-8!)
2V (CD play mode; 1kHz, OdB)
2009

87.5 - 108.0MH2

12.0dBf (1.1uV, 759)
30Hz to 15,000Hz (:3dB)
75dB

35dB(1kHz)

70dB(Mono)

AUTOMOTIVE AFTERMARKET
CQ-RG1 33W1

Removable Face High-Power Cassette /
Receiver with Changer Control

AM Radio
Frequency Range
Usable Sensitivity

Tape Player
Reproduction System
Tape Speed
FF/REW Time
Wavelength
Frequency Response
Signal to Noise Ratio

Dimensions"
Weight

531 - 1,602kHz
28dB/pV (25w, S/N 20dB)

4-track,2-program stereo
1-7/8" /sec (4.76cm/sec)

Less than 200 sec (0-60)
780nm

35HZ to 14,000HZ (iSdB)
52dB

178x50x150mm
1.6kg

* Specifications and the design are subject to possible modification
without notice due to improvements.

Dimensions and Weight shown are approximate.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manufacturers specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

Panasonic?

© 2005 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

CG-RGISSWI

CONTENTS

Page
1 ABOUT LEAD FREE SOLDER (PbF) ....................................... 2
2 FEATURES -------------------
3 REPLACING THE FUSE
4 MAINTENANCE ....................................................................... 2
5 RADIO ALIGNMENT --
6 DIMENSIONS ---------
7 WIRING CONNECTION ------------------------------------------------------------ 3

8 BLOCK DIAGRAM ............
9 TERMINALS DESCRIPTION-

1 ABOUT LEAD FREE
SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF
stamp on the PCB.

Caution :

- Pb free solder has a higher melting point than standard
solder; Typically the melting point is 50 » 70°F (30 »
40°C) higher. Please use a soldering iron with
temperature control and adjust it to 700 1 20°F (370 :
10°C). In case of using high temperature soldering iron,
please be careful not to heat too long.

- Pb free solder will tend to splash when heated too high
(about 1100°F/600°C)

-This lead free solder will be used for the products after
serial No. 1,000,001.

2 FEATURES

- PLL (Phase Locked Loop) Synthesized Tuning

- 1D|N Size Body with Cassette Player,AM/FM Tuner, Power
AMP (30Wx4)

- 18-FM , 6-AM stations preset
-Auto preset and scan function
- CD Changer Control function

3 REPLACING THE FUSE

Be sure to use a fuse of the specified rating (10A) when
replacing a blown fuse. Fuses with higher capacity ratings.use
of any substitute. or connection without a fuse may result in a
fire hazard or damage to the unit.

4 MAINTENANCE

Your product is designed and manufactured to ensure a
minimum of maintenance. Use a soft cloth for routine exterior
cleaning. Never use benzine. or other solvent.

5 RADIO ALIGNMENT

Do not align the AM/FM package blocks. When the package
block is necessary, it will be supplied already aligned at the

Page
10 PACKAGE AND Ic BLOCK DIAGRAM ..................................... 6
11 REPLACEMENT PARTS LIST (UniI)- --B

12 EXPLODED VIEw (Unit) ............... 12
13 REPLACEMENT PARTS LIST (Tape Player Parts) ---------------- 13

14 EXPLODED VIEW (Tape Deck) -- ---15
15 WIRING DIAGRAM ................. ---1e
16 SCHEMATIC DIAGRAM -------------------------------------------------- 19
17 SCHEMATIC DIAGRAM for printing with A4 size ................. 21

factory.

6 DIMENSIONS
