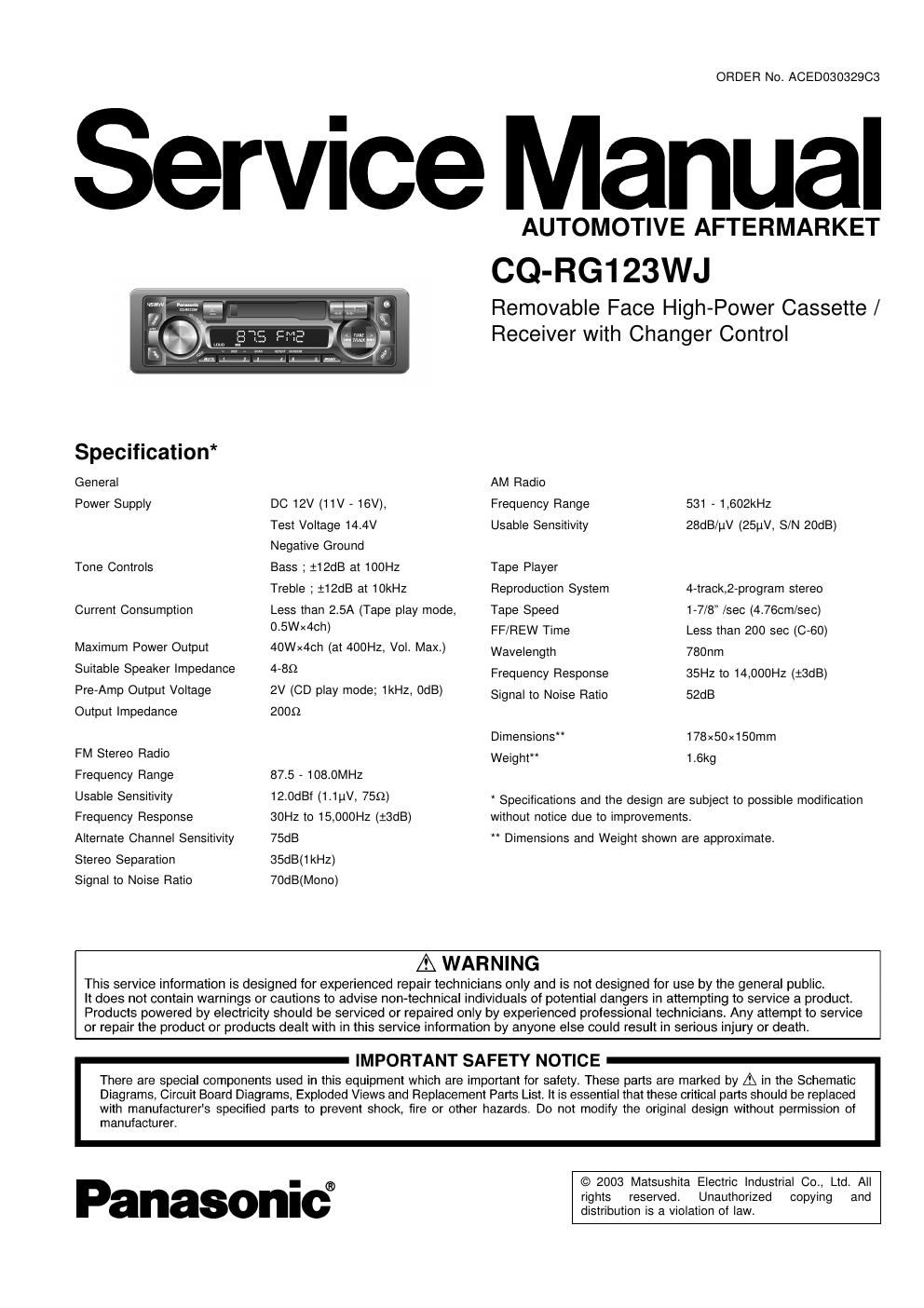

Panasonic cq rg 123 wj service manual
This is the 22 pages manual for panasonic cq rg 123 wj service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic cq rg 123 wj service manual (Ocr-read)
Page 2
CO-RG123WJ
CONTENTS
Page
1 FEATURES .............................................................................. 2
2 REPLACING THE FUSE-
3 MAINTENANCE
4 RADIO ALIGNMENT
5 DIMENSIONS ........................................................................... 2
6 WIRING CONNECTION
6.1. Main Block-1
6.2. Main Block-2 ------------------------------------------------------------------ 4
6.3. Display Block ................................................................. 5
7 SCHEMATIC DIAGRAM
7.1. Main Block -------- ..7
7.2. Display Block ................................................................. 8
8 WIRING CONNECTION ............................................................ 9
1 FEATURES
0 PLL (Phase Locked Loop) Synthesized Tuning
I 1DIN Size Body with Cassette Player,AM/FM Tuner, Power
AMP (30Wx4)
- 18-FM , 6-AM stations preset
- Auto preset and scan function
0 CD Changer Control function
2 REPLACING THE FUSE
Be sure to use a fuse of the specified rating (10A) when
replacing a blown fuse. Fuses with higher capacity ratings,use
of any substitute, or connection without a fuse may result in a
fire hazard or damage to the unit.
3 MAINTENANCE
Your product is designed and manufactured to ensure a
minimum of maintenance. Use a soft cloth for routine exterior
cleaning. Never use benzine, or other solvent.
4 RADIO ALIGNMENT
Do not align the AM/FM package blocks. When the package
block is necessary, it will be supplied already aligned at the
factory.
5 DIMENSIONS
Page
9 BLOCK DIAGRAM ................................................................. 10
10 TERMINALS DESCRIPTION
10.1. Main Block --
10.2. Display Block-
11 PACKAGE AND IC BLOCK DIAGRAM ................................... 12
12 REPLACEMENT PARTS LIST (Unit)
13 EXPLODED VIEW (Unit) -----------------
14 REPLACEMENT PARTS LIST (Tape Player Parts) ---------------- 19
15 EXPLODED VIEW (Tape Deck) .............................................. 21
16 SCHEMATIC DIAGRAM for printing with A4 size-
16.1. Main Block (Left Side) -------------------------------
16.2. Main Block (Right Side) ................................................ 23
