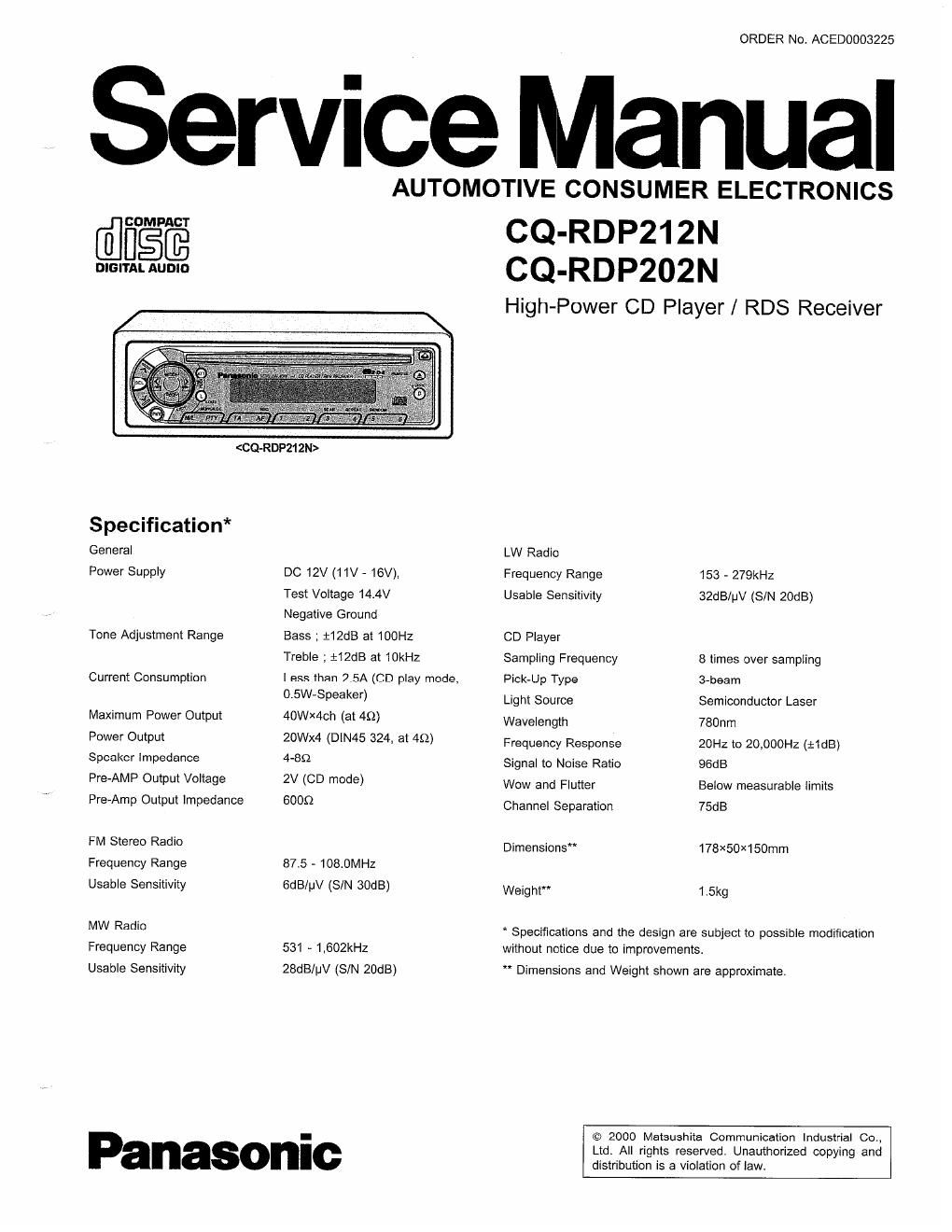

Panasonic cq rdp 212 n service manual

Page 2

CQ-RDP212N l CQ-RDPZUZN

& WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced

with manufacturers specified parts to prevent shock, fire or other hazards. Do not modify the original. design without permission of

man ufacturer.

CONTENTS

1 FEATUERS ---------------------
2 REPLACEING THE FUSE
3 MAINTENANCE .......................................................................... 2
4 NOTES 7777777

5 DIMENSIONS
6 OPERATING INSTRUCTIONS ...................
7 WIRING CONNECTION ............................................................... 9
s BLOCK DIAGRAM -------------
9 TERMINALS DESCRIPTION

1 F EATUERS

- PLL (Phase Locked Loop) synthesized tuning.
. 18-FM, G-AM presets with preset scan

- RDS (Radio Data System) function

- Digital servo for reliable CD playback.

2 REPLACEING THE FUSE

Use fuses of the same specified rating (15amps). Using
different substitutes or fuses with higher ratings, or connecting
the unit directly without a fuse, could cause fire or damage to
the stereo unit.

3 MAINTENANCE

Your products is designed and manufactured to ensure a
minimum of maintenance. Use a soft cloth for routine exterior
cleaning. Never use benzine, thinner or other solvents.

4 NOTES

[RADIO BLOCK]

Do not align the AM/FM package block. When the package
block is necessary, it will be supplied already aligned at the
factory.

[CD DECK BLOCK]

This model has no servo alignment points because
microcomputer controls the servo circuit.

[OTHER]

This operating instruction manual is for two models CQ-

RDP212N and CQ-RDP202N. The differences among these
models are mentioned below.

Page
10 PACKAGE AND 10 BLOCK DIAGRAM ------------------------------------- 13
11 REPLACEMENT PARTS LIST
12 EXPLODED VIEW (Unit) --------
13 co PLAYER PARTs ----------------------------------------------------------------- 22
14 EXPLODED VIEW (CD Deck)
15 WIRING DIAGRAM --------------
16 SCHEMATIC DIAGRAM (1) -------------------------

17 SCHEMATIC DIAGRAM (2) ------------------------------------------------------- 31
CQ-RDPZIZN CQ-RDPZOZN
Illumination Colors Amber Green
5 DIM ENSIONS
4 178mm h
milmm
50mm
