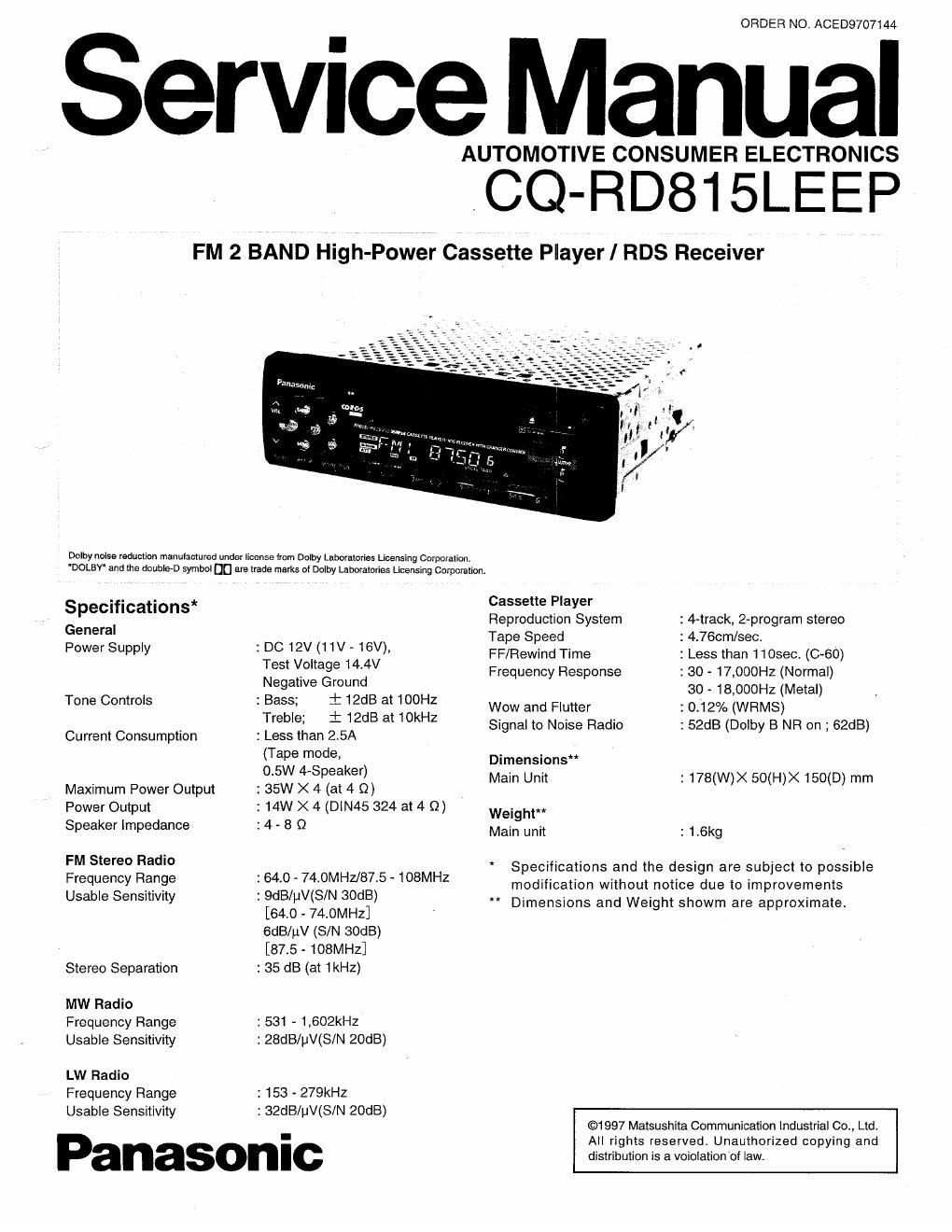

Panasonic cq rd 815 leep service manual

Page 2

CQ-RD815LEEP I

AWARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced profiesional technicians. Any attempt to
service or repairthe product or producs dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

DIMENSIONS ..
FEATURES
FUSE .............
MAINTENANCE
ALIGNMENT JIG .....

Page

_L_k-l-A-L

< OPERATING INSTRUCTIONS >
Power and Sound Controls ..
Radio Basics ........
RDS Reception
Cassette Tape Play Basics..
CD Changer Basics .......
Remote Control Basics ..
Anti-Theft System
Installation ..............
Electrical Connection .
Speaker Connections
ALIGNMENT INSTRUCTIO
ALIGNMENT POINTS
BLOCK DIAGRAM ........
SCHEMATIC DIAGRAM (DISPLAY).
WIRING DIAGRAM (DISPLAY) .
TERMINALS DESCRIPTION ..
IC BLOCK DIAGRAM....
SCHEMATIC DIAGRAM ( )
WIRING DIAGRAM (MAIN) ........
SCHEMATIC DIAGRAM (TAPE)
WIRING DIAGRAM (TAPE)
REPLACEMENT PARTS LIST
EXPLODED VIEW (UNIT)
EXPLODED VIEW (TAPE)

DIMENSIONS

178 mm
50 mm

150 mm

FEATURES .
o 24-Stations Preset (18-FM, 6-AM ).
0 Radio Data System (PS, AF, CT, Pl).
0 Dolby B NR Circuit.
0 CD Changer Control.
0 Electronic Control of Volume, Bass, Treble, Balance and Fader.
0 Warning Alarm System.
I Detachable Face Plate Security.

FUSE

Be sure to use a fuse of the specified rating (10A)
whenreplacing a blown fuse. Fuses with higher
capacity ratings. use of any substitute, or connection
without a fuse may result in a fire hazard or damage
to the unit.

MAINTENANCE

To clean the exterior of this unit, use a soft cloth to wipe
the surface. Do not use benzine, thinner, or any other type
of solvents.

ALIGNMENT JIG

o DOLBY NR ALIGNMENT;
Test Tape 2 RFKZOO38

WARNING!
Lithium batteries. Explosion danger.
Change of batteries must only be done by
qualified personnel and as described in the
service manual.
Furthermore, that the batteries must only be
changed with batteries of the same
manufacture and type.
