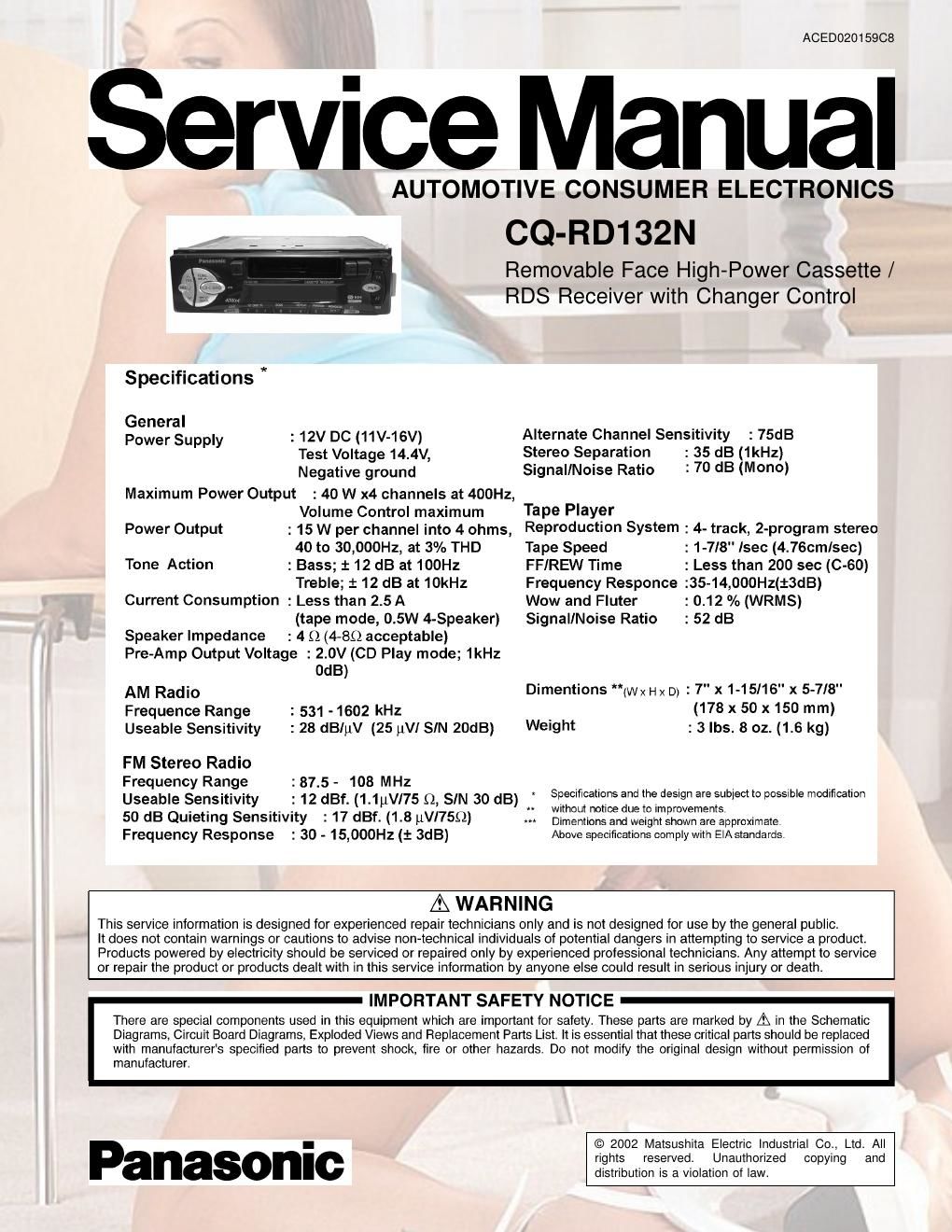

Page 1

ACED02015908

Service Manual

AUTOMOTIVE CONSUMER ELECTRONICS
CQ-FtD1 32N

Removable Face High-Power Cassette /
RDS Receiver with Changer Control

Specifications *

General _ _ _
Power Supply ; 12v DC (11v.1ev) Alternate Channel Sensmvrty : 75dB
Test Voltage 14_4v, Stereo Separation : 35 dB (1kHz)
Negative ground Signal/Noise Ratio 2 70 dB (M000)
Maximum Power Output : 40 W x4 channels at 400Hz,
Volume Control maximum Tape Player
Power Output : 15 W per channel into 4 ohms, RePVOductiOn System : 4- track, 2-program stereo
40 to 30,000Hz, at 3% THD Tape Speed : 14/8 Isec (4.76cm/sec)
Tone Action : Bass; t 12 dB at 100Hz FFIREW Time : Less than 200 sec (C-GO)
Treble; i 12 dB at 10kHz Frequency Responce :35-14,000Hz(i3dB)
Current Consumption : Less than 2.5 A Wow and Fluter : 0.12 % (WRMS)

(tape mode, 0.5W 4«Speaker) Signal/Noise Ratio : 52 dB
Speaker Impedance : 4 (2 (4-89 acceptable)
Pre-Amp Output Voltage : 2.0V (CD Play mode; 1kHz

OdB)
AM Radio Dimentions (va H x D) : 7" x 1<15116"x 5-7/8"
Frequence Range :531 - 1602 kHz _ (178 x 50 x 150 mm)
Useable Sensitivity : 28 dBIuV (25 uVl SIN 20dB) Weight : 3 lbs. 8 oz. (1.6 kg)
FM Stereo Radio
Frequency Range : 87.5 - 108 MHz , _ , _ . ,
Useable Sensitivity I 12 dBf. (1.1LLV/75 S2, SIN 30 dB) r Speatications and the design are subjectto possible modification
50 dB Quieting Sensitivity : 17 dBf. (1.8 iiw75o) .1'. 3:23;5:22;:jgggigggtzgig2pmWe
Frequency Response : 30 - 15,000Hz (i 3dB) Above Specifications comply with EIAstandards.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manufacturers specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

© 2002 Matsushita Electric Industrial Co., Ltd. All

-
P n I rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

CONTENTS

Page
1 FEATURES ------------------------------------------------------------------------------ 2
2 REPLACING THE FUSE ---------------------------------------------------------- 2

3 MAINTENANCE -------
4 RADIO ALIGNMENT
5 DIMENSIONS --------------------------------------------------------------------------- 2
6 WIRING CONNECTION
7 BLOCK DIAGRAM
8 TERMINALS DESCRIPTIO

8.1. Main Block --------------------------------------------------------------------- 5

8.2. Display Block
9 WIRING DIAGRAM --

1 FEATURES

a PLL (Phase Locked Loop) Synthesized Tuning

0 1D|N Size Body with Cassette Player,AM/FM Tuner, Power
AMP (30Wx4)

- 18-FM , 6-AM stations preset

- Auto preset and scan function

0 CD Changer Control function

- Radio Data System(PS.AF.CT.P1)

2 REPLACING THE FUSE

Be sure to use a fuse of the specified rating (10A) when
replacing a blown fuse. Fuses with higher capacity ratings,use
of any substitute, or connection without a fuse may result in a
fire hazard or damage to the unit.

3 MAINTENANCE

Your product is designed and manufactured to ensure a
minimum of maintenance. Use a soft cloth for routine exterior
cleaning. Never use benzine, or other solvent.

4 RADIO ALIGNMENT

Do not align the AM/FM package blocks. When the package
block is necessary, it will be supplied already aligned at the
factory.

5 DIMENSIONS

Page
9.1. Main Block-1 ------------------------------------------------------------------ 5
9.2. Main Block-2 ------------------------------------------------------------------ 7
9.3. Display Block---- --8

1o SCHEMATIC DIAGRAM --9
10.1. Main Block --------------------------------------------------------------------- 9
10.2. Display Block ---------------------------

11 PACKAGE AND Ic BLOCK DIAGRAM

12 REPLACEMENT PARTs LIST (Unit)

13 EXPLODED VIEw (Unit) -------------------------------------------------------- 16

14 REPLACEMENT PARTs LIST (Tape Player Parts

15 EXPLODED VIEw (Tape Deck) ---------------------------
