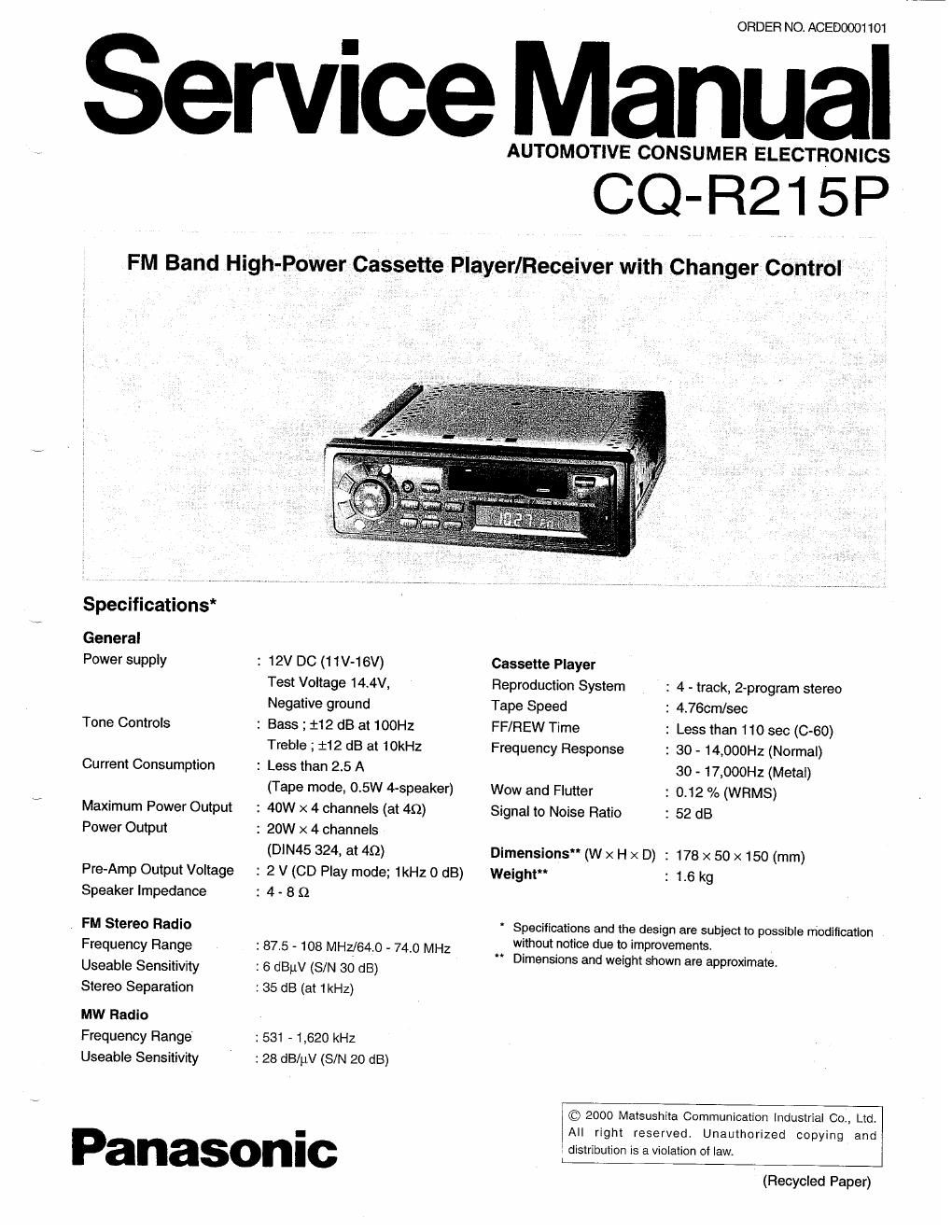

ORDER NO. ACEDOOOl 1 01

Service Manual

AUTOMOTIVE CONSUMER ELECTRONICS

CQ-R215P

FM Band High-Power CassettePlayer/Receiver with Changer Control

Specifications

General
Power supply

Tone Controls
Current Consumption

Maximum Power Output
Power Output

Pre-Amp Output Voltage
Speaker Impedance

FM Stereo Radio
Frequency Range
Useable Sensitivity
Stereo Separation

MW Radio
Frequency Range
Useable Sensitivity

: 12V DC (1 1V-16V)

Test Voltage 14.4V,
Negative ground

: Bass ; $12 dB at 100Hz

Treble ; $12 dB at 10kHz

: Less than 2.5 A

(Tape mode, 0.5W 4-speaker)

: 40W x 4 channels (at 49)
: 20W x 4 channels

(DIN45 324, at 40)

: 2 V (CD Play mode; 1kHz 0 dB)
: 4 - 8 Q

2 87.5 - 108 MHz/64.0 - 74.0 MHz
: 6 dBtLV (S/N 30 dB)
:35 dB (at 1kHZ)

: 531 - 1,620 kHz
: 28 dB/uv (S/N 20 dB)

Panasonic

Cassette Player

Reproduction System : 4 - track, 2~program stereo

Tape Speed : 4.76cm/sec
FF/FlEW Time : Less than 110 sec (0-60)
Frequency Response : 30 - 14,000Hz (Normal)

30 - 17.000Hz (Metal)

Wow and Flutter : 0,12 % (WFlMS)

Signal to Noise Ratio : 52 dB
Dimensions" (W x H x D) : 178 x 50 x 150 (mm)
Weight : 1.6 kg

" Specifications and the design are subject to possible modification
without notice due to improvements.
" Dimensions and weight shown are approximate.

© 2000 Matsushita Communication industrial Co, Ltd.
All right reserved. Unauthorized copying and
i distribution is a violation of law.

.

(Recycled Paper)

Page 2

CQ-R215P

public.
service a product.

AWARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the products dealt with in this service information by anyone else could result in serious injury or death

CONTENTS

FEATURES ....................
REPLACING THE FUSE
MAINTENANCE ....................
FIADIO BLOCK ALIGNMENT
DIMENSIONS ......................

_._a_t_a_t

Power and Sound Controls.
Radio Basics .......................
Cassette Tape Player Basics ..
CD Changer Basics ............
Clock Basics ..........
Anti-Theft System ..
Installation ..........
Electrical Connection
Speaker Connections ..
Troubleshooting ......................
Notes on SW Frequency Band

WIRING CONNECTION .
BLOCK DIAGRAM ..........
WIRING DIAGRAM (Tape Block)
WIRING DIAGRAM (Display Block) ,
WIRING DIAGRAM (Main Block) ........
SCHEMATIC DIAGRAM (Tape Block).
SCHEMATIC DIAGRAM (Display Block)
SCHEMATIC DIAGRAM (Main Block) .

TERMINALS DESCRIPTION ..............

PACKAGE AND IC BLOCK DIAGRAM ..
REPLACEMENT PARTS LIST (UNIT)
EXPLODED VIEW (Unit) .........................................
REPLACEMENT PARTS LIST (Tape Player Parts) . ..
EXPLODED VIEW (Tape Deck) ....................................... 23

comxioammmweeamlvm

_t_a
do

16
17 to 20

FEATURES

- PLL (Phase Locked Loop) Synthesized Tuning
- 1D|N Size Body with Cassette Player, AM
FM Tuner, Power AMP (40Xx4)
0 18-FM, 6-AM stations presed
- Auto preset and scan function
0 CD Changer Control function

REPLACING THE FUSE

Be sure to use a fuse of the specified rating (12A) when
replacing a blown fuse. Fuses with higher capacity
ratings, use of any substitute, or connection without a
fuse may result in a fire hazard or damage to the unit.

MAINTENANCE

' Your product is designed and manufactured to ensure a

minimum of maintenance. Use a soft cloth for routine
exterior cleaning. Never use benzine, thinner or other
solvent.

RADIO ALIGNMENT

Do not align the AM/FM package blocks. When the pack-
age block is necessary, it will be supplied already aligned
at the factory.

DIMENSIONS
