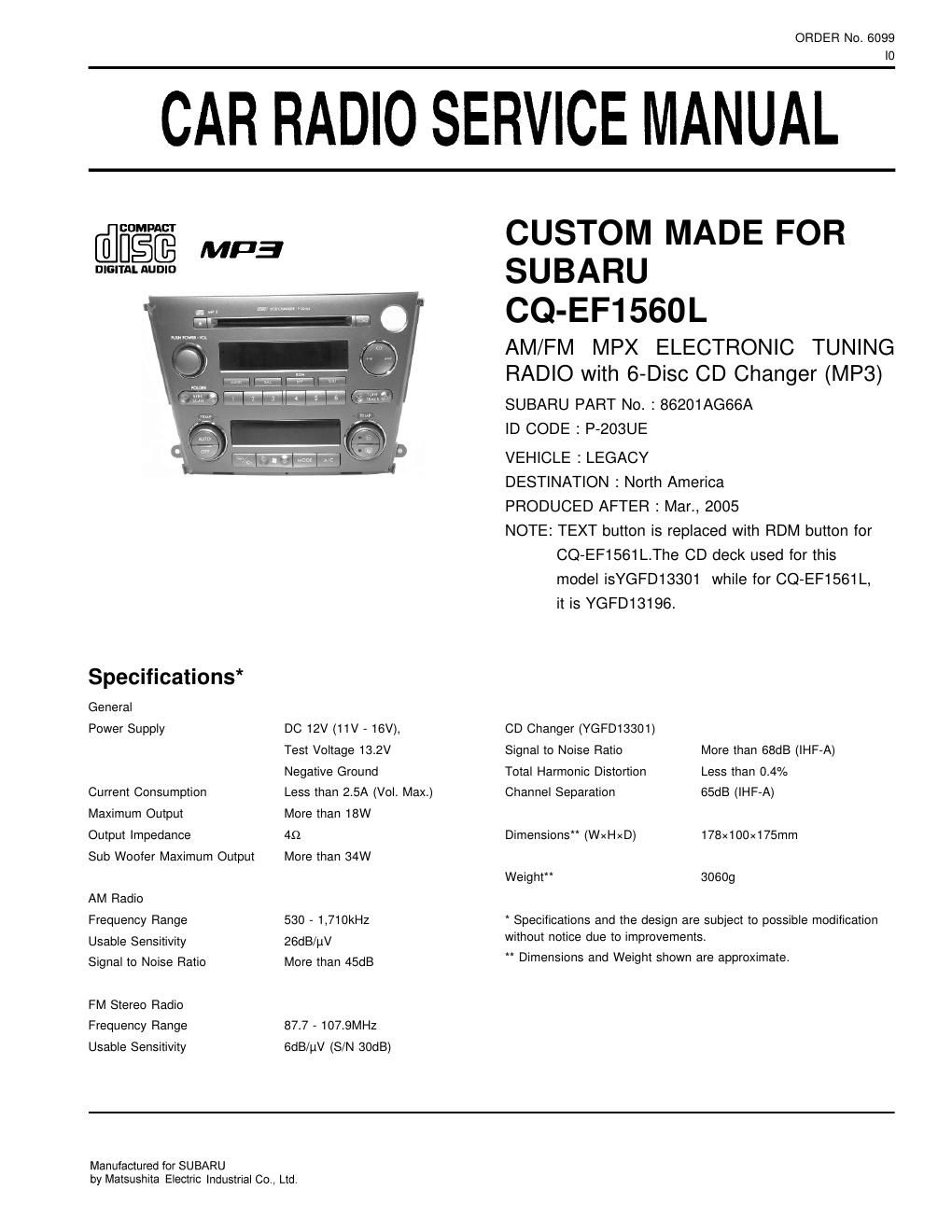

Page 1

ORDER NO. 6099
IO

CAR RADIO SERVICE MANUAL

[flfigfi was

DIGITAL AUDIO

fir; 32:12:12

Specifications*
General
Power Supply

DC 12V (11V -16V),

Test Voltage 13.2V
Negative Ground

Less than 2.5A (Vol. Max.)
More than 18W

Output Impedance 49

Sub Woofer Maximum Output More than 34W

Current Consumption
Maximum Output

AM Radio
Frequency Range 530 - 1,710kHz
Usable Sensitivity 26dB/uv

Signal to Noise Ratio More than 45dB
FM Stereo Radio
Frequency Range 87.7 - 107.9MHz

Usable Sensitivity SdB/uV (S/N SOdB)

CUSTOM MADE FOR
SUBARU
CQ-EF1560L

AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer (MP3)

SUBARU PART NO. : 86201AG66A
ID CODE : P-203UE

VEHICLE : LEGACY

DESTINATION : North America

PRODUCED AFTER : Mar., 2005

NOTE: TEXT button is replaced with RDM button for
CQ»EF1561L.The CD deck used for this
model isYGFD13301 while for CQ-EF1561L,
it is YGFD13196.

CD Changer (YGFD13801)
Signal to Noise Ratio More than 68dB (lHF-A)

Total Harmonic Distortion Less than 0.4%

Channel Separation 65dB (lHF-A)
Dimensions (WxHxD) 178x100x175mm
Weight" 30609

Specifications and the design are subject to possible modification
without notice due to improvements.

" Dimensions and Weight shown are approximate.

Manufactured for SUBARU
by Matsushita Electric Industrial Co , Ltd.

Page 2

CUSTOM MADE FOR SUBARU / CG-EFISGDL

CONTENTS
Page Page
1 FEATURES ------------------------------------------------------------------------------ 2 7 PACKAGE AND Ic BLOCK DIAGRAM ------------------------------------- 7
2 SYSTEM BLOCK DIAGRAM (For Testing) 8 REPLACEMENT PARTS LIST ---10
3 REAR/FRONT VIEw AND CONNECTORS-m 9 EXPLODED VIEw (Unit) -------- ---17

4 WIRING CONNECTION ------------------------------------------------------------ 4 1o WIRING DIAGRAM ----------------------------------------------------------------- 1s
5 BLOCK DIAGRAM ------------ 11 SCHEMATIC DIAGRAM-1 ...23
e TERMINALS DESCRIPTION- 12 SCHEMATIC DIAGRAM-2 ---25

1 FEATURES

- Sub-woofer 1ch amp output 60W (Max)

~ PLL (Phase Locked Loop) synthesized tuning. - Speaker system : 4SP+2TW+1SubWoofer.
~ 18-station preset (12-FM, 6-AM) - 6-disc CD changer (in dash board).

- Scan Tuning. - MP3 Playback from CD-R/CD-RW.

~ Adjustable VOL, BAS, MID, TRE, FAD and BAL. - ACC OFF Loading is possible.

- BEEP sound output (at Preset, All Loading /Eject) - Correspondence auto air conditioner.

- Audio connecting wires check function. - Correspondence Car Navigetion.

- VFD all lighting check function.
~ Fix E0 (212 Premium spec.)
~ Main 4ch amp output 43W (Max)

2 SYSTEM BLOCK DIAGRAM (For Testing)

AM/FM MPX ELECTRONIC
TUNING RADIO
with 6-Disc CD Changer (MP3)
CQ'EF1560L Auto aircon.
(Unit) etc.
CN405
8P |:|ANT101 ANT
CN701 14P
CN402
8.: D D
Onstar
Sub Woofer
CITweeter
DJ SATEL SW
]Front SP
(:ITweeter
lRear SP

-[fl

When this system is tested, this system diagram
is subject to change from the actual vehicle.
