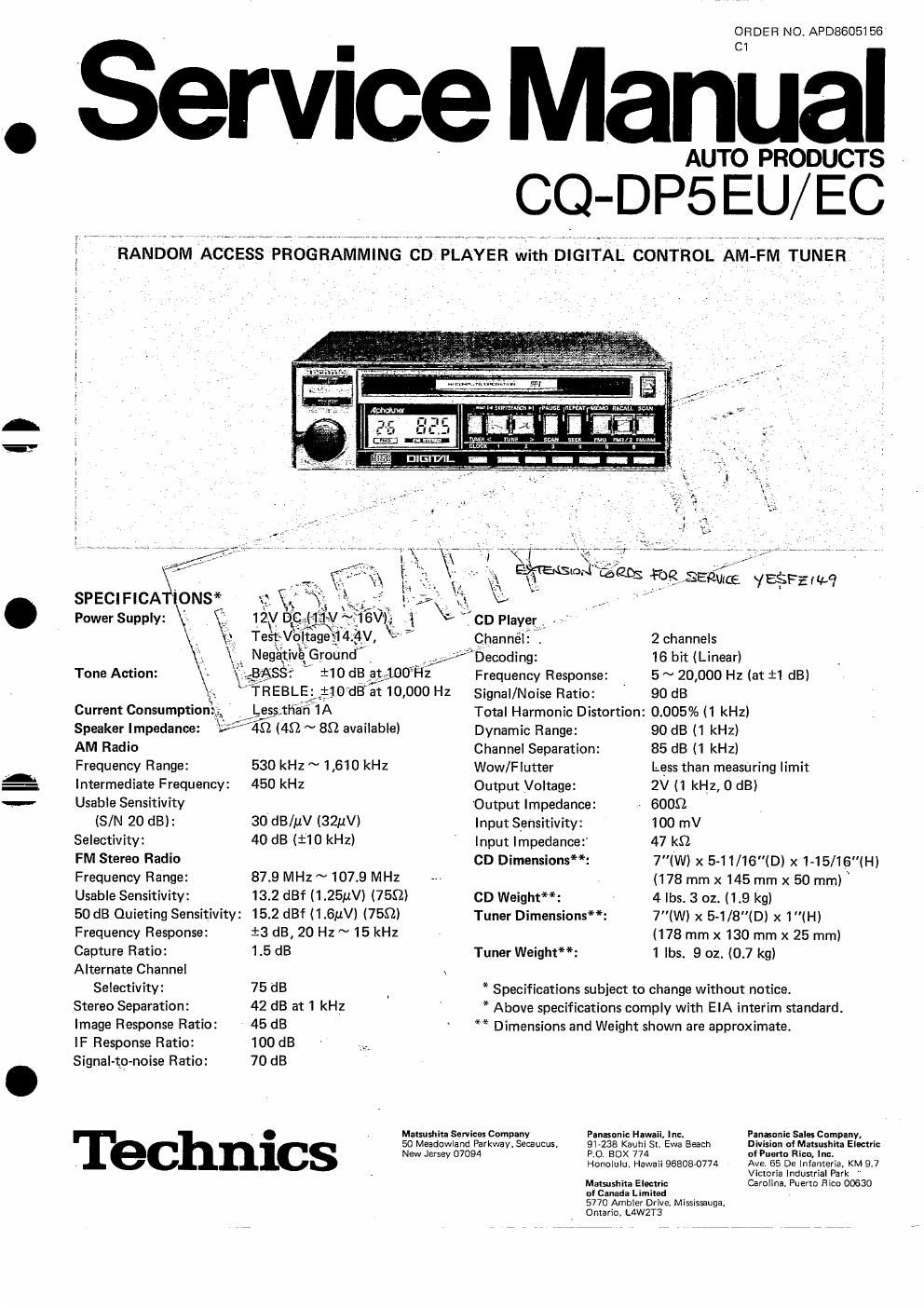

ORDER NO. APD8605156

Service Manual

AUTO PRODUCTS

CQ- DP5EU/EC

r M. W .. _ W , a. ,_ _A._ A_ ,_,.,,_,. ._., 7,. ween. __. -_,,# .V. .W ., e

; RANDOM ACCESS PROGRAMMING CD PLAYER with OlGlTAL CONTROL AM- FM TUNER

and man pi [nus new! m "Luau sun

SHE I Frill

;.

ssex mos mum/m

Power Supply:

\ _ Fl _ 2 channels

\ \' Negative. Ground / Oecoding: 16 bit (Linear)
Tone Action: '. /BASS V +10 dB at 400 Ha Frequency Response: 5 ~ 20,000 HZ (at £1 dB)

' Signal/Noise Ratio: ' 90 dB
current consumptio . ' /,./,. . Total Harmonic Distortion: 0.005% (1 kHz)
Speaker Impedance: 49 (49 ~ 852 available) Dynamic Range: 90 dB (1 kHz)
AM Radio Channel Separation: 85 dB (1 kHz)
Frequency Range: 530 kHZ ~ 1,610 kHZ Wow/Flutter Less than measuring limit
Intermediate Frequency: 450 kHz Output Voltage: 2V (1 kHz, 0 dB)
Usable Sensitivity Output Impedance: , 6009
SM 20 dB): 30 dB/llV (3211Vi Input Sensitivity: 100 mV
Selectivity: 40 dB (:10 kHz) Input Impedancey 47 k9.
FM Stereo Radio CD Dimensions: 7(W) x 5-11/16"(D) x 1-15/16"(Hl
Frequency Range: 87.9 MHz ~ 107.9 MHZ . (178 mm x 145 mm x 50 mm) ..
Usable Sensitivity: 13.2 dBf (l .25/1V) (7552) CD Weight: > 4 lbs. 3 oz. (1.9 kg)
50 dB Quieting Sensitivity: 15.2 dBf (1.8uV) (759) Tuner Dimensions**: 7(W) x 5-1/8"(D) x 1(H)
Frequency Response: i3 dB, 20 Hz ~ 15 kHz (178 mm x 130 mm x 25 mm)
Capture Ratio: 1.5 dB Tuner Weight: 1 lbs. 9 oz. (0.7 kg)
Alternate Channel \
Selectivity: 75 dB . * Specifications subject to change without notice.

Stereo Separation: 42 dB at 1 kHz * Above specifications comply with BA interim standard.
image Response Ratio: 45 dB H Dimensions and Weight shown are approximate.
IF Response Ratio: 100 dB
Signal-to-noise Ratio: 70 dB

Matsushiu Services Company Panasonic Hawaii, Inc. Panasonic Silas Company,

. 50 Meadowiand Parkway, Semucusl 91-238 Kauhi Sl. Ewe Beach Division of Mauushila Electric
New Jersey 07094 P.O, BOX 774 of Puerto Rico, inc.
Honolulu, Hawaii 9680870774 Ave. 65 De Infanleria, KM 9.7
. Vicloria Industrial Park "

Mmslshim Electric Carolina, Puerto Rico 00630
of Caner). Limited ,
5770 Ambler Drive. Missisauga.
Ontario. LAWZTS

Page 2

HOMES

CONTENTS
Page
FEATURES ............................. 1
DIMENTIONS ............................. 1
AUTOMATIC ANTENNA TERMINAL ........... 1
FUSE REPLACEMENT . ................ . . . . . 1
BEFORE USE ............................ 1
OPERATION OF CONTROLS ................. 2
SYSTEM DIAGRAM ........................ 8
COMPOSITION AND WIRING CONNECTION ...... 8
INSTALLATION INSTRUCTIONS .............. 9
IC BLOCK DIAGRAMS ..................... 13
SCHEMATIC DIAGRAM
(RADIO AND ANALOG SW BLOCK) ......... 14
WIRING DIAGRAM
(RADIO AND ANALOG SW BLOCK) ......... 15
SCHEMATIC DIAGRAM
(MAIN,SERVO, Dc-DC, CONTROL BLOCK). . . . 16
WIRING DIAGRAM
(MAIN,SERVO, DCDC, CONTROL BLOCK) . . .. 17
SCHEMATIC DIAGRAM/WIRING DIAGRAM
(DECK BLOCK) ........................ 18
OPERATION OF LSI ...................... 19
DISASSEMBLY INSTRUCTIONS .............. 20
, ALIGNMENT POINTS ...................... 22
ALIGNMENT INSTRUCTIONS (RADIO BLOCK) . . . 23
ALIGNMENT INSTRUCTIONS (CD BLOCK) ...... 26

REPLACEMENT PART LIST ...... 29, 30, 33, 35 ~ 48

EXPLODED VIEW (CD UNIT) ................ 31
EXPLODED VIEW (TUNER UNIT) ............. 32
EXPLODED VIEW (CD DECK) ............... 34
PACKING PARTS LIST .................... 49

FEATURES

0 Car CD player with built-in auto repeat FM/AM elec-
tronic tuner using high performance FF~i (fine-focus-i
beam) laser pick-Up.

0 Random access function is provided; enables continuous
play back of )5 numbers in the programmed sequence.

0 3 modes of repeating are available using repeat and
memory functions; a single number, all number and
selected numbers.

0 SCAN, RECALL and SEARCH functions are built-in.

0 Disk slot is illuminated green during play back and
changes to orange when playing is stopped.

O The pick-up rnay returns quickly to right position if
the disk happens to skip due to heavy vibration.

0 Tuner may be changed with the disk inserted.

O The double function system has been adopted, one
pushbutton has two different functions: one is for
when used as a radio or the other is for CD player.

DIMENSIONS
I CD Player

AUTOMATIC ANTENNA TERMINAL

Connect the power supply cord for the motor antenna from
the radio to the motor antenna relay.

Do not use the motor antenna without the relay for this
unit (maximum permissible Current: 500 mA).

FUSE REPLACEMENT
Be sure to use a fuse of specified rating (3A, IA) when
replacing a blown fuse.

Fuses rated at higher capacity, use of any substitute, or
connection without a fuse may result in a fire hazard or
damage to the unit.

If the replacement fuse fails, Contact your nearest autho-
rized Technics Service Center.

ORDER PART NO.
XBB1C30NR1
and

XBB1C10NR1

BEFORE USE

Before use, make sure to push eject button.

0 In some cases, compact disc mechanism will be locked
by the shock during transportation.
After wiring connections and installation are done,
push eject button and disc player will be ready for use.

0 Do not insert disc until all wiring connections are done.
This models is equipped with an electronic eject system.
Disc will not eject when power is not on.

'.
