Panasonic cq dp 383 w service manual

This is the 33 pages manual for panasonic cq dp 383 w service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 33

Extracted text from panasonic cq dp 383 w service manual (Ocr-read)

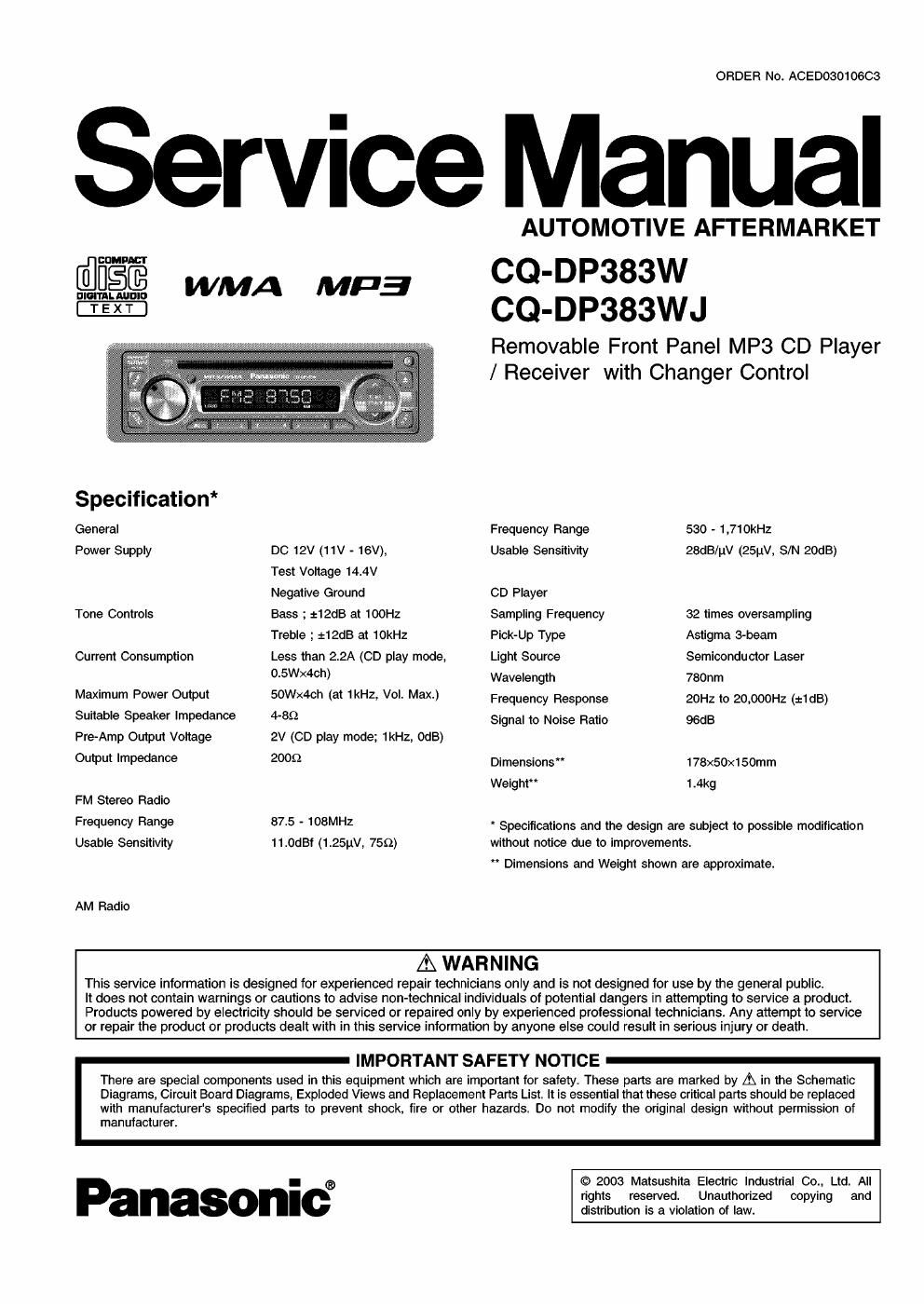

Page 1

ORDER No. ACED030106C3

Service Manual

DIGITAL AUDIO

WMA MP3

Specification*
General
Power Supply

Tone Controls

Current Consumption

Maximum Power Output
Suitable Speaker Impedance
Pre-Amp Output Voltage
Output Impedance

FM Stereo Radio

Frequency Range
Usable Sensitivity

AM Radio

D012V(11V -16V),
Test Voltage 14.4V
Negative Ground

Bass ; 212dB at 100Hz
Treble ; :12dB at 10kHz

Less than 2.2A (CD play mode,
0.5WX4Ch)

50Wx4ch (at 1kHz, Vol. Max.)
4-89
2V (CD play mode; ikHz, OdB)
2009

87.5 - 108MHz
11.0dBf (1 .25uV, 750)

AUTOMOTIVE AFTERMARKET

CQ-DP383W
CQ-DP383WJ

Removable Front Panel MP3 CD Player
/ Receiver with Changer Control

530 - 1,710kHz
28dB/uV (25w, S/N 20:13)

Frequency Range
Usable Sensitivity

CD Player

Sampling Frequency 32 times oversampling
Pick-Up Type Astigma 3-beam

Light Source Semiconductor Laser
Wavelength 780nm

Frequency Response 20Hz to 20.000Hz (:1dB)
Signal to Noise Ratio 96dB

Dimensions 176x50x150mm
Weight 1.4kg

* Specifications and the design are subject to possible modification
without notice due to improvements.

** Dimensions and Weight shown are approximate.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manufacturers specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

Panasonid
