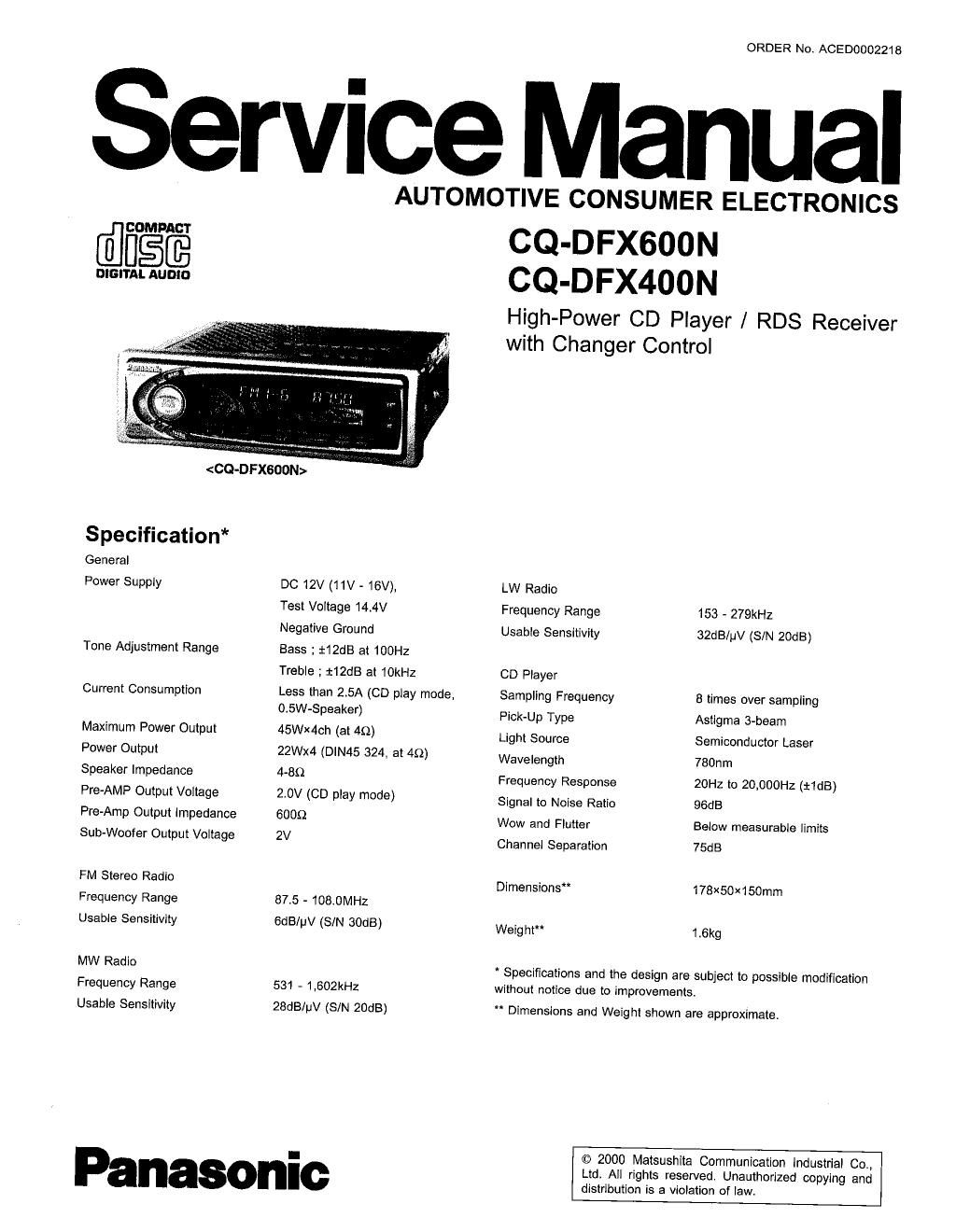

Panasonic cq dfx 600 n service manual

Page 2

cQ-DFXBDON l GG-DFXAIION

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for saiety. These pans are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List, It is essential that these critical parts should be replaced
with manufacturers specltled parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

CONTENTS
Page
1 FEATUERS ................................................................................. 2
2 REPLACEING THE FUSE --2
3 MAINTENANCE

9 TERMINALS DESCRIPTION-
10 PACKAGE AND Ic BLOCK DIAGRAM ----------------------------------- 15
11 REPLACEMENT PARTS LIST -

4 NOTES ------------- 12 EXPLODED VIEW (Unit)

5 DIMENSIONS ------------------------- 13 CD PLAYER PARTS ------

6 OPERATING INSTRUCTIONS 14 EXPLODED VIEW (CD Deck)--

7 WIRING CONNECTION ----------------------------------------------------------- 12 15 WIRING DIAGRAM----

3 BLOCK DIAGRAM ----------------------------------------------------------------- 13 16 SCHEMATIC DIAGRAM

1 FEATU ERS DFXBODN DFX400N

LCD Color Multi Color Blue
Remote Control Supplied Option

- PLL (Phase Locked Loop) synthesized tuning.
- 18-FM, 6-AM presets with preset scan

- RDS (Radio Data System) function.

- Digital servo for reliable CD playback.

- CD changer control function.

2 REPLACEING THE FUSE

Use fuses of the same specified rating (15amps). Using
different substitutes or fuses with higher ratings, or connecting
the unit directly without a fuse, could cause fire or damage to
the stereo unit.

3 MAINTENANCE

Your products is designed and manufactured to ensure a
minimum of maintenance. Use a soft cloth for routine exterior
cleaning. Never use benzine. thinner or other solvents.

4 NOTES

[RADIO BLOCK]

Do not align the AM and FM package blocks. When the
package block is necessary, it will be supplied already aligned
at the factory.

[CD DECK BLOCK]

This model has no servo alignment points because
microcomputer controls the servo circuit.

[OTHER]

This operating instruction manual is for 2 models CQ-DFXGOON
and DFX400N. All illustrations throughout this manual
represent model CQ-DFXGOON unless otherwise specified. The
following table describes the differences between 2 models.

5 DIMENSIONS

w,
