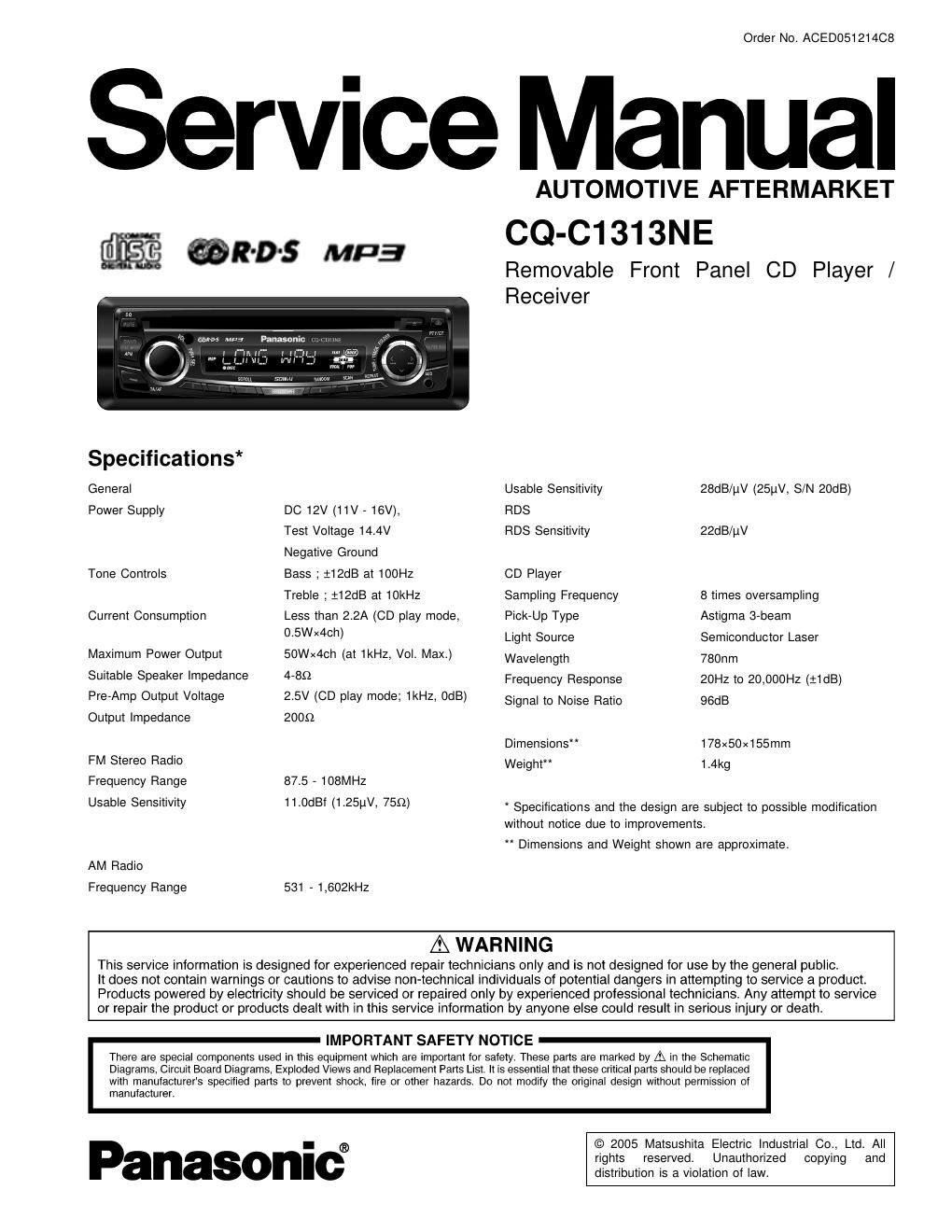

Order No. ACED051214C8

Service Manual

AUTOMOTIVE AFTERMARKET
CQ-C1313NE

Removable Front Panel CD Player /
Receiver

m wk-D-S Mp3

Specifications*
General Usable Sensitivity
D012V(11V-16V), RDS

28dB/pV (25pv, S/N 20:13)
Power Supply

Tone Controls

Current Consumption

Maximum Power Output
Suitable Speaker Impedance
Pre-Amp Output Voltage
Output Impedance

FM Stereo Radio
Frequency Range
Usable Sensitivity

AM Radio
Frequency Range

Test Voltage 14.4V
Negative Ground

Bass ; :12dB at 100Hz
Treble ; 112618 at 10kHz

Less than 2.2A (CD play mode,
0.5Wx4ch)

50Wx4ch (at 1kHz, Vol. Max.)
4-8!)

2.5V (CD play mode; 1kHz, OdB)
2009

37.5 - 108MHz
11.0dBf (1.25uV, 75m

531 - 1,602kHZ

RDS Sensitivity

CD Player

Sampling Frequency
Pick-Up Type

Light Source
Wavelength
Frequency Response
Signal to Noise Ratio

Dimensions"
Weight"

22dB/pV

8 times oversampling
Astigma 3-beam
Semiconductor Laser
780nm

20HZ to 20,000HZ (iidB)
96dB

178x50x155mm
1.4kg

Specifications and the design are subject to possible modification
without notice due to improvements.

" Dimensions and Weight shown are approximate.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams. Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

© 2005 Matsushita Electric Industrial Co., Ltd. All

- ®
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

CG-CISIQNE

CONTENTS

Page
1 ABOUT LEAD FREE SOLDER (PbF) ....................................... 2
2 FEATUERs ...................
3 REPLACEING THE FUSE-
4 MAINTENANCE ----------------------------------------------------------------------- 2
5 NOTES -------------------
6 LASER PRODUCTS
7 DIMENSIONS --------------------------------------------------------------------------- 3

8 WIRING CONNECTION-
9 BLOCK DIAGRAM -----
10 TERMINALS DESCRIPTION ----------------------------------------------------- 5

1 ABOUT LEAD FREE
SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using lead free solder will have a PbF
stamp on the PCB.

Caution :

0 Pb free solder has a higher melting point than standard
solder; Typically the melting point is 50 - 70°F (30 -
40°C) higher. Please use a soldering iron with
temperature control and adjust it to 700 : 20°F (370 i
10°C). In case of using high temperature soldering iron,
please be careful not to heat too long.

0 Pb free solder will tend to splash when heated too high
(about 1100°F/600°C)

- This lead free solder will be used for the products after
serial No. 1,000,001.

2 FEATUERS

- Remote Control.

I 18-FM, 6-AM presets with preset scan
0 Digital servo for reliable CD playback.
- Removable face plate.

3 REPLACEING THE FUSE

Use fuses of the same specified rating (15A). Using different
substitutes or fuses with higher ratings, or connecting the
product directly without a fuse, could cause fire or damage to
the stereo unit.

4 MAINTENANCE

Your products is designed and manufactured to ensure a
minimum of maintenance. Use a dry, a soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.

5 NOTES

[RADIO BLOCK]

Do not align the AM/FM package block. When the package
block is necessary, it will be supplied already aligned at the

Page
11 PACKAGE AND lc BLOCK DIAGRAM ..................................... g
12 REPLACEMENT PARTS LIST ---13

13 EXPLODED VIEW (Unit) -------- ---1s
14 CD PLAYER MECHANICAL PARTS LIST ------------------------------- 19
15 EXPLODED VIEW (CD Deck)- "-20
16 WIRING DIAGRAM -------------- ...21
17 SCHEMATIC DIAGRAM-1 ...................................................... 25
18 SCHEMATIC DIAGRAM-2 ..................................
19 SCHEMATIC DIAGRAM for printing with A4 size

factory.
[CD DECK BLOCK]

This model has no servo alignment
microcomputer controls the servo circuit.

points because

6 LASER PRODUCTS

CAUTION:
This product utilizes a laser diode with the unit turned "on,
laser radiation is emitted from the pickup lens.
Laser radiation from the pickup lens is safety level, but be
sure the followings:
1. Do not disassemble the optical pickup unit, since
radiation from exposed laser diode is dangerous.
2. Do not adjust the variable resistor on the pickup unit.
It was already adjusted.
3. Do not look at the focus lens using optical instruments.
4. Recommend not to look at pickup lens for a long time.

DANGER! Invisible laser radiation when open.
Avoid direct exposure to beam.

Deck Ass'y (Upper Side)

Caution

This Product utilizes a laser.

Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
