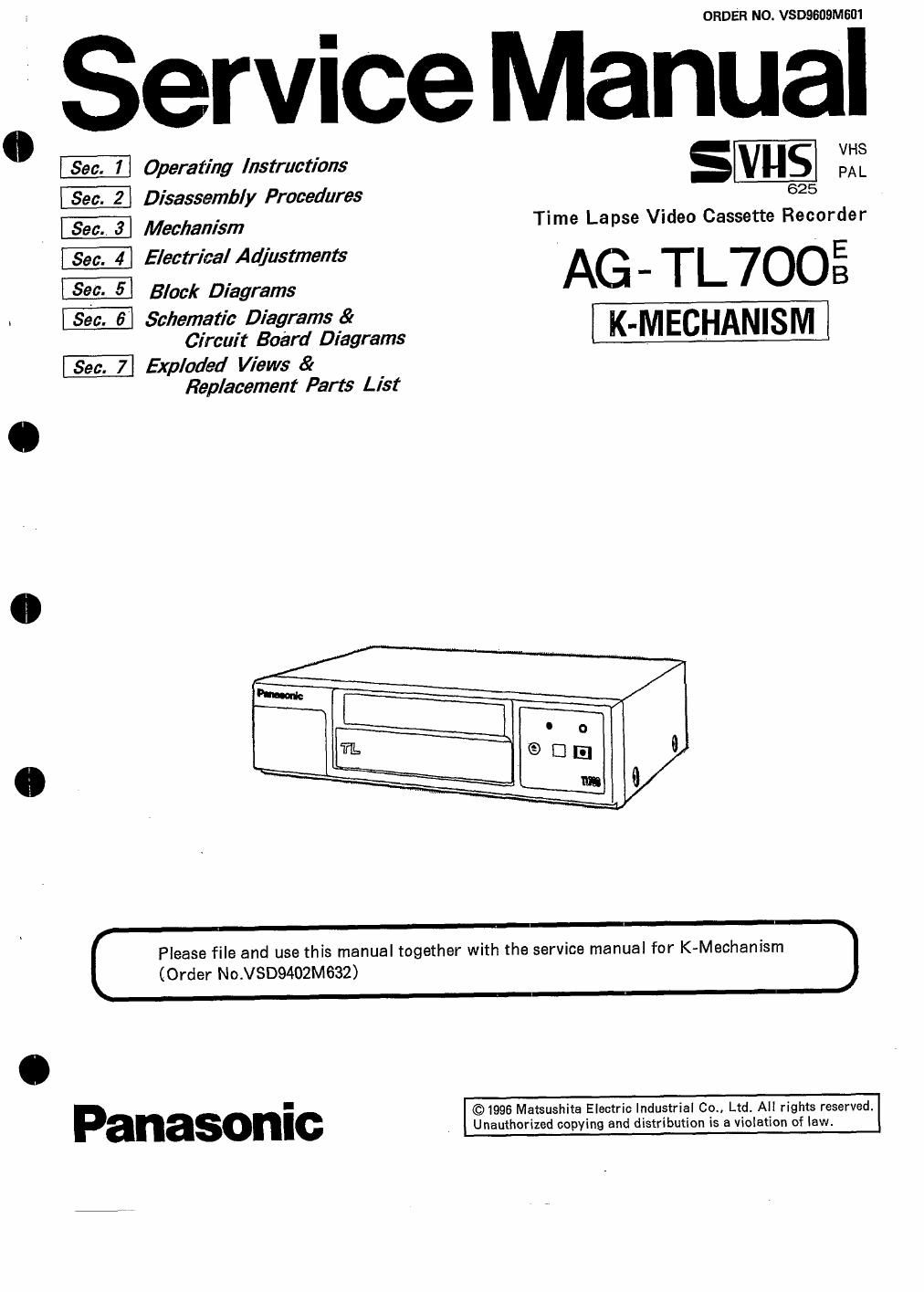

Page 1

ORDER NO. VSD9609M601

Service Manual

_ec. 1 Operating Instructions
Disassembly Pracedures
Mechanism
Electrical Adjustments

Bloc/r Diagrams

Schematic Diagrams &
Circuit Board Diagrams

Exploded Views &

Replacement Parts List

SVVI'IS PAL

625
Time Lapse Video Cassette Recorder

AG - TL7OOE

K-MECHANISM

[ Please file and use this manual together with the service manual for K-Mechanism J

(Order No.VSD9402M632)

Panasonic

©1996 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law,

Page 2

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advice non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service manual by anyone else could result in serious injury or death,

INTRODUCTION

This Service Manual contains the technical information which service personnel to
understand and service the Panasonic S-VHS Time Lapse Recorder model AG-TL700.

Please use the this service manual together with the Service Manual for mechanical
adjustments and maintenance procedures of K-Mechanism (Order No. VSDQ402M632).

Specifications

Power Source:
Power Consumption:

220 - 240 V AC, 50 - 60 Hz
20 W

General
Operating Temperature:
Operating Humidity:

5°C to 40°C
35% to 80%

Dimensions: 430(W) x 100(H) x 2905(D) mm

Weight: Approx, 4.7 kg

Video Recording System: 4 rotary heads, Azimuth recording system. VHS/S-VHS lormats
Tape Speed: 23.39 mm/s (3H mode)

Tape Format:
Recording Time:
FF/REW Time:

Video
Television System:

Modulation System:

S-VHSNHS tape
3/Li2/L24/24/43/72/96/120/170 hours
Approx. 3 min. (with HBO-minute tape)

CCiR Standard (625 lines, 50 fields)

PAL colour signal

Luminance; Frequency modulation recording

Colour signal; Converted subcarrier phase shift recording

S-VIDEO lnputl4F): Y; 1. OVp-p, 75 ohms unbalanced

C; 0 3Vp~p (burst) 75 ohms unbalanced
Video Input (BNO): 1 OVp- p, 75 ohms, unbalanced
S-VIDEO Output (4P): Y; 1 .OVp-p, 75 ohms, unbalanced

C; 0 3Vp-p (burst), 75 ohms unbalanced

Video Output (BNC):
Horizontal Resolution:

SIN:

Audio

LIne Input (Phono):
Mic Input (3 mm):
Line Output (Phone):
Track:

1 .OVp-p 75 ohms, unbaianced
B/W mode; 320 lines (VHS)
400 lines (S-VHS)
Colour mode; 240 lines (VH5)
400 lines (S-VHS)
B/W mode; 45 dB (3H mode. VHSIS~VHS)
Colorur mode; 45 dB (3H mode, VHSIS~VHS)

-1 0 dBv, 47 kohms. unbalanced
-60 dBv. 600 ohms. unbalanced
-8 dBv, 1 kohm. unbalanced

1 track (normal)

Recording/Playback mode: 3H/L12H/L24 mode
Standard accessory
Power Cord: x 1

Weight and dimensions shown are approximate.
Specmcaiions are subject to change Without notice.

Panasonic
