Onkyo Y 7000 Brochure

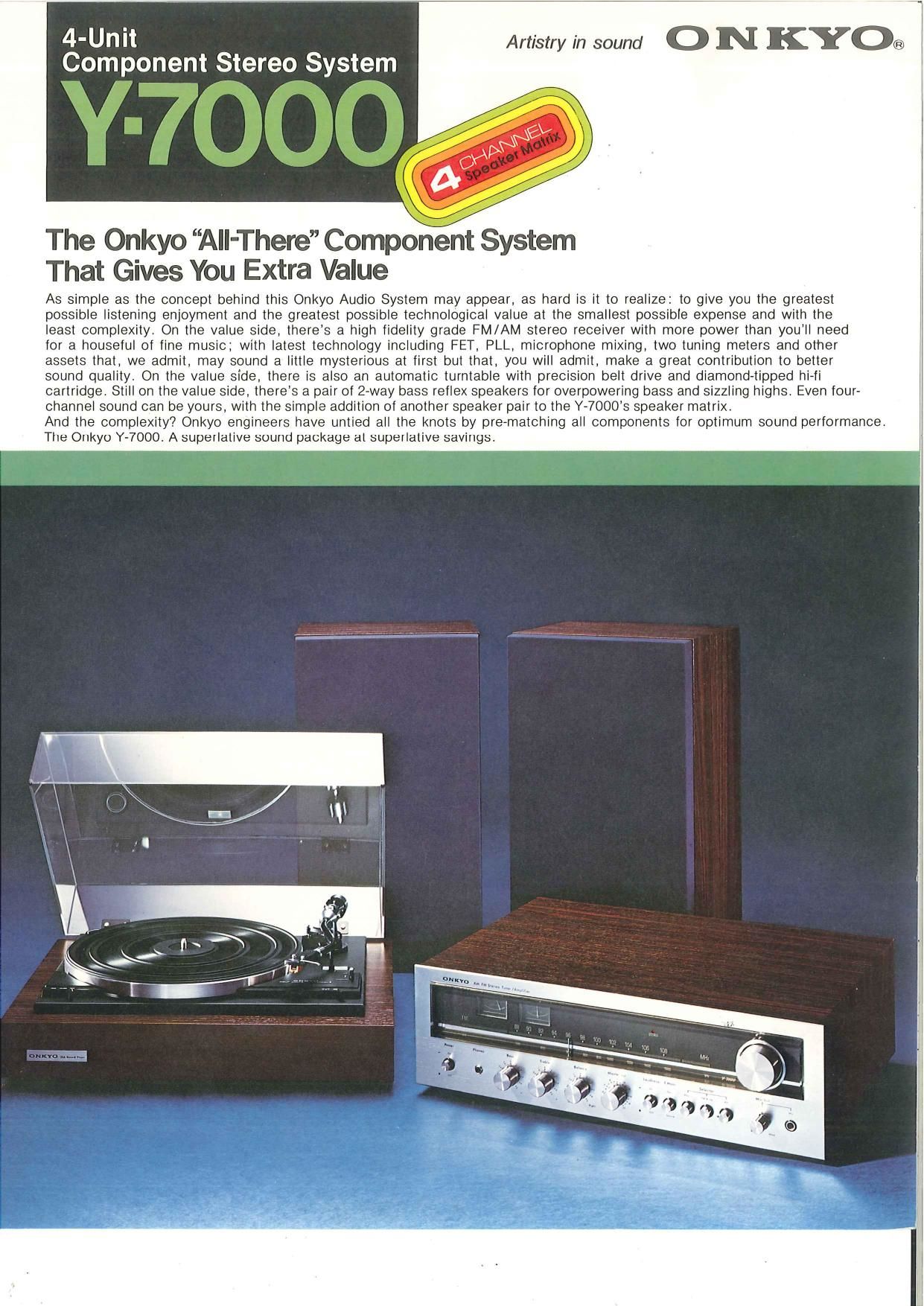

Page 1

4-Unit Artistry in sound 0 N KYO®
Component Stereo System

//_A:\

\ \ , .

The Onkyo All-There Component System
That Gives You Extra Value

As simple as the concept behind this Onkyo Audio System may appear, as hard is it to realize: to give you the greatest
possible listening enjoyment and the greatest possible technological value at the smallest possible expense and with the

least complexity. On the value side, theres a high fidelity grade FM/AM stereo receiver with more power than you'll need

tor a houseful of fine music; with latest technology including FET, PLL, microphone mixing, two tuning meters and other
assets that, we admit, may sound a little mysterious at first but that, you will admit, make a great contribution to better

sound quality. On the value side, there is also an automatic turntable with precision belt drive and diamond-tipped hHi
cartridge. Still on the value side, theres a pair of 2-way bass reflex speakers for overpowering bass and sizzling highs. Even four-
channel sound can be yours, with the simple addition of another speaker pair to the Y-7000's speaker matrix.

And the complexity? Onkyo engineers have untied all the knots by pre-matchlng all components for optimum sound performance.
The Onkyo Y~7000t A superlative sound package at superlative savings.

Page 2

The Onkyo Y-7000

A superlative sound packa

The Receiver

A housolul of sound power Microphone mixing puts you contor-

Delivering a total of 40 watts of sound stage

Plug in a microphone, and youre the
star ~ sing or play along with your
favorite recording artists on records,
FM or tape.

power, this Onkyo receiver can more
than fill a large living room with vibrant.
lifelike music.

Circuit onglnurlng truo to Onkyo
oxcollonco

The tuner section assures optimum FM,
FM stereo and AM reception, thanks to
its advanced engineering with S-element
(FM) ceramic filters and PLL (phase
locked loop) FM stereo decoding. Two
tuning meters - a signal strength
meter for FM and AM and a center-
channel meter for FM only - make quick,
precise tuning a cinch. The FM front
end features a field effect transistor for
high sensitivity and distortion-free
reception,

ONKVD AM 'MSr-uo rm/Awmm 7
//A

road... rum Selulor
e- ' ' " mm. m

M, m". m. mu. an"... Mailer m
. o- i z .r
3 9 3

atmosphere.

Tapo monltor switch for error-tree tapo
recordings

A stereo tape deck - cassette, open
reel or cartridge - can be connected
to the pin jacks or the DIN-type
REC/PB connector, If the deck has
monitor provisions, you can check the
actual recording quality with

Y-7000s monitor switch.

Stereo now, four-channel tomorrow
Add another pair of speakers (optional),
and youre smack in the middle of a 4-
channel ambient sound field. The built»in
speaker matrix circuit of the Y-7000
enhances any (stereo or quad) program
with concert-hallulike "surround sound"

Speaker Matrix Adds 4'Channel Realism

Mk Vol

i...

3@

Max
