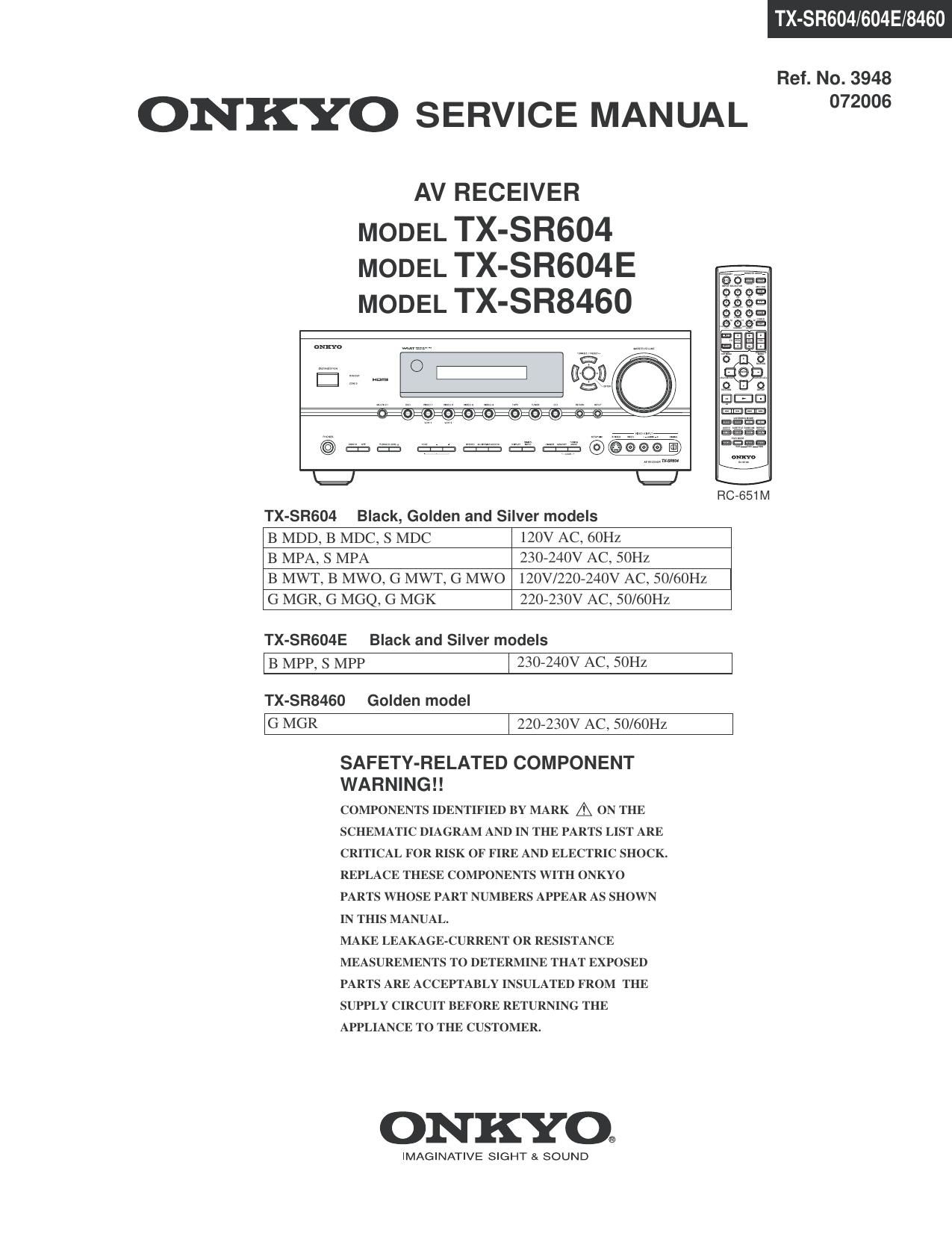

Page 1

TX-SR604/604E/8

Ref. No. 3948

ON KYO SERVICE MANUAL 2"

AV RECEIVER

MODEL TX-SR604
MODEL TX-SR604E
MODEL TX-SR8460

%1 \il
RC-651M
TX-SR604 Black, Golden and Silver models
B MDD, B MDC, S MDC 120V AC, 60Hz
B MPA, S MPA 230-240V AC, 50Hz
B MWT, B MWO, G MWT, G MWO 120V/220-240V AC, 50/60Hz
G MGR, G MGQ, G MGK 220-230V AC, 50/60Hz

TX-SR604E Black and Silver models
3 MPP, s MPP l 230-240v AC, 50112 |

TX-SR8460 Golden model
|G MGR l 220-230v AC, 50/60Hz l

SAFETY-RELATED COMPONENT
WARNING !!

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYOE

IMAGINATIVE SIGHT & SOUND
