Onkyo TXSR 806 Service Manual
This is the 130 pages manual for Onkyo TXSR 806 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 806 Service Manual (Ocr-read)
Page 1

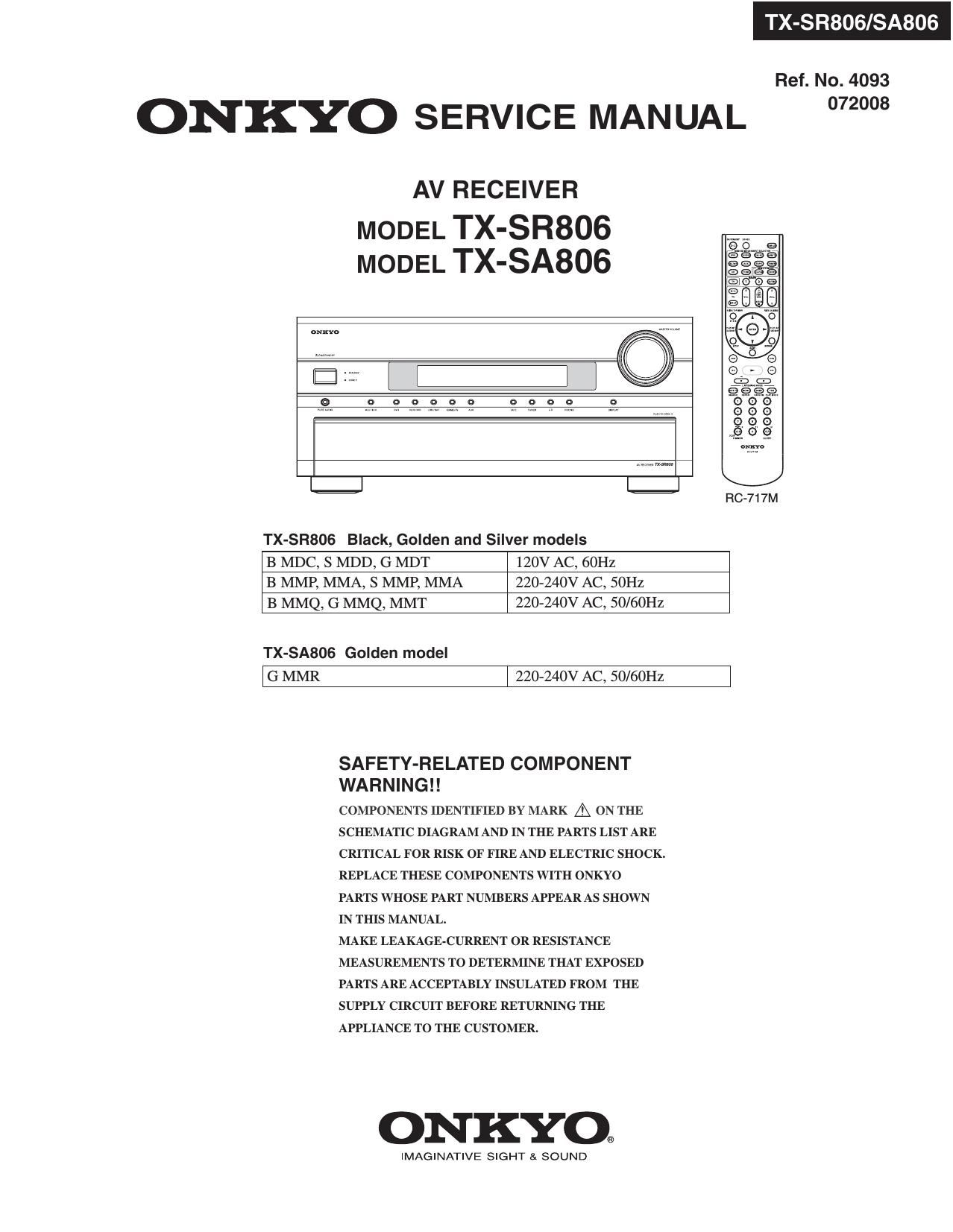

TX-SR806/SA8 6
Ref. No. 4093
ON KYO SERVICE MANUAL °72°°3
AV RECEIVER
MODEL TX-S R806
MODEL TX-SA806
RC-717M
TX-SRSOG Black, Golden and Silver models
B MDC, S MDD, G MDT 120V AC, 601-12
B MMP, MMA, S MMP, MMA 220-240V AC, SOHZ
B MMQ, G MMQ, MMT 220-240V AC, 50/60Hz
TX-SA806 Golden model
I G MMR 220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT SI SOUND
