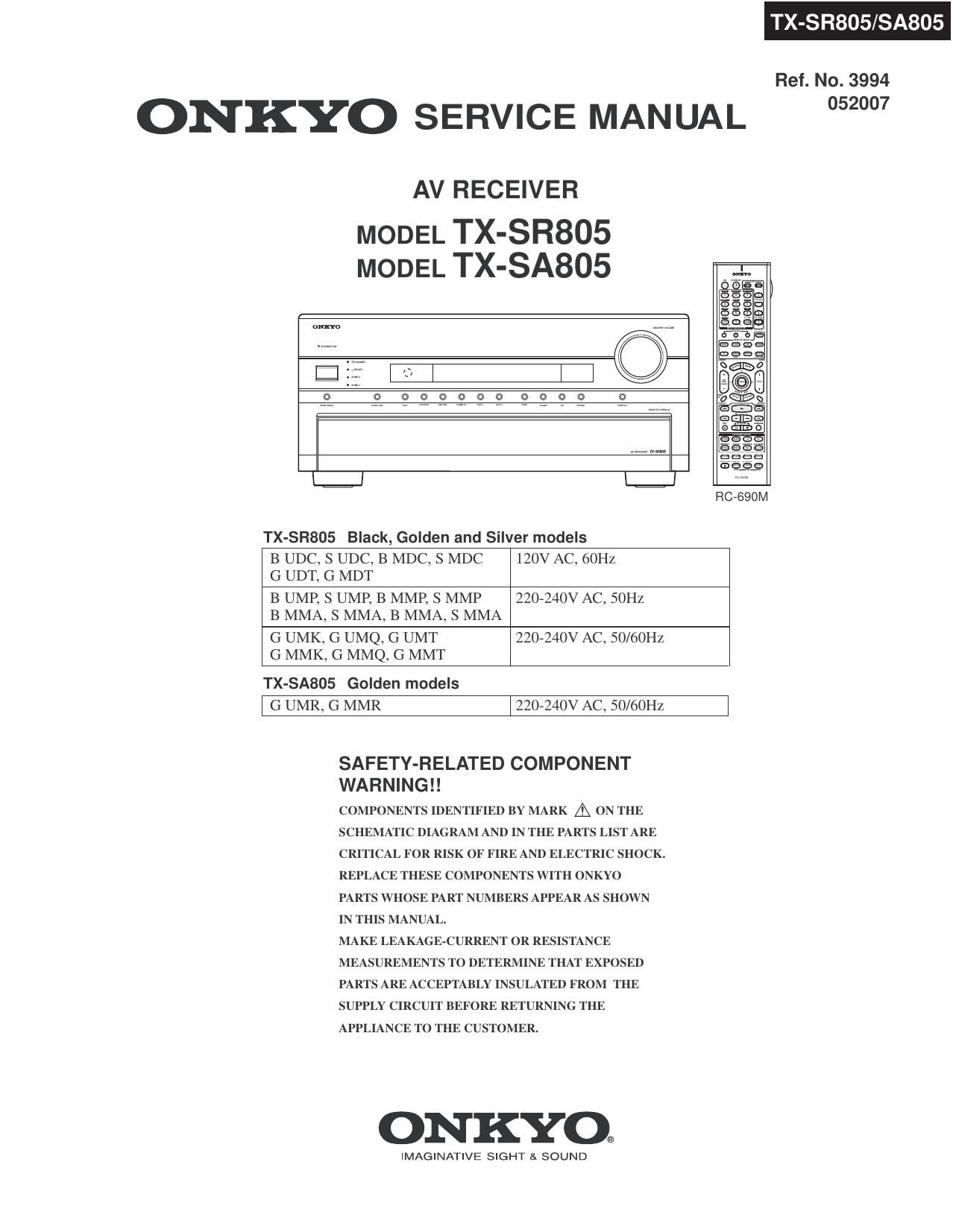

Page 1
T SR80
805
Ref. No. 3994
ON KYO SERVICE MANUAL 52°
AV RECEIVER
MODEL TX-SR805
MODEL TX-SA805
oxunro .W.
TX-SR805 Black, Golden and Silver models
B UDC, S UDC, B MDC, S MDC 120V AC, 60Hz
G UDT, G MDT
B UMP, S UMP, B MMP, S MMP 220-240V AC, 501-11
B MMA, S MMA, B MMA, S MMA
G UMK. G UMQ, G UMT 220.240v AC, 50/601-11
G MMK, G MMQ, G MMT
TX-SA805 Golden models
\ G UMR, G MMR |220-240v AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
