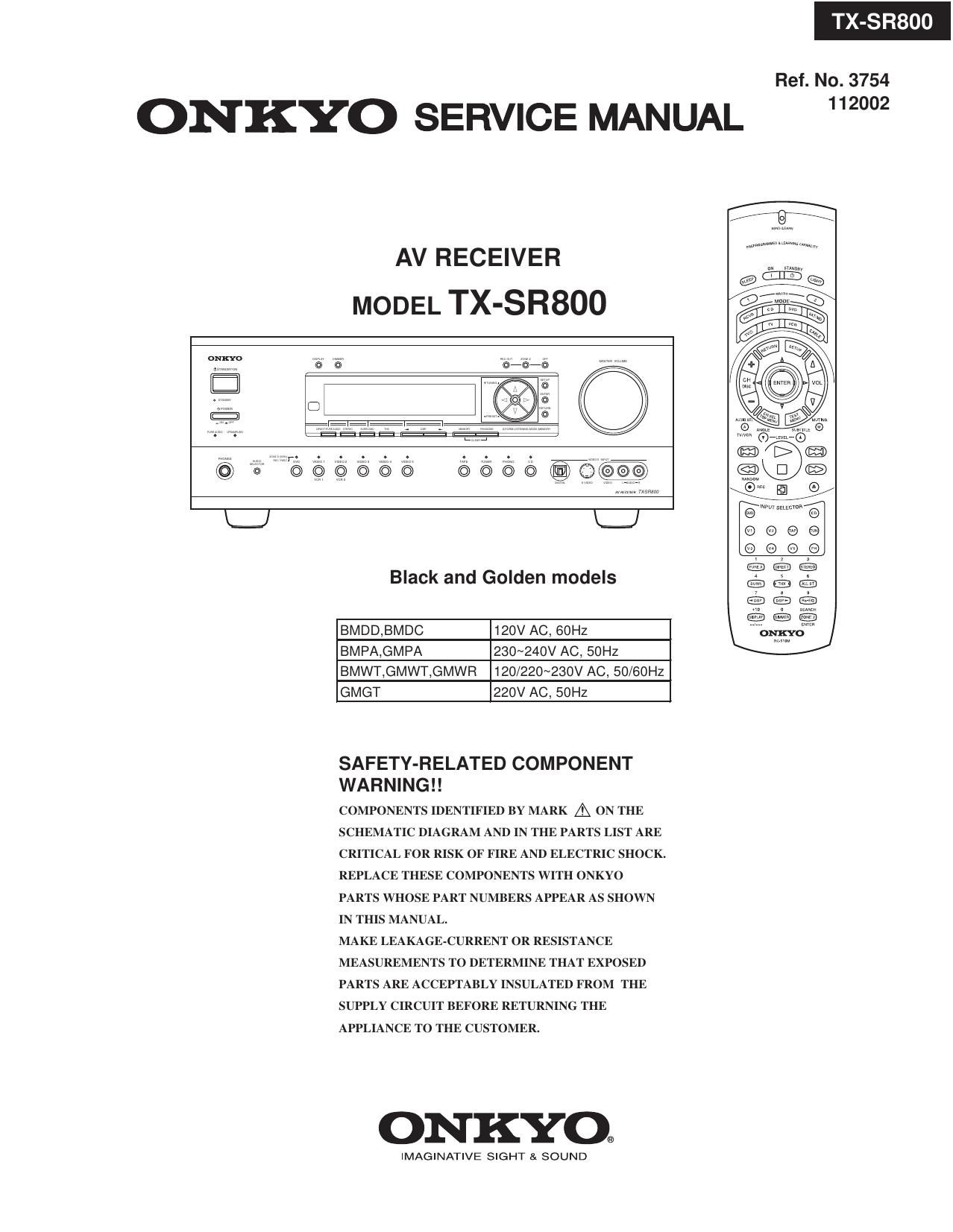

Page 1
T R800
Ref. No. 3754
ONKYO SERVICE MANUAL 2°
AV RECEIVER
MODEL TX-SR800
@ab@§¢jb©© ©©6©
L_J
Black and Golden models
BMDDBMDC 120V AC, 60HZ
BMPA.GMPA 230~240V AC, 50HZ
BMWT,GMWT,GMWR 120/220~230V AC. 50/60HZ
GMGT 220V AC, 50Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
