Onkyo TXSR 707 Service Manual

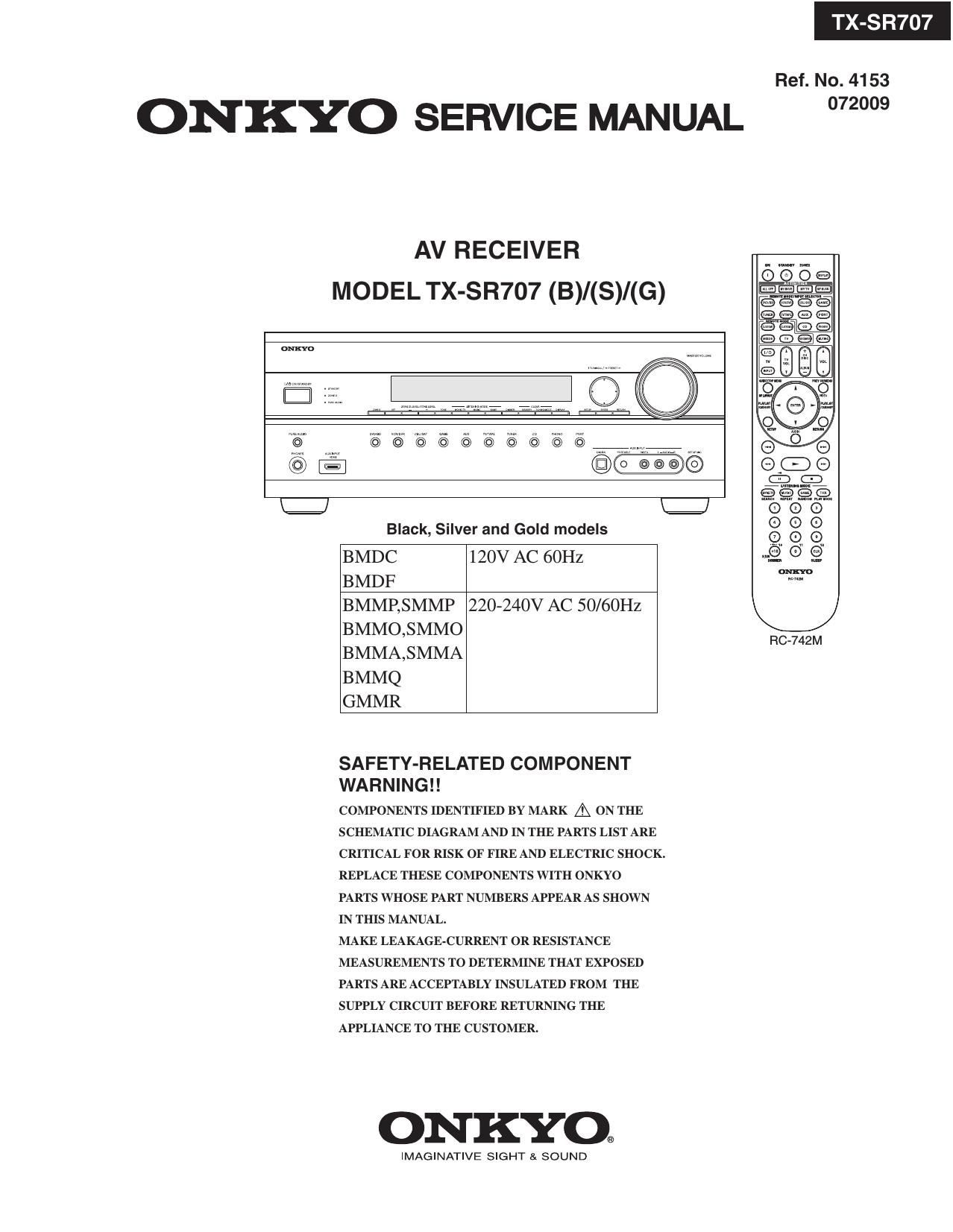

Page 1

TX-S R707

Ref. No. 4153

ONKYO SERVICE MANUAL °72°°9

AV RECEIVER
MODEL TX-SR707 (B)/(S)/(G)

Black, Silver and Gold models

BMDC 120V AC 60Hz
BMDF
BMMRSMMP 220-240V AC 50/60Hz
BMMO,SMMO
BMMA,SMMA
BMMQ

GMMR

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT SI SOUND
