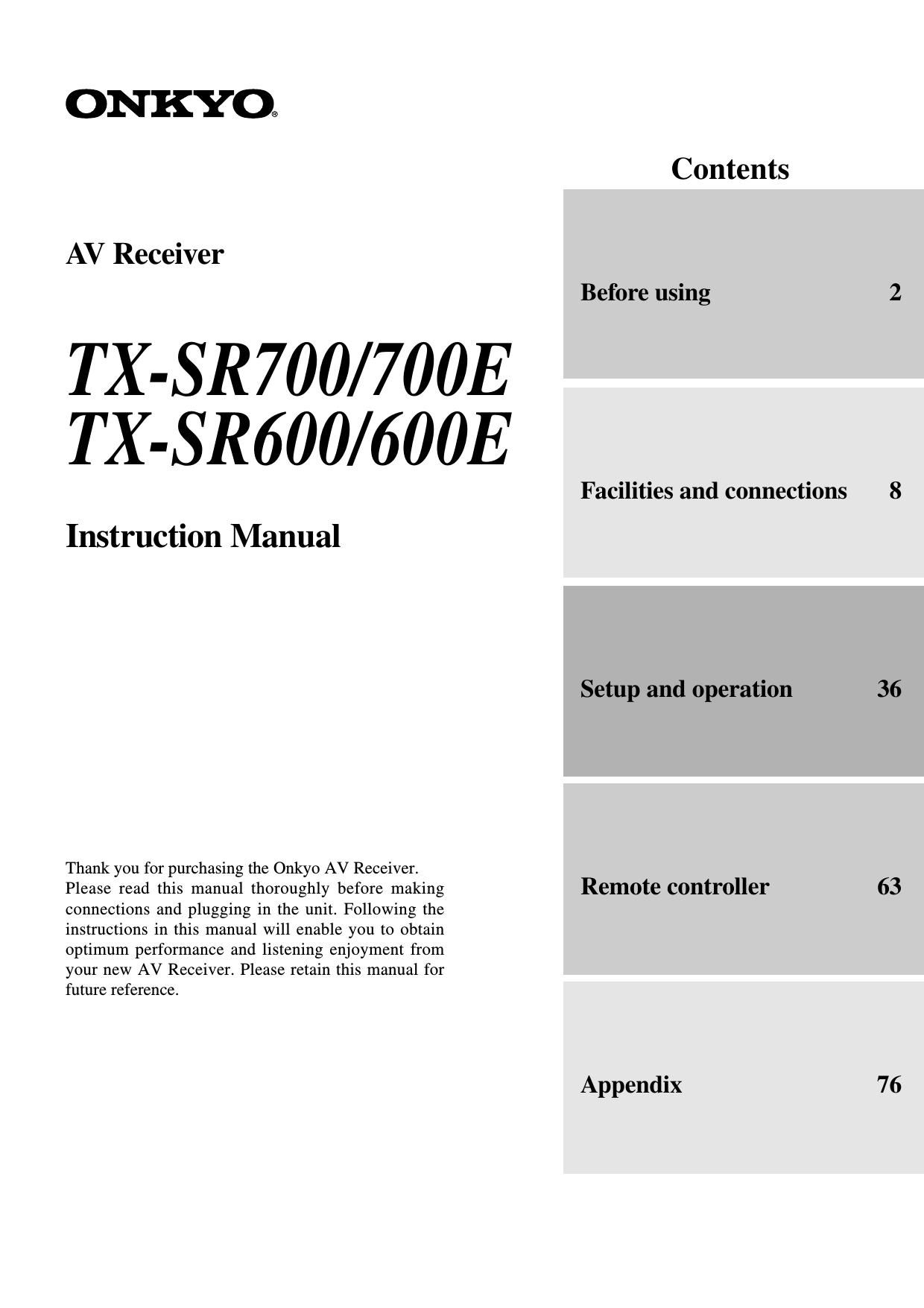

Onkyo TXSR 700 Owners Manual
This is the 80 pages manual for Onkyo TXSR 700 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 700 Owners Manual (Ocr-read)
Page 1
2 1.Read Instructions – All the safety and operating instructions should be read before the appliance is operated. 2.Retain Instructions – The safety and operating instructions should be retained for future reference. 3.Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to. 4.Follow Instructions – All operating and use instructions should be followed. 5.Cleaning – Unplug the appliance from the wall outlet before cleaning. The appliance should be cleaned only as recom- mended by the manufacturer. 6.Attachments – Do not use attachments not recommended by the appliance manufacturer as they may cause hazards. 7.Water and Moisture – Do not use the appliance near water –for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8.Accessories – Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufac- turer. 9. An appliance and cart combina- tion should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 10.Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. The appliance should not be placed in a built-in instal- lation such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least 20 cm (8 in.) and an opening behind the appliance. 11.Power Sources – The appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. 12.Grounding or Polarization – The appliance may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.13.Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. 14.Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the appliance, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides in- formation with regard to proper grounding of the mast and sup- porting structure, grounding of the lead-in wire to an antenna- discharge unit, size of grounding conductors, location of an- tenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1. 15.Lightning – For added protection for the appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and discon- nect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges. 16.Power Lines – An outside antenna system should not be lo- cated in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 17.Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 18.Object and Liquid Entry – Never push objects of any kind into the appliance through openings as they may touch danger- ous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance. 19.Servicing – Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous volt- age or other hazards. Refer all servicing to qualified service personnel. 20.Damage Requiring Service – Unplug the appliance form the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the appliance, C. If the appliance has been exposed to rain or water, D. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper ad- justment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation, E. If the appliance has been dropped or damaged in any way, and F. When the appliance exhibits a distinct change in perfor- mance – this indicates a need for service. Important Safeguards WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS PORTABLE CART WARNING S3125A
Page 2
3 ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC – NATIONAL ELECTRICAL CODEELECTRIC SERVICE EQUIPMENTGROUND CLAMPANTENNA LEAD IN WIRE S2898A 1. Recording Copyright Recording of copyrighted material for other than personal use is illegal without permission of the copyright holder. 2. AC Fuse The fuse is located inside the chassis and is not user-serviceable. If power does not come on, contact your Onkyo authorized service station. 3. Care From time to time you should wipe the front and rear panels and the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out dry, and wipe off the dirt. Following this, dry immediately with a clean cloth. Do not use rough material, thinners, alcohol or other chemi- cal solvents or cloths since these could damage the finish or remove the panel lettering. 4. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz) written on the rear panel. Worldwide models are equipped with a voltage selector to conform to local power supplies. Be sure to set this switch to match the volt- age of the power supply in your area before plugging in the unit. For British models Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. IMPORTANTThe wires in the mains lead are coloured in accordance with the following code: Blue : Neutral Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the termi- nals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the termi- nal which is marked with the letter L or coloured red. IMPORTANTA 5 ampere fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amperes and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DIS- POSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMPERE SOCKET. If in any doubt, consult a qualified electrician. Precautions For U.S. models Note to CATV system installer: This reminder is provided to call the CATV system installers at- tention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. FCC Information for User CAUTION:The user changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa- tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. For Canadian models NOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. Modèle pour les Canadien REMARQUE: CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CON-FORME À LA NORME NMB-003 DU CANADA. Sur les modèles dont la fiche est polarisée: ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND. 21.Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 22.Safety Check – Upon completion of any service or repairs to the appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operation condition. 23.Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 24.Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appli- ances (including amplifiers) that produce heat. 25.Liquid Hazards – The appliance shall not be exposed to drip- ping or splashing and no objects filled with liquids, such as vases shall be placed on the appliance.FIGURE 1: EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
Page 8
9 Front panel facilities For further operational instructions, see the pages indicated in brackets [ ]. POWER switch (for all models other than USA and Canadian models) [33] Press to turn on and off the main power supply for the TX-SR700/ 700E/600/600E. When the TX-SR700/700E/600/600E is turned on with the POWER switch, the STANDBY indicator lights. -Before turning on the power, check to make sure that all cords are properly connected. -When the power is turned on, a sudden surge of current will occur that may adversely affect the operation of other devices. To prevent this, do not plug the TX-SR700/700E/600/600E into the same circuit used by sensitive equipment, e.g., computers. STANDBY/ON button [33] If pressed with the POWER switch turned on (with the receiver plugged in for US models), the TX-SR700/700E/600/600E turns on and the display lights up. If pressed again, the TX-SR700/700E/600/ 600E returns to the standby state. In the standby state, the display is turned off and the TX-SR700/700E/600/600E cannot be operated. STANDBY indicator [7, 33] Lights when the TX-SR700/700E/600/600E is in the standby state and when a signal is received from the remote controller. DISPLAY button [48] Press to display information about the current input source signal. Each time you press the display button, the screen changes to show you different information concerning the input signal. RT/PTY/TP (European models only) button [43] This button is only available on European models. Press this button to tune into the Radio Data System (RDS) for FM broadcasting. RDS was developed within the European Broadcasting Union (EBU) and is available in most European countries. Each time the button is pressed, the display changes from RT (radio text) to PTY (program type) to TP (traffic program) and then back to RT again. DIMMER button Press to set the brightness of the front display. There are 3 settings available: normal, dark, and very dark. -The brightness of the front display can also be performed using the remote controller. LISTENING MODE buttons [49-51] Press these buttons to select a listening mode for the current input source. Press the DIRECT, STEREO, and SURROUND buttons to select a listening mode directly. Press the DSP button to select any of the possible listening modes for the input source currently selected. Note: During playback of a multichannel source, press the DIRECT button to turn off the tone control and the SURROUND button to turn on the tone control. [48] Front display MEMORY button [41] Press to assign the radio station that you are currently tuned into to a preset channel or press to delete a previously preset station. FM MODE button [40] Press to change the stereo mode from AUTO to MONO and vice versa. Each time this button is pressed, the AUTO indication turns on and off indicating the current mode. If you are listening to an FM radio station in stereo and the sound cuts out or there is a great deal of noise, switch from AUTO to MONO. Remote control sensor [7] AUDIO ADJUST button [57] Press to adjust the sound quality and the listening mode. MENU button [36] Press to enter the Setup Menu. The OSD Menu will appear on the TV monitor as well as the front display on the TX-SR700/700E/600/ 600E. RETURN button [36] When in the Setup Menu, press to go back one level. If pressed while at the Main Menu, you will exit the Setup Menu. TUNING / , PRESET / , cursor ( / // ) buttons [36, 40, 41] To tune into a radio station, press the TUNING / buttons. The tuner frequency is displayed in the front display and it can be changed in 50-kHz increments for FM and 10-kHz (or 9-kHz) increments for AM. When FM is selected as the input source, you can hold down either the TUNING or button and then release it to activate the auto- search feature. It will search for a station in the direction of the button you pressed and stop when it tunes into one. When navigating through the menu settings, these buttons move the cursor up or down (or change the highlighted item). To select a radio station that was stored using the MEMORY button, press the PRESET / buttons. When navigating through the menu settings, these buttons select the value or item that you selected with the TUNING / buttons. When you press the MENU button, the TUNING and PRESET buttons become cursor buttons to be used for Setup Menu operations. ENTER button [36] Press to display the screen for the item that is selected in the Setup Menu. MASTER VOLUME dial [44, 45] TX-SR600/600E: Use to control the volume. TX-SR700/700E: Use to control the volume in the main zone. The volume for the remote zone (Zone 2) is independent. VIDEO 4 INPUT terminals [21, 28] For connecting a video camera or game device. The VIDEO 4 INPUT (DIGITAL) jack is provided with a protective cap. When using this jack, remove the protective cap and keep it safely. When not using this jack, replace the protective cap. Protective cap
Page 38
39 Configuring the speakers (1) Remember the volume level of this noise and then press the cursor button. The TX-SR700/700E/600/600E will now emit the pink noise from the center speaker. (2) Using the and cursor buttons, adjust the volume level of the noise from the center speaker so that it is at the same level as that that was emitted from the front left speaker. (3) Press the cursor button again. The TX-SR700/700E/600/600E will now emit the pink noise from the front right speaker. Use the and cursor buttons to adjust the volume of the noise from the front left speaker so that it is the same level as that that was emitted from the center speaker. (4) Use the cursor button to select other speakers and adjust the volumes until all speakers are adjusted to the same level. The pink noise level can be adjusted to anywhere between –12 and +12 decibels for all speakers in 1-decibel increments. Press the RETURN button to return to the main menu. Press the MENU button on the front panel or SETUP button on the remote controller button to exit the Setup menu. Using the remote controller 1. Press the TEST button. You will hear a pink noise will be emitted from the front left speaker. (1) Remember the volume level of this noise and then press the CH SEL button. The TX-SR700/700E/600/600E will now emit the pink noise from the center speaker. (2) Using the LEVEL / buttons, adjust the volume level of the noise from the center speaker so that it is at the same level as that that was emitted from the front left speaker. (3) Press the CH SEL button again. The TX-SR700/700E/600/600E will now emit the pink noise from the front right speaker. Use the LEVEL / buttons to adjust the volume of the noise from the front left speaker so that it is the same level as that that was emitted from the center speaker. (4) Use the CH SEL button to select other speakers and adjust the volumes until all speakers are adjusted to the same level. The pink noise level can be adjusted to anywhere between –12 and +12 decibels for all speakers in 1-decibel increments. 2. Press the TEST button to complete the procedure. Buttons on remote controllerButtons on TX- SR700/700E/600/600E SETUP (upper edge of ENTER button) (lower edge of ENTER button) (left edge of ENTER button) (right edge of ENTER button) ENTER RETURNMENU UP DOWN LEFT RIGHT ENTER RETURN Displaying the Main Menu and exiting the menu Selecting a menu or menu item Setting the value Selecting the menu Returning to the previous screen Buttons used for navigating through the menus You can change settings in the Setup Menu using the buttons on the front panel and on the remote controller. The buttons on the remote controller correspond to those on the TX- SR700/700E/600/600E as shown below.
Page 42
43 Listening to RDS broadcasts Displaying Radio Text (RT) If the station you are currently tuned into is broadcasting RT signals, they will be displayed in the front display of the TX-SR700E/600E. If the station does not, this function will be ignored. 1. To display the radio text, press the RT/PTY/TP button once. -If the station you are currently listening to is not an RDS station, only the frequency of the station will appear. -If Waiting appears on the display, more time is required to receive the RT information. When the information is received, the characters will scroll across the front display. -If No Text Data appears on the display, RT information is not available. -The display shows the frequency for 3 seconds and returns to program service name. Performing a PTY scan 1. Press the TUNER input source button and select the FM input source. 2. Press the RT/PTY/TP button twice. The current program type appears on the display. 3. Using the / buttons, select the PTY program type you desire. 4. Press the ENTER button. The TX-SR700E/600E will scan until it reaches a station of the program type you selected. It will then stop briefly at that station before continuing on until it reaches the next station. Pressing the ENTER button stops the PTY scan at that point. If you press the RT/PTY/TP while NONE is displayed, PTY ? will appear. In this case, return to step 3. 5. Press the ENTER button when it reaches the station to which you want to listen. Not Found will appear when no RDS signal is being received from the station. Performing a TP scan 1. Press the TUNER input source button and select the FM input source. 2. Press the RT/PTY/TP button three times. [TP] will appear if the current station is broadcasting TP signals. This station will periodically broadcast traffic information. To find a different station, proceed to the next step. Also, if TP is displayed, proceed to the next step. 3. Press the ENTER button. The TX-SR700E/600E will scan until it reaches a station broadcasting traffic information. If Not Found appears on the display, a TP station cannot be located. RT/PTY/TP TUNER PRESET / ENTER
Page 47
48 Using the tone control: To make bass and treble adjustment work for multichannel sources, you must first set the tone control to On. To turn on the tone control: 1. Press the SURROUND button (or SURR button on the remote controller). Tone On appears on the display and the tone control is turned on. 2. Press the AUDIO ADJUST button and then the and cursor buttons to select Bass (or Treble). 3. Press the and cursor buttons to set the desired level. To turn off the tone control: Press the DIRECT button. Tone Off appears on the display and the tone control is turned off. Notes: -When you play back multichannel sources, you can select the Pure Audio mode by pressing the PURE AUDIO button. To exit the Pure Audio mode, press the DIRECT or SURROUND button (TX-SR700/700E only). -If you change the speaker levels in step 4 above, these new levels for multichannel sources will have no effect on the settings at Level Calibration. Selecting an Audio Component TX-SR700/700E/600/600E Remote controller TX-SR700/700E/600/600E Remote controller -Be aware that the main volume display on the front panel will differ if the speaker volume of even one speaker is changed from 0 decibels. In other words, if all the speaker levels are set to 0 decibels and you increase the main volume, the display will rise to 98, 99, and then MAX. If you now change the level of one speaker to +5 decibels and you increase the main volume, the display will rise to 93, 94, and then MAX. Switching the display While listening to or watching an input source, you can display the information regarding the type of source and signal being input by pressing the DISPLAY button on the TX-SR700/700E/600/600E or the remote controller. When an input source other than FM or AM is selected: * If the input signal does not have a program format, then this will be skipped. When FM or AM is selected as the input source: Temporarily turning off the sound To turn off the sound momentarily, press the MUTING button on the remote controller. The MUTING indicator will flash and the sound from the speakers or headphones will be switched off by the receivers audio muting circuit. Press the MUTING button again to turn the sound back on. Input + volume Program format* Input + Listening mode or Multich FM/AM frequency + Preset no. FM/AM + Listening mode ch Remote controller Flashes Remote controller TX-SR700/700E/600/600E TX-SR700/700E/600/600E Remote controller Remote controller TX-SR700/700E/600/600E
Page 76
77 Troubleshooting guide Stereo indicator lights, but sound is distorted and stereo separation is bad. -Station is too strong. Change to FM indoor antenna (see page 34). -Multiple reflection of the radio waves because of tall buildings or mountains. Use antenna that has better directivity and orient it so distortion is least. Indicators for stereo reception flicker and hiss is heard on FM stations. -Station is too weak. Install an outdoor FM antenna (see page 35). -Stereo FM broadcasts cover only about half the distance of an ordinary broadcast. Change the position or direction of the outdoor antenna (see page 35). No preset station is recalled. -Memory is lost because power has been turned off for a long time. Store all stations again (see page 41). VIDEO and AUDIO Desired picture does not appear. -Improper connection. Check connections. Insert the plugs and connectors completely (see pages 14 to 29). No OSD Menu display. -Improper connection. Check connections (see pages 14 to 29). -OSD Menu is displayed when monitor is connected to VIDEO or S VIDEO of MONITOR OUT. Check connections (see pages 20, 28). Audio and video do not match. -Improper connection. Check connections (see page 14 to 29). Audio is not heard or audio from different source is heard. -Digital Input settings are incorrect. Check settings at Input Setup → Digital Input (see page 53). No picture appears on the TV screen (or monitor). -TV (or monitor) is not set to receive the output signals from the receiver. Set the TV (or monitor) to the receiver input. -Video cable is not connected securely. Check connections (see pages 14 to 29). -Input source is connected to the COMPONENT VIDEO IN connectors. Make sure TV (or monitor) is connected to COMPONENT VIDEO OUT connectors (see pages 20, 28). REMOTE CONTROLLER Front panel controls function but remote controller controls do not. -No batteries in remote controller. Insert batteries (see page 7). -Batteries have worn out. Replace batteries (see page 7). -Remote controller is not pointed at the remote sensor of the TX- SR700/700E/600/600E. Point the remote controller at the remote sensor of the TX- SR700/700E/600/600E (see page 7). -Remote controller is too far from the TX-SR700/700E/600/ 600E. Operate the remote controller within 16 feet (5 meters) (see page 7). -Remote controller is functioning in a different mode Press the RCVR MODE button. OTHER LATE NIGHT function cannot be used. -Playback source is not Dolby Digital encoded. Check that the DOLBY DIGITAL indicator lights up on the display. Desired parameter cannot be set. -Parameter may not be able to be set due to current listening mode. Check settings in Audio Adjust (see pages 57 to 59). Multichannel audio is not output. -The Multichannel setting is set to No. Set the Multichannel setting to Yes at Input Setup → Multichannel (see page 54). -DVD player is not connected to 5.1-channel input jacks. Check connections (see pages 18, 25). Components in remote zone (Zone 2) do not operate properly. (TX-SR700/700E only) -Components are incorrectly connected. Check connections. -Objects are interfering with remote controller signals. Move inferring objects away from path of remote controller signals. Sound is sometimes heard and sometimes not heard with digital sources. -One digital input format has been specified so other digital formats are not played. Select All at Input Setup → Digital Format (see page 54). Noise during playback or skipping of the beginning sounds occurs with DTS sources, PCM sources, and other digital sources. -When All is set for the digital format setting, time is required to change formats when different sources are played. Try specifying the format you are playing at Input Setup → Digital Format (see page 54).
